RLSJ Hydraulic winch for Marine Industry

Short Description:

RELONG provides one-stop customized service according to each client’s different dredging site condictions. Professional design, international welders welding work, professional field service and after-sale service are the foundation of RELONG brand equipment high quality and high reputation. We use the latest technologies in design, simulation and manufacturing to constantly develop our standard dredging equipment. In this way, we make sure that it is as efficient, cost-effective and environmentally friendly as possible.

Dredge winches provide the power and control needed for dependable handling of heavy loads. From positioning barges to pulling rail cars, positioning load-out chutes to hoisting equipment, our winches are working in all areas of marine and bulk handling. These winches can also be designed to raise and lower walkways on ships and off-shore oil rigs.

Send email to us

Product Detail

Product Tags

Product Overview

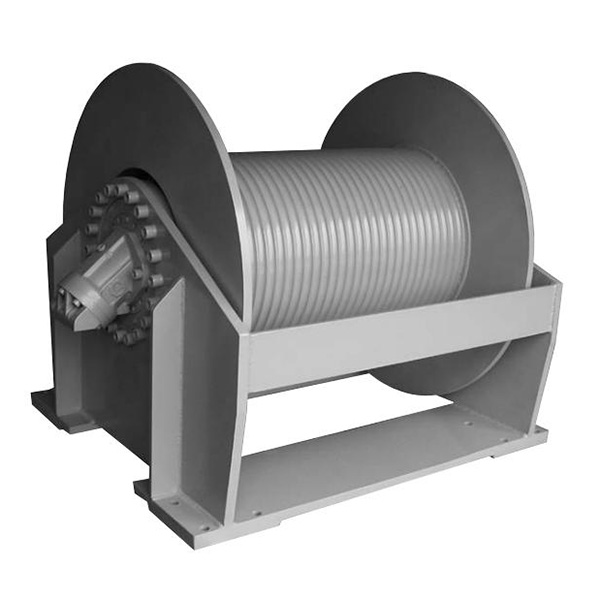

RLSJ Hydraulic Winch
RLSJ hydraulic winch has its own valve group, so that it makes hydraulic system more simple and increases stability of the transmission device. The hydraulic valve group of RLSJ winch solve the problem of empty hook vibrating and fall again during hoisting. So RLSJ winch can lift and put down stably. When starting and working , RLSJ winch is high efficiency, low energy consumption, low noise and beautiful form. Application RLSJ hydraulic winch can be used on following application: Traction equipment of gravity crushing Pedrail crane and ship crane Automobile crane Pipe hoist machine Grab bucket Drilling machine with crushing function.

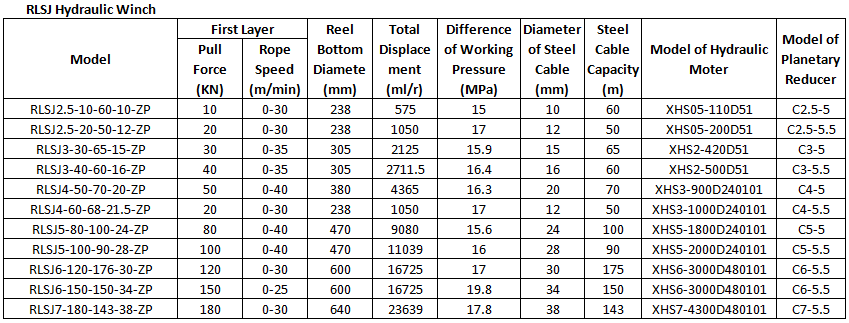

Product Parameter

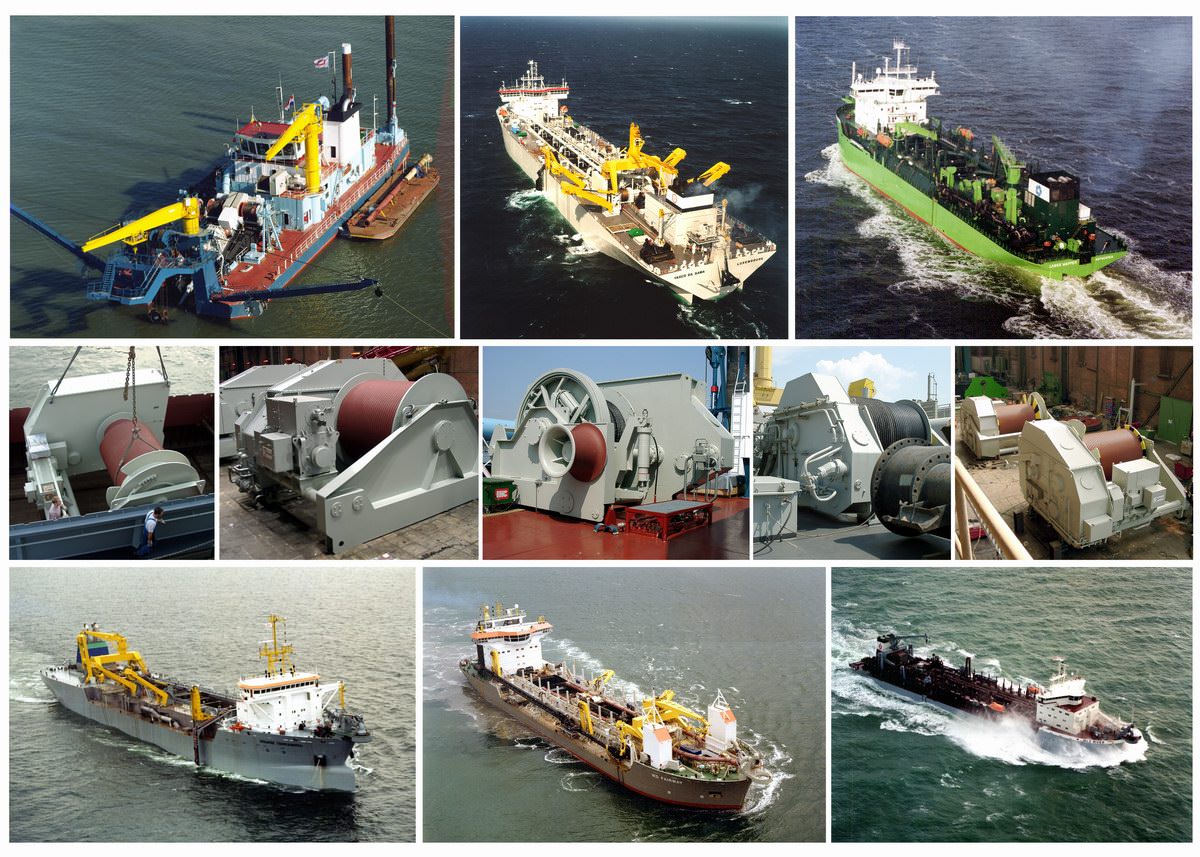

RELONG customizes their winch package to fit any dredger type

- Trailing Suction Hopper Dredgers (TSHD)
- Cutter Suction Dredger
- Grab- and Profile Dredgers
- Backhoe Dredgers

The following winch types are deliverable: For Trailing Suction Hopper Dredgers

Draghead Winch
Intermediate Winch
Trunnion Winch

For Cutter-Dredgers

Ladder Winch
Side-Wire-Winch
Anchor Boom Winch
Anchor Hoisting Winch

For General Application for all Dredgers

Bow Connection Winch
Spud Hoisting Winch
Fairleader

Advantage and Operating

The winches are designed to withstand extreme operational demands 24/7.
All Products|automatic equipment are made with a high performance-spur gear transmission with forced lubrication and running on high-grade roller bearings. The gears are made of high alloy steel, hardened and ground where necessary.
The gear box is a steel welded construction. On the rope drum an optimised groove pitch ensures the longevity of the wire rope. As an option, it is also possible to have the winch fitted with LEBUS-Grooves.
