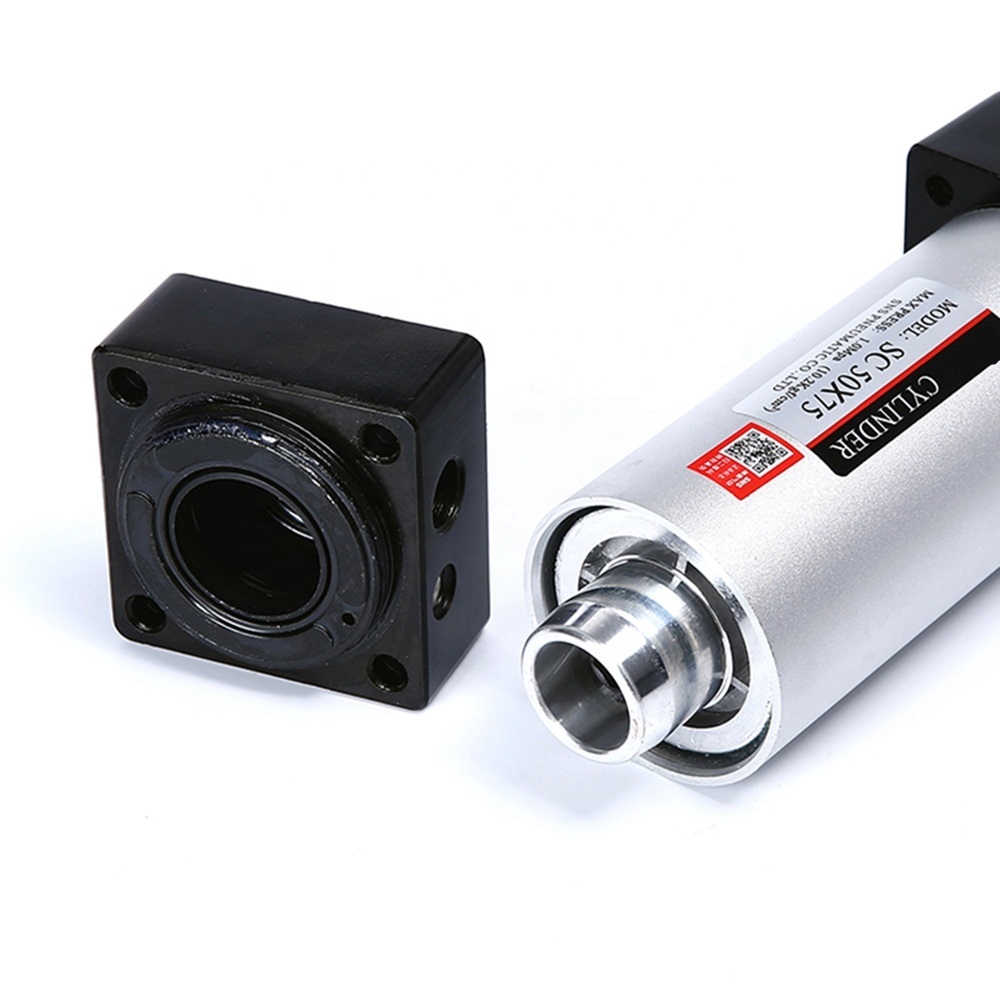

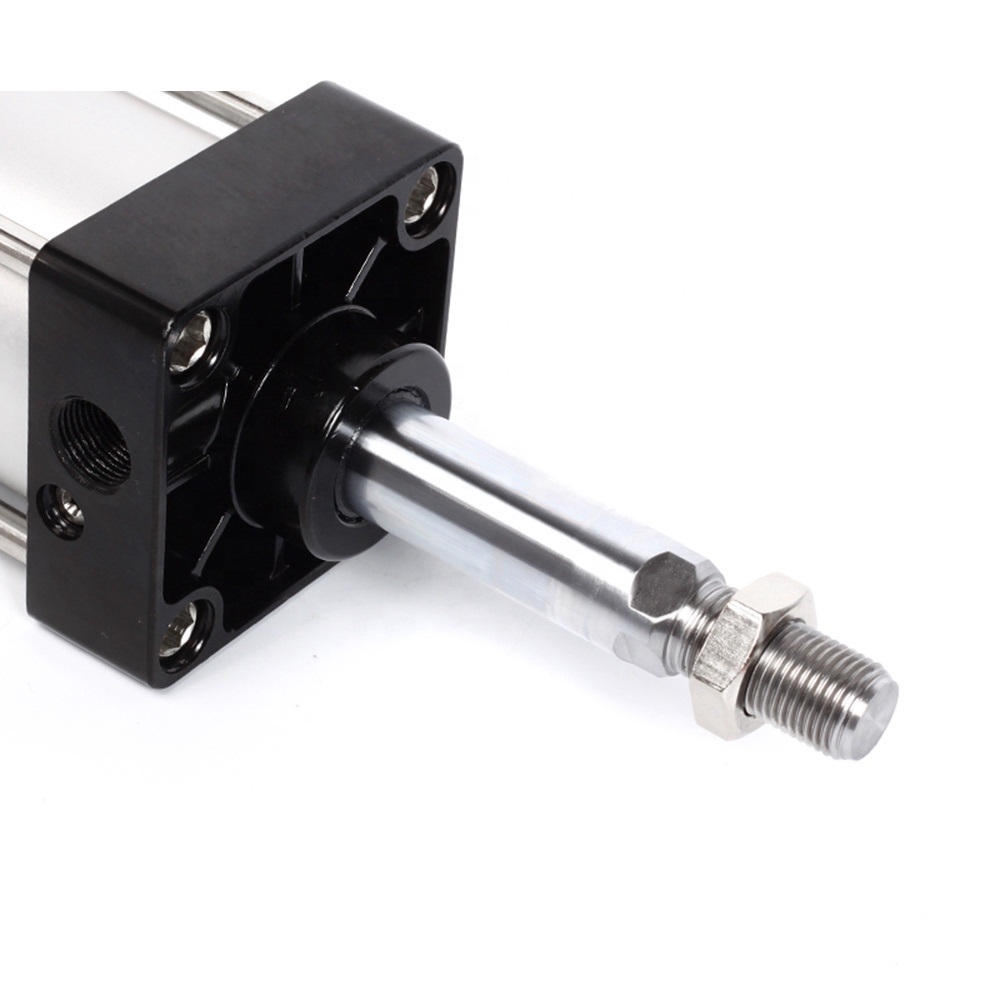

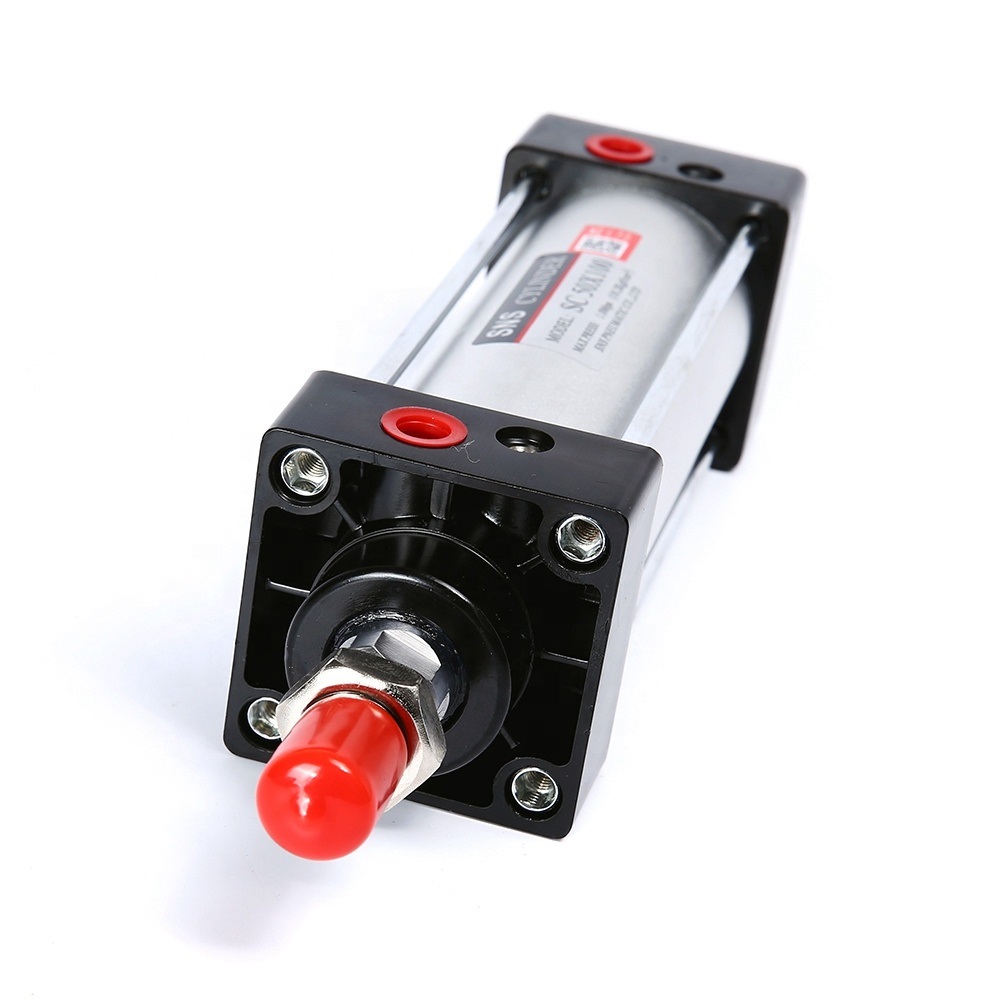

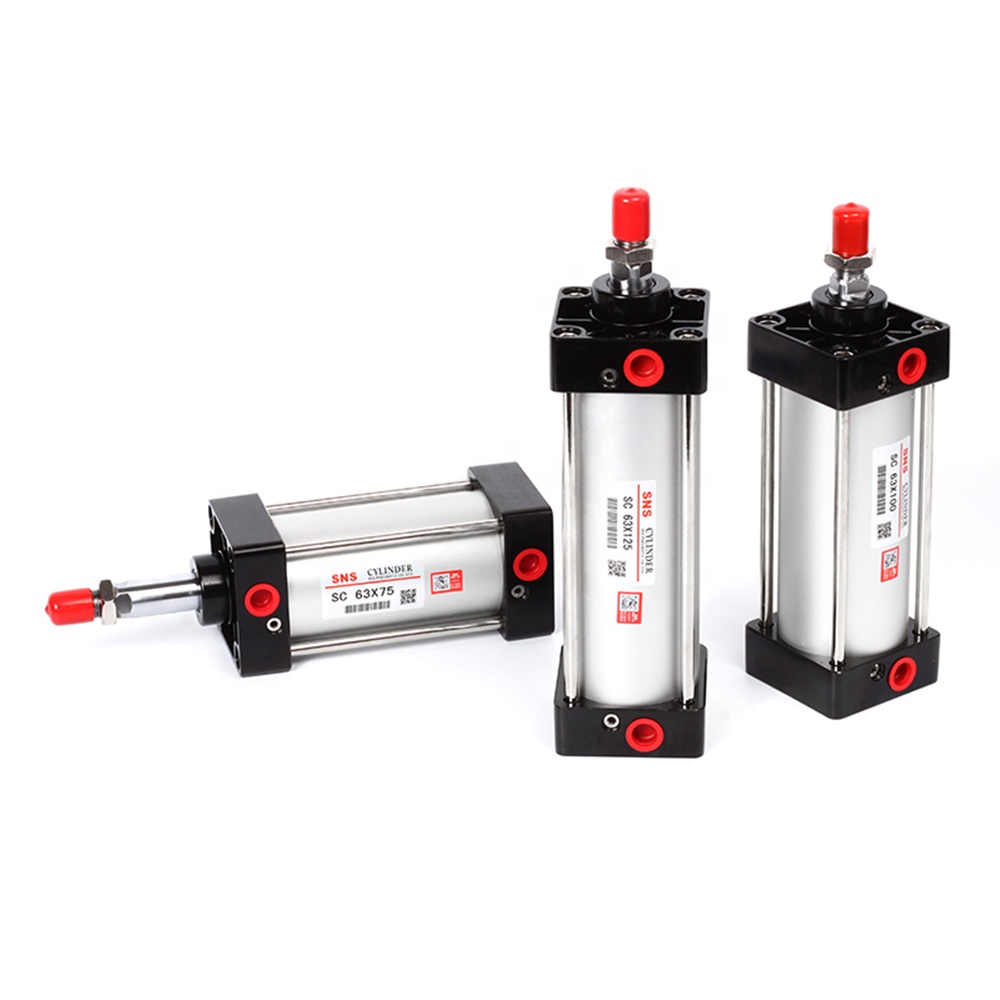

SC Series aluminium alloy double/single acting standard pneumatic air cylinder with PT/NPT port

Short Description:

When the work load changes, the cylinder with abundant output force should be selected. Before the cylinder is connected to the pipeline, the dirt in the pipeline must be removed to prevent the dirt from entering the cylinder.The medium used in the cylinder should be filtered by the filter piston and used mainly.1. The standard cylinder of piston sealing adopts the special-shaped two-way sealing structure, with compact size and oil storage function.2. The standard cylinder is a pull rod type cylinder, and the front and rear covers are connected with the aluminum tube cylinder body with a strut, which has good reliability.3. The buffer adjustment of standard cylinder is stable.

Send email to us

Product Detail

Product Tags

src=

Bore Size(mm)	32	40	50	63	80	100
Acting Mode	Double Acting
Working Media	Cleaned Air
Working Pressure	0.1~0.9Mpa(1~9kgf/cm²)
Proof Pressure	1.35MPa(13.5kgf/cm²)
Working Temperature Range	-5~70℃
Buffering Mode	Adjustable
Buffering distance(mm)	24				32
Port Size	1/8	1/4		3/8		1/2
Body Material	Aluminum Alloy

Stroke Of Cylinder

Bore Size(mm)	Standard Stroke(mm)										Max. Stroke(mm)	Allowable Stroke(mm)
32	25	50	75	100	125	150	175	200	250	300	1000	2000
40	25	50	75	100	125	150	175	200	250	300	1200	2000
50	25	50	75	100	125	150	175	200	250	300	1200	2000
63	25	50	75	100	125	150	175	200	250	300	1500	2000
80	25	50	75	100	125	150	175	200	250	300	1500	2000
100	25	50	75	100	125	150	175	200	250	300	1500	2000
125	25	50	75	100	125	150	175	200	250	300	1500	2000
160	25	50	75	100	125	150	175	200	250	300	1500	2000
200	25	50	75	100	125	150	175	200	250	300	1000	2000
250	25	50	75	100	125	150	175	200	250	300	1200	2000
320	25	50	75	100	125	150	175	200	250	300	1200	2000
400	25	50	75	100	125	150	175	200	250	300	1500	2000

src=

Bore Size(mm)	A	A1	A2	B	C	D	E	F	G	H	K	L	O	S	T	V
32	140	187	182	47	93	28	32	15	27.5	22	M10x1.25	M6x1	G1/8	45	33	12
40	142	191	185	49	93	32	34	15	27.5	24	M12x1.25	M6x1	G1/4	50	37	16
50	150	207	196	57	93	38	42	15	27.5	32	M16x1.5	M6x1	G1/4	62	47	20
63	153	210	199	57	96	38	42	15	27.5	32	M16x1.5	M8x1.25	G3/8	75	56	20
80	183	258	243	75	108	47	54	21	33	40	M20x1.5	M10x1.5	G3/8	94	70	25
100	189	264	249	75	114	47	54	21	33	40	M20x1.5	M10x1.5	G1/2	112	84	25
125	242	339	314	100	146	60	68	32	40	54	M27x2	M12	G1/2	140	110	32
160	323	480	441	152	171	70	99	53	45	72	M36x2	M16	G1/2	180	145	40
200	338	-	-	154	184	75	99	55	50	72	M36x2	M16	G1/2	220	180	40
250	384	-	-	189	195	92	119	70	50	84	M42x2	M20	G3/4	280	225	50
320	431	-	-	221	210	110	136	85	55	96	M48x2	M24	G3/4	350	280	60
400	516	-	-	261	255	150	136	125	55	100	M56x4	M27	G1	435	350	90
