Scraped Surface Heat Exchanger-SPA

Short Description:

Our chilling unit (A unit) is modeled after the Votator type of scraped surface heat exchanger and combines the special features of the European design to take advantage of the two worlds. It shares many small interchangeable components. Mechanical seal and scraper blades are typical interchangeable parts.

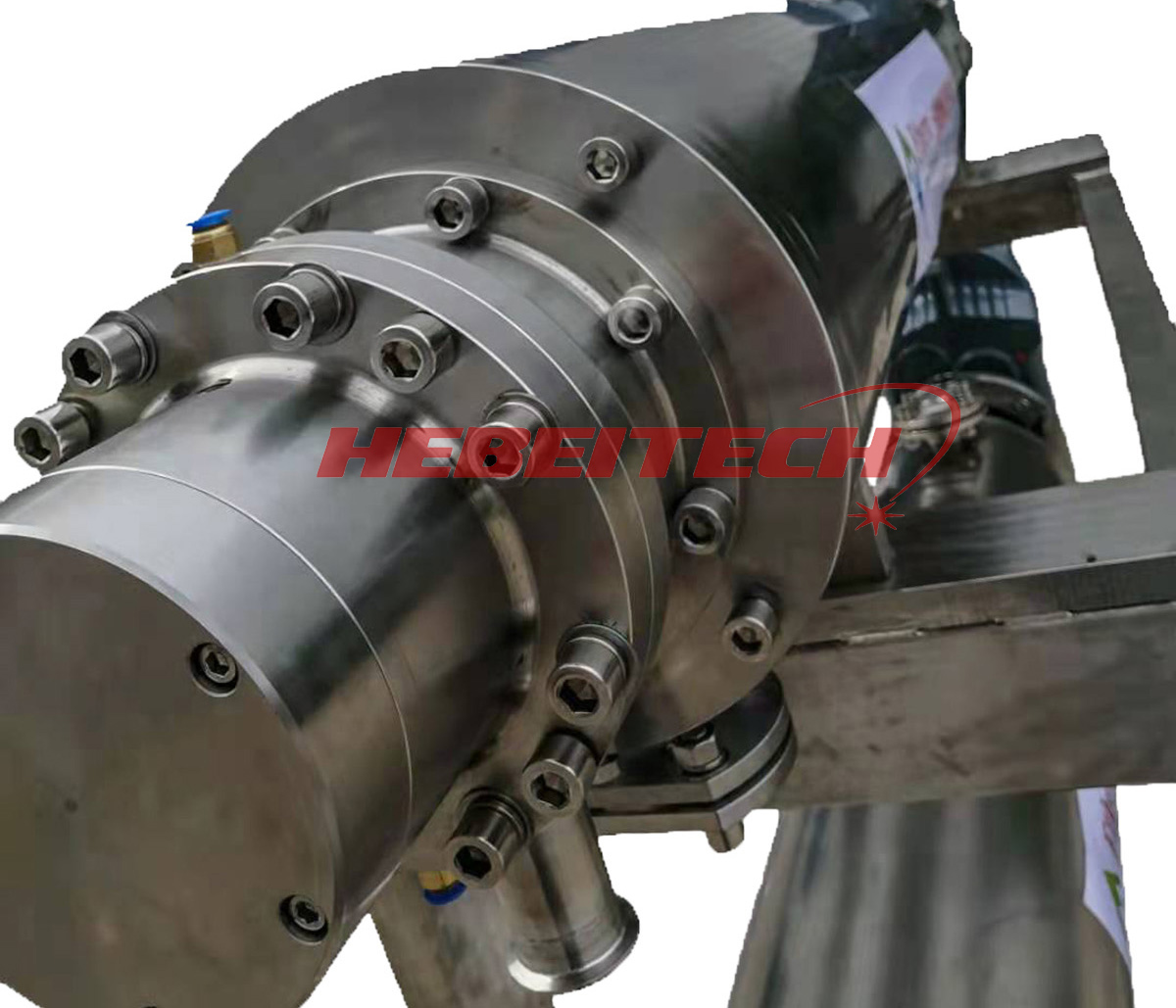

The heat transfer cylinder consists of a pipe in pipe design with inner pipe for product and outer pipe for cooling refrigerant. The inner tube is designed for very high pressure process operation. The jacket is designed for flooded direct evaporative cooling of either Freon or ammonia.

Suitable for margarine prodution, margarine plant, margarine machine, shortening processing line, scraped surface heat exchanger, votator and etc.

Send email to us

Product Detail

Product Tags

SPA SSHE Advantage

*Outstanding Durability
Completely sealed, fully insulated, corrosion-free stainless steel casing guarantees years of trouble-free operation.

Suitable for margarine prodution, margarine plant, margarine machine, shortening processing line, scraped surface heat exchanger, votator and etc.

*Narrower Annular Space
The narrower 7mm annular space is specially designed for the crystallization of grease to ensure more efficient cooling.*Higher Shaft Rotation Speed
Shaft rotation speed up to 660rpm brings better quenching and shearing effect.

*Improved Heat Transmission
Special, corrugated chilling tubes improve the heat transmission value.

*Easy Cleaning and Maintenance
In terms of cleaning, Hebeitech aims to make the CIP cycle fast and efficient. In terms of maintenance, two workers can quickly and safely dismantle the shaft without lifting equipment.

*Higher Transmission Efficiency

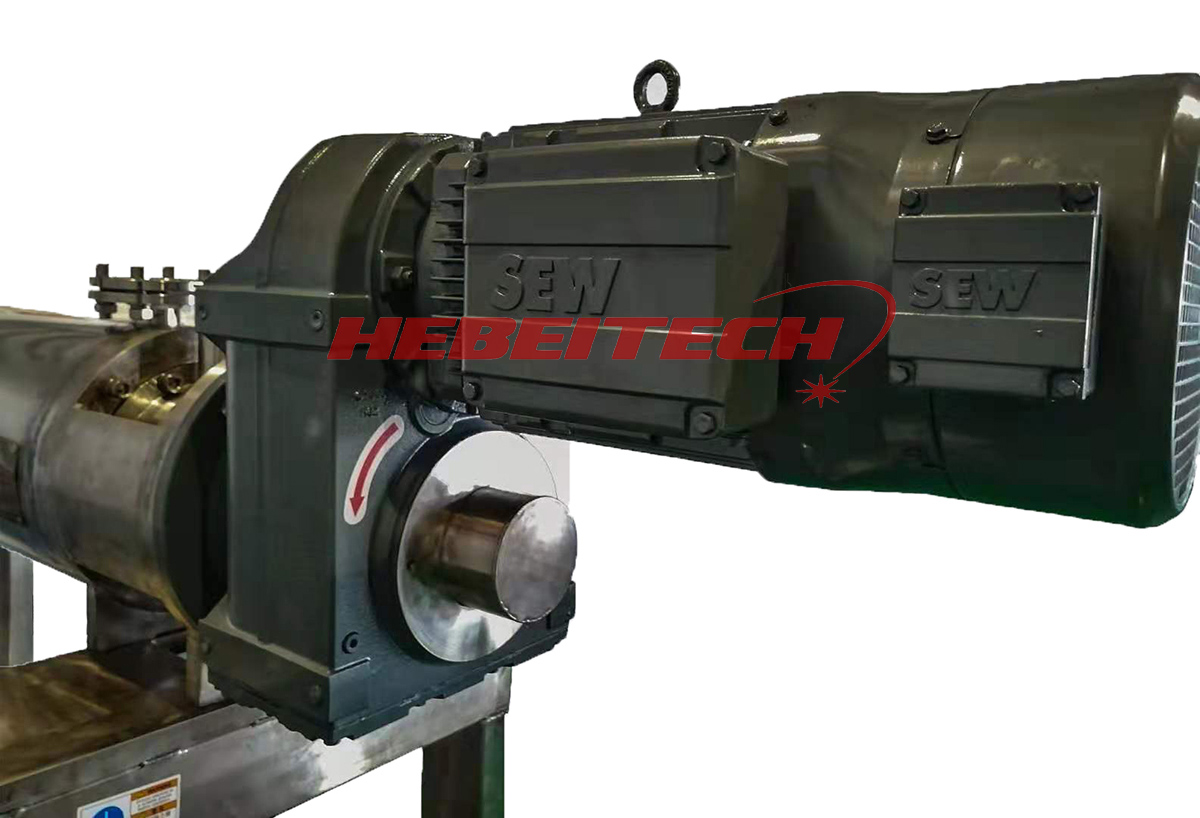

Synchronous belt transmission to obtain higher transmission efficiency.

*Longer Scrapers
The 762mm long scrapers makes chilling tube durable

*Seals
Product seal adopts silicon carbide wear-resistant ring balanced design, rubber O ring use food grade silicone

*Materials
The product contact parts are made of high-quality stainless steel, and the crystal tube is made of carbon steel, and the surface is plated with a hard layer

*Modular Design
The modular design of the product makes
the maintenance cost lower.

SSHE-SPA

Technical parameters	Technical Spec.	Unit	SPA-1000	SPA-2000
Rated production capacity (margarine)	Nominal Capacity(Puff pastry margarine)	kg/h	1000	2000
Rated production capacity (shortening)	Nominal Capacity(Shortening)	kg/h	1200	2300
Main motor power	Main Power	kw	11	7.5+11
The spindle diameter	Dia. Of Main Shaft	mm	126	126
Product layer clearance	Annular Space	mm	7	7
Cooling area of crystallizing cylinder	Heat Transmission Surface	m2	0.7	0.7+0.7
Material barrel volume	Tube Volume	L	4.5	4.5+4.5
Cooling tube inner diameter/length	Inner Dia./Length of Cooling Tube	mm	140/1525	140/1525
Scraper row number	Rows of Scraper	pc	2	2
Spindle speed of scraper	Rotating Speed of Main Shaft	rpm	660	660
Maximum working pressure (product side)	Max.Working Pressure (material side)	bar	60	60
Maximum working pressure (refrigerant side)	Max.Working Pressure (medium side)	bar	16	16
Minimum evaporation temperature	Min. Evaporating Temp.	℃	-25	-25
Product pipe interface dimensions	Processing Pipe Size		DN32	DN32
Diameter of refrigerant feed pipe	Dia. of Refrigerant Supply Pipe	mm	19	22
Refrigerant return pipe diameter	Dia. of Refrigerant Return Pipe	mm	38	54
Hot water tank volume	Hot Water Tank Volume	L	30	30
Hot water tank power	Power of Hot Water Tank	kw	3	3
Hot water circulating pump power	Power of Hot Water Circulation Pump	kw	0.75	0.75
Machine size	Overall Dimension	mm	25006001350	250012001350
Weight	Gross Weight	kg	1000	1500
