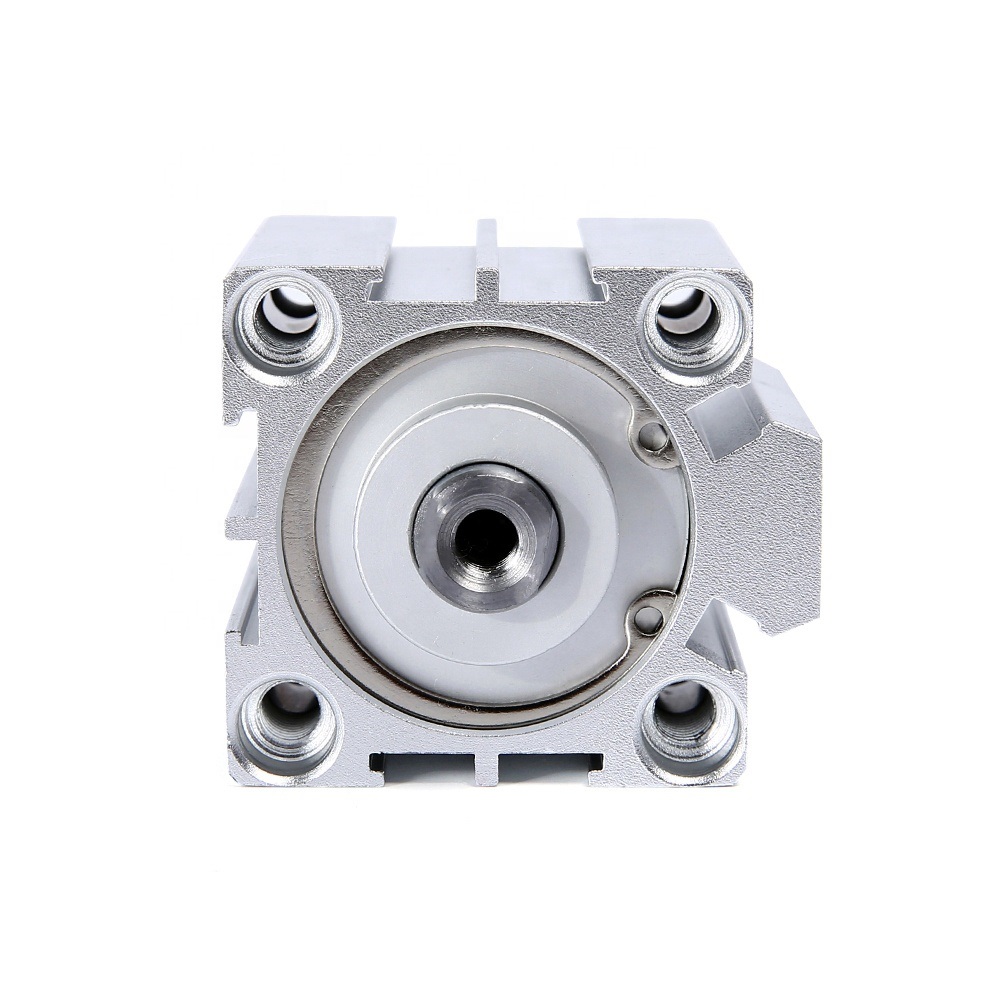

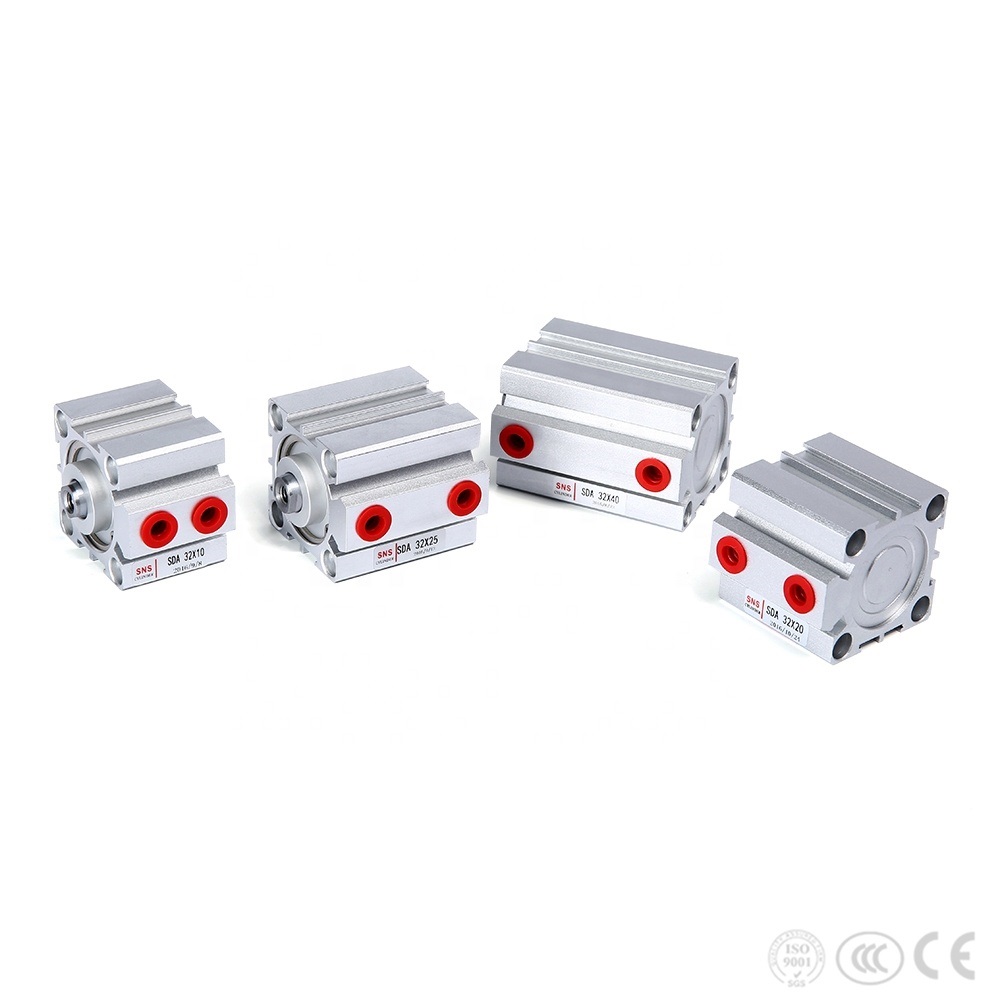

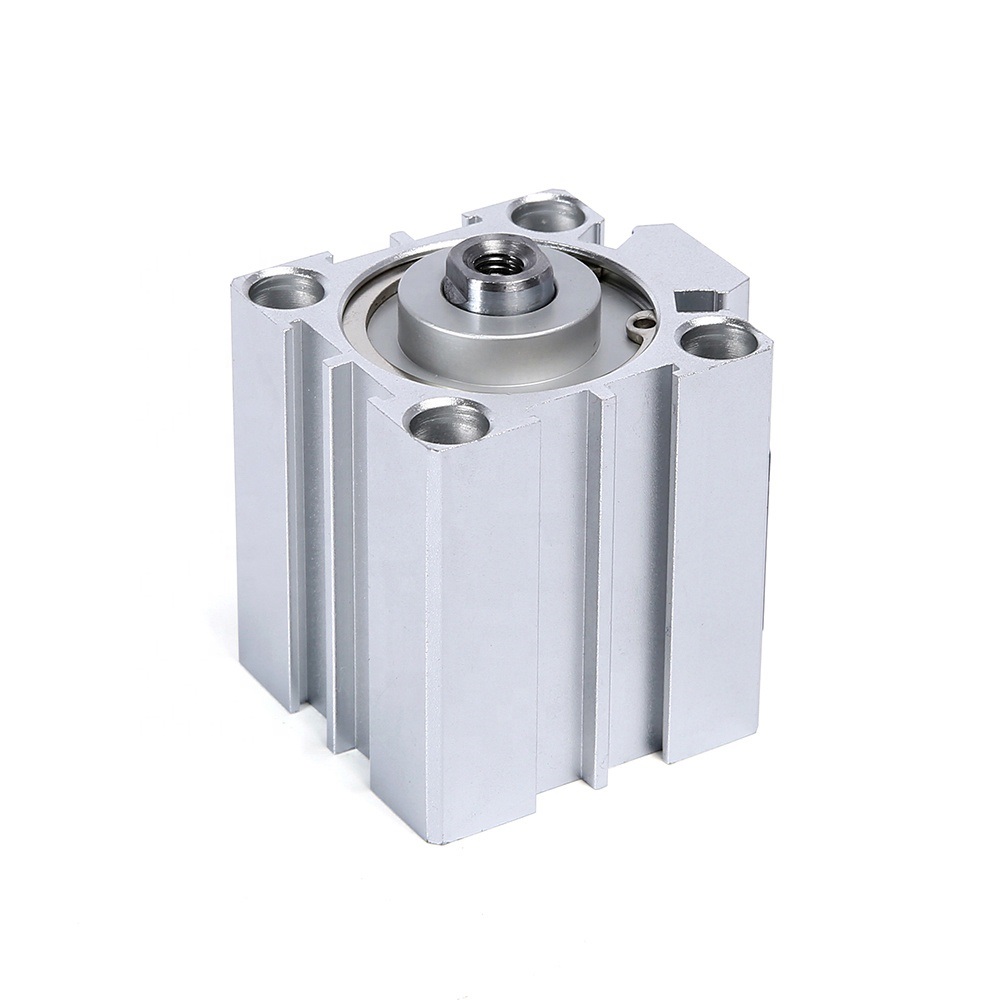

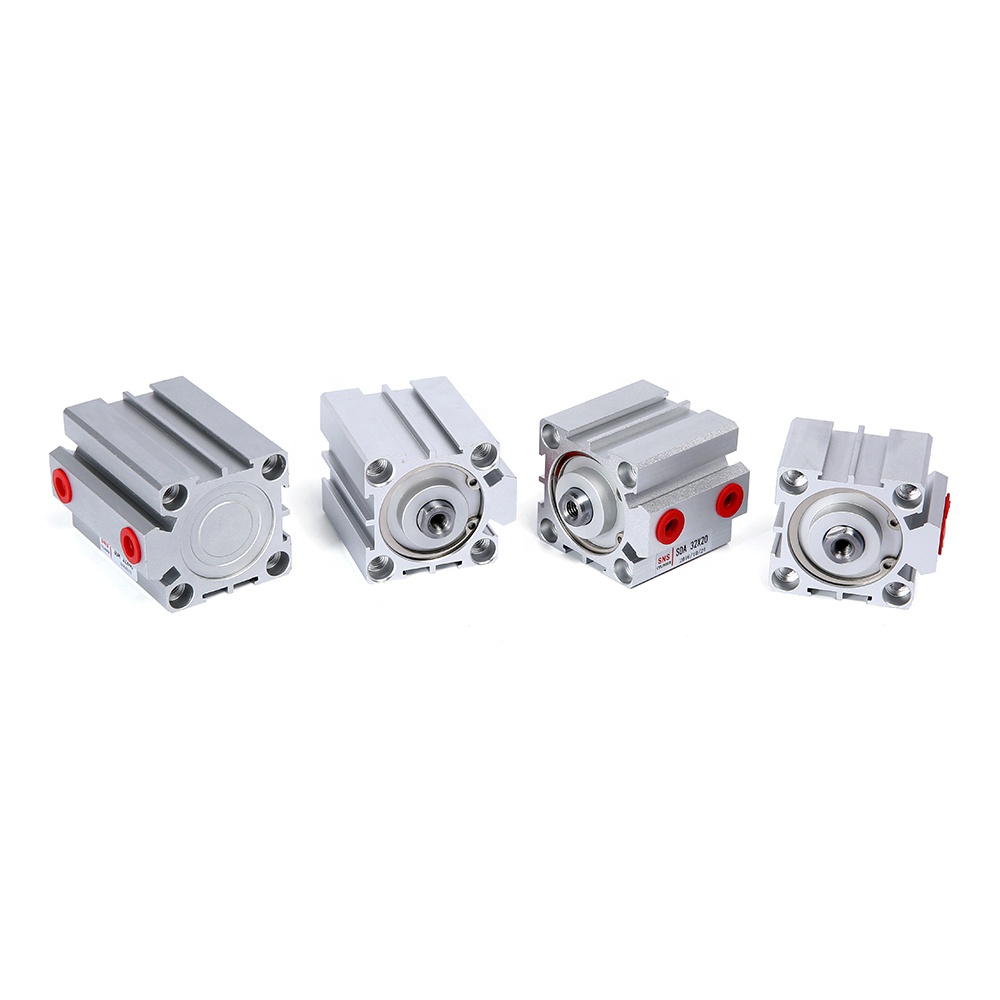

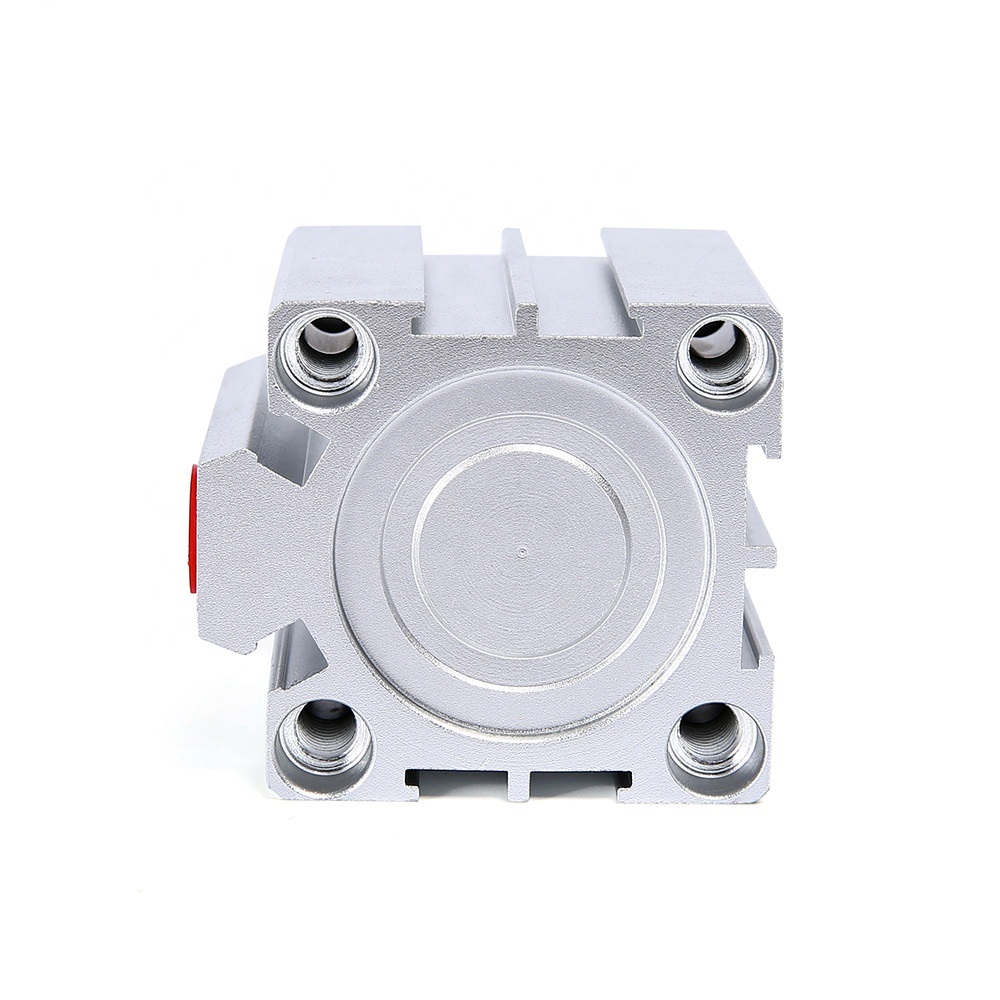

SDA Series aluminum alloy double/single acting thin type pneumatic standard compact air cylinder

Short Description:

Aluminum Alloy Standard SDA Series Compact Double Acting .The action forms include single action push-out type, single action lead-in type, double axis compound action type, double axis compound action adjustable stroke type. The rod end tooth shape is conventional internal tooth, external tooth and toothless. The buffer type is anti-collision gasket, which can effectively reduce the impact on the end cover.SDA Series Compact Double Acting Pneumatic Air Cylinder hascompact structure, which can effectively save installation space. The cylinder with magnetic induction switch slot is convenient for installation of induction switch. After processing, the inner diameter of cylinder has stronger wear resistance and durability, which can be applied to high-frequency use requirements. Thin and light: the total length of the cylinder is only 1 / 2-1 / 3 of that of the general cylinder under the condition of maintaining the existing operation accuracy and product service life. Play the characteristics of being thin and light; easy to install: use the embedded installation method, without any accessories to achieve the requirements of space saving; easy to maintain: use the simple assembly method for design, convenient for assembly, disassembly and maintenance; magnetic control simplicity: reserve the assembly slot around the body, so that the magnetic switch is extremely simple in installation, fixation and position adjustment; high accuracy and no impact Sound: the inner extension of the front cover is used to increase the guiding accuracy, and the rubber buffer is placed at the front and rear to eliminate the sound of the piston colliding with the front and rear end covers.

Send email to us

Product Detail

Product Tags

Product Description

src=

Bore Size(mm)	12	16	20	25	32	40	50	63	80	100
Acting Mode	Double Acting
Working Media	Cleaned Air
Working Pressure	0.1~0.9Mpa(kg/cm)
Proof Pressure	1.35Mpa(13.5kgf/cm)
Working Temperature	-5~70℃
Buffering Mode	With
Port Size	M5		1/8				1/4		3/8
Body Material	Aluminum Alloy

src=

Bore Size(mm)	Standard Type		Magnet Type		D	B1	E	F	G	K1	L	N1	O
Bore Size(mm)	A	C	A	C	D	B1	E	F	G	K1	L	N1	O
12	22	17	32	27	/	5	6	4	1	M3*0.5	10.2	6.3	M5*0.8
16	24	18.5	34	28.5	/	5.5	6	4	1.5	M3*0.5	11	7.3	M5*0.8
20	25	19.5	35	29.5	36	5.5	8	4	1.5	M4*0.7	16	7.5	M5*0.8
25	27	21	37	31	42	6	10	4	2	M5*0.8	17	8	M5*0.8
32	31.5	24.5	41.5	34.5	50	7	12	4	3	M6*1	22	9	G1/8
40	33	26	43	36	58.5	7	12	4	3	M8*1.25	28	10	G1/8
50	37	28	47	38	71.5	9	15	5	4	M10*1.5	38	10.5	G1/4
63	41	32	51	42	84.5	9	15	5	4	M10*1.5	40	11.8	G1/4
80	52	41	62	51	104	11	20	7	4	M14*1.5	45	13.5	G3/8
100	53	51	73	61	124	12	20	7	5	M14*1.5	55	17	G3/8

src=

Bore Size(mm)	P1
12	Double side: 6.5 ThreadM5*0.8 Through hole 4.2
16	Double side: 6.5 ThreadM5*0.8 Through hole 4.2
20	Double side: 6.5 ThreadM5*0.8 Through hole 4.2
25	Double side: 8.2 ThreadM6*1.0 Through hole 4.6
32	Double side: 8.2 ThreadM6*1.0 Through hole 4.6
40	Double side: 10 ThreadM6*1.25 Through hole 6.5
50	Double side: 11 ThreadM6*1.25 Through hole 6.5
63	Double side: 11 ThreadM8*1.25 Through hole 6.5
80	Double side: 14 ThreadM12*1.75 Through hole e:9.2
100	Double side: 17.5 ThreadM14*12 Through hole 11.3

Bore Size(mm)	P3	R	S	T1	V	W	X	Y
12	12	4.5	/	16.2	6	5	/	/
16	12	4.5	/	19.8	6	5	/	/
20	14	4.5	2	24	8	6	11.3	10
25	15	5.5	2	28	10	8	12	10
32	16	5.5	6	34	12	10	18.3	15
40	20	7.5	6.5	40	16	15	21.3	16
50	25	8.5	9.5	48	20	17	30	20
63	25	8.5	9.5	60	20	17	28.7	20
80	25	10.5	10	74	25	22	36	26
100	30	13	10	90	25	22	35	26
