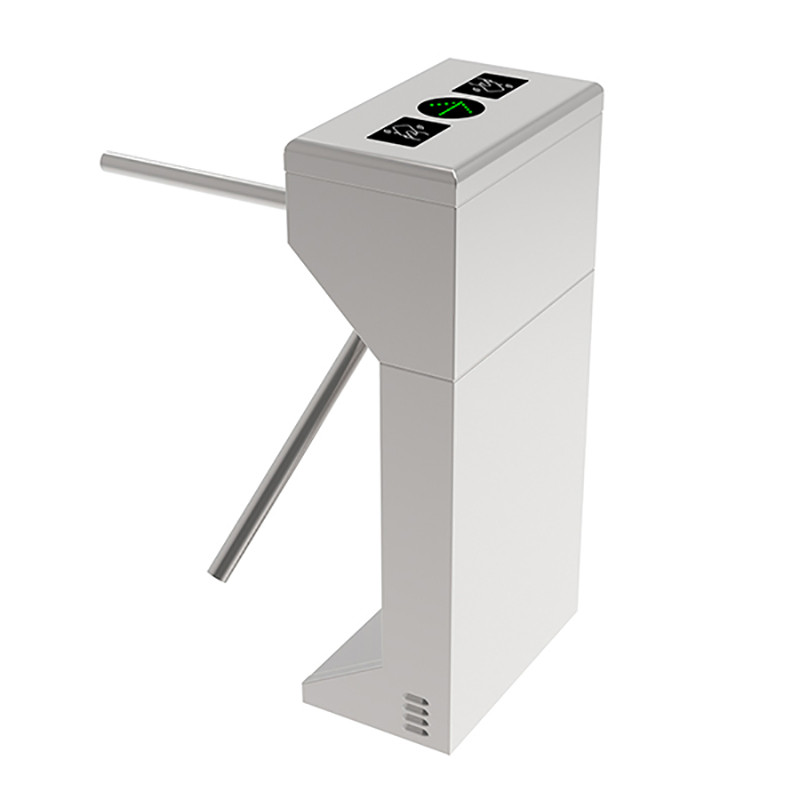

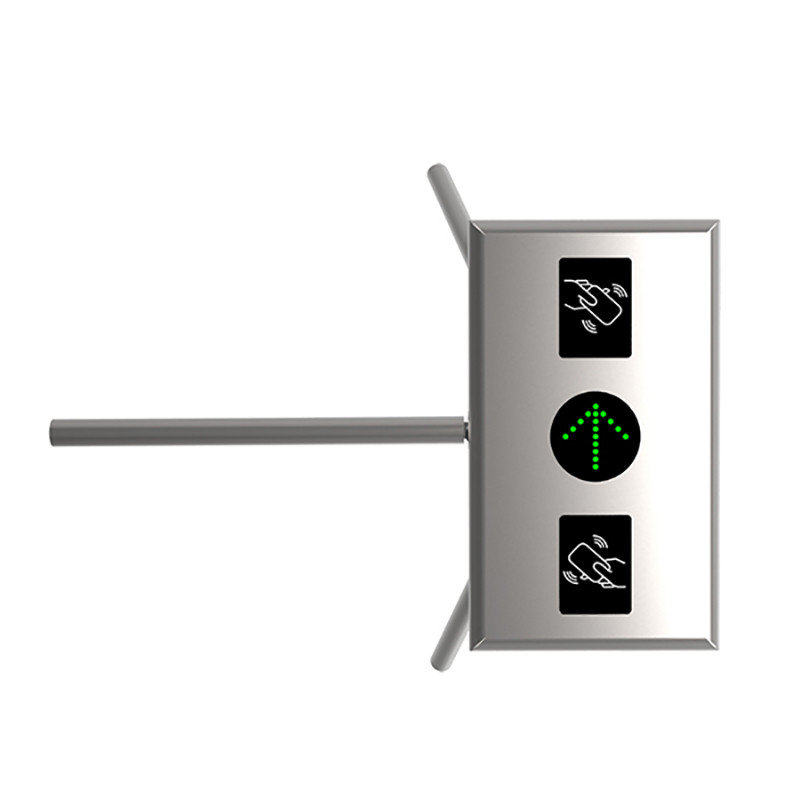

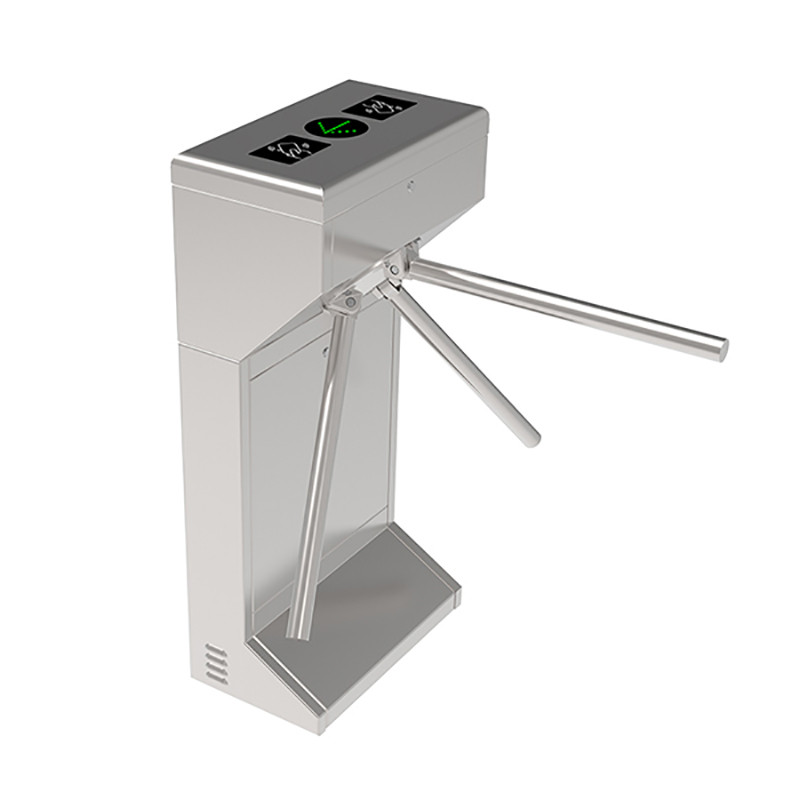

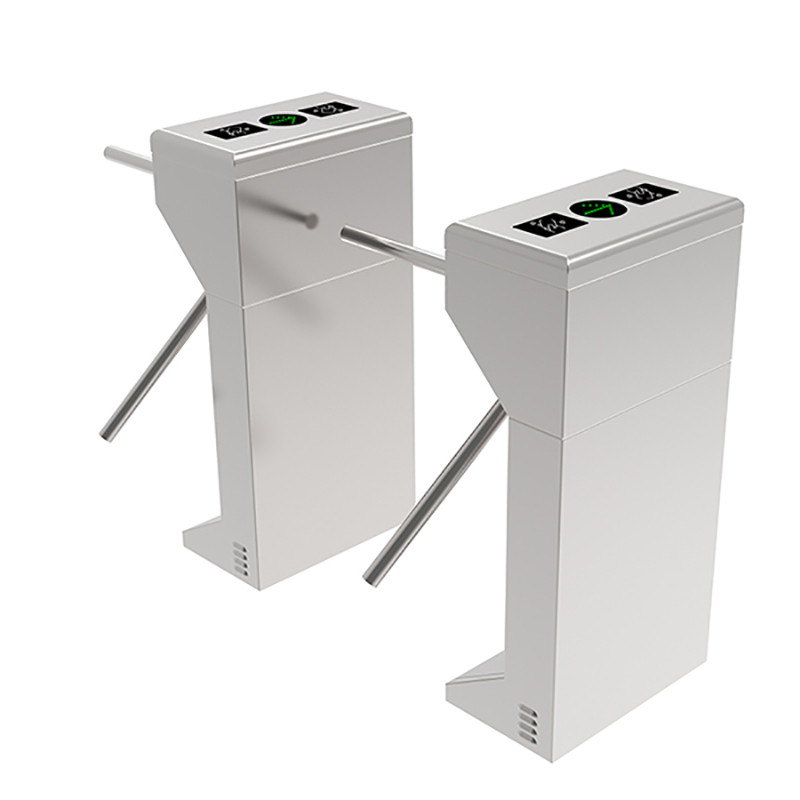

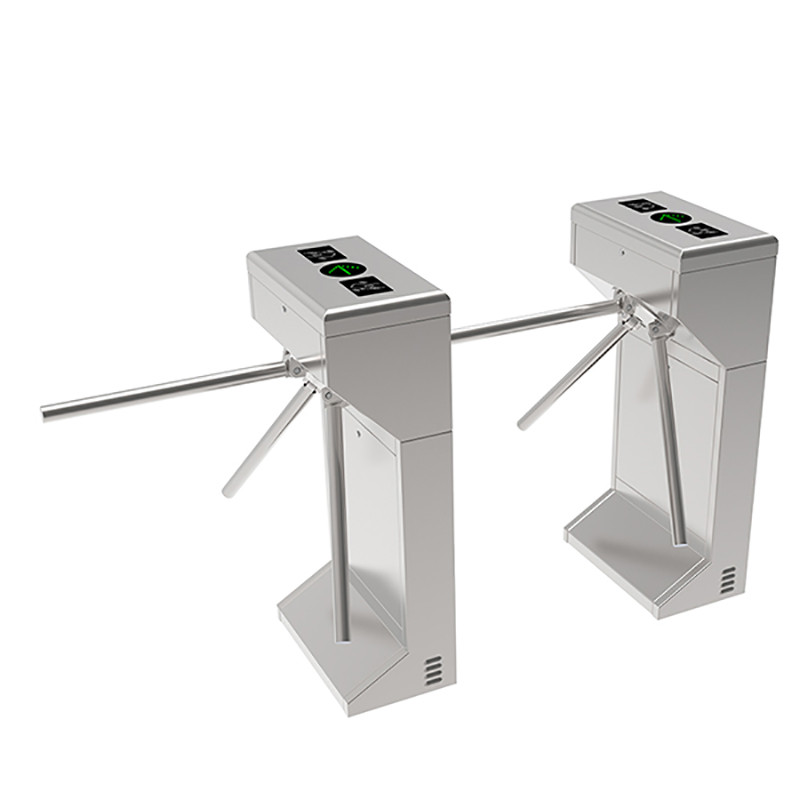

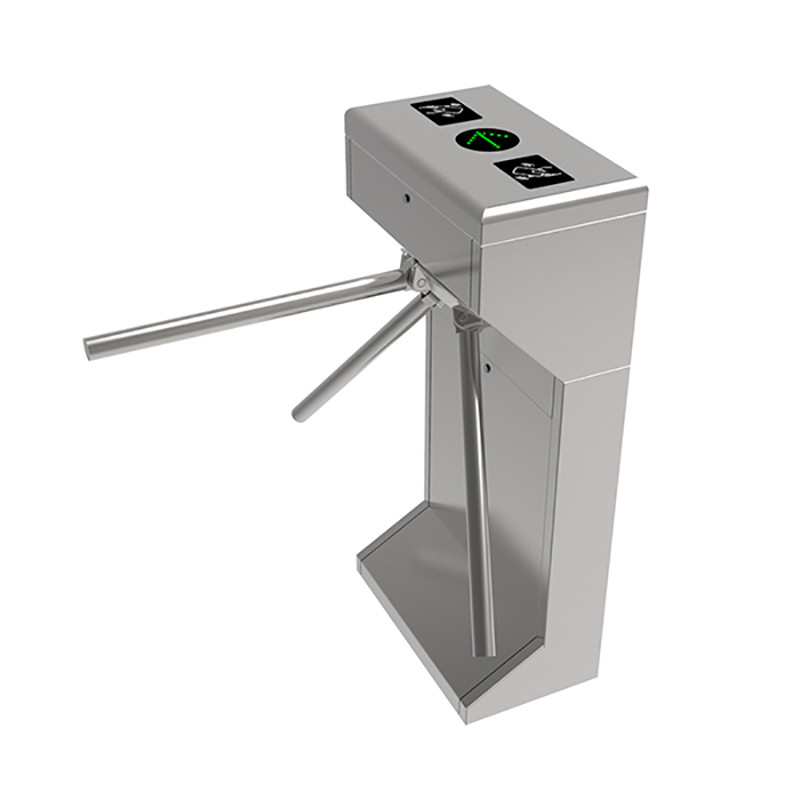

Security Equipment Automatic Fingerprint Reader Tripod Turnstile Access Control
Product Parameters
| Model NO. | YL1281 |
| Size | 480x280x980mm |
| Material | 304 stainless steel |
| Pass Width | 550mm |
| Passing Speed | 35-50 person/min |
| Working Voltage | DC 24V |
| Input Voltage | 100V~240V |
| Communication Interface | RS485, Dry contact |
| Reliability of the mechanism | 3 million, no-fault |
| Machine core | Anti-return Tripod turnstile Machine core |
| PCB Board | Tripod turnstile drive PCB board |
| Working Environment | ≦90%, No condensation |
| User Environment | Indoors or outdoors (outdoor is optional) |
| Applications | Factory, Construction Site, Community, School, Park and Railway station, etc |
| Package Details | Packed into wooden cases, 565x365x1180mm, 56kg |
Product Descriptions
Brief introduction
The semi automatic tripod turnstile, which is an electric control mechanism installed in the building structure, is used to form an access control system. The rotation unit consists of three tubular arms which are positioned at 120° intervals so that when the unit is at rest ,one arm will always be in the horizontal position(Barrier position).The movement of the rotation unit can be realized by pushing arms lightly. If arm rotates more than a settled position, the elastic potential energy will drive the rotation unit to complete the whole process of rotation.
The electronic tripod turnstile, which has integrated the electronic and mechanical rotation, is a kind of advanced access controller. After being integrated with RFID, IC and magnetic card, it can meet various requirements of customers and therefore can be widely used in such sites as conference room, park and railway station, etc.
Tripod turnstile gates offer dissuasive automated access control for sites with heavy use. Well-built for inased durability, they efficiently control high throughput. Since they can be installed inside or outside buildings, they provide control of occasional user abuse. This is simple, economical and compact equipment.
Upgrade to full automatic tripod turnstile is optional.
Function Features
1. It has a stable and reliable mechanical locking device, a precise machine core and a combined structure of the turnplate with a special process.
2. With two-way traffic function, the brake lever steering can be divided into two-way and one-way.
3. With the arm drop down when power-off function, in an emergency, the tripod gate will automatically fall off the tripods, and pedestrians can pass quickly to meet the requirements of the fire-fighting passage.
4. After the pedestrian reads the valid card, if the pedestrian does not pass within the time specified by the system, the system will automatically cancel the pedestrian’s permission to pass this time.
5. It can be connected with a two-way arrow indicator to indicate the status of passage, which can be passed or prohibited.
6. It can be connected with a two-way flow counter, which can display the number of passers-by in the direction of travel.
7. There is a dial switch on the control board, which can adjust the pass delay time through an algorithm, and can also be adjusted to a memory mode, for example: swipe the valid card five times, and pass five people.
8. The anti-reversal device function prevents the rotating unit from rotating in the opposite direction to the original direction.
9. The unified standard external electrical interface can be connected to a variety of card readers, and remote control and management can be realized through the management computer.
10. The whole system runs smoothly and has low noise.
Tripod turnstile drive PCB board
Features:
1. Arrow + three-color light interface
2. Memory mode
3. Multiple traffic modes
4. Dry contact / RS485 opening
5. Support fire signal access
6. Support secondary development
Mould-made Tripod Turnstile Machine Core
Molding: Die-cast aluminum, special spraying treatment
Anti-submarine return: 6pcs gears design, unable to return after 60°rotation
Long life time: Measured 10 million times
Disadvantages: The pass width is 550mm only, can’t be customized. It’s not easy for pedestrians with large luggage or trolleys to pass.
Applications: Factory, Construction Site, Community, School, Park and Railway station, etc
Product Dimensions
Project Cases
Installed at Water park in Indonesia
