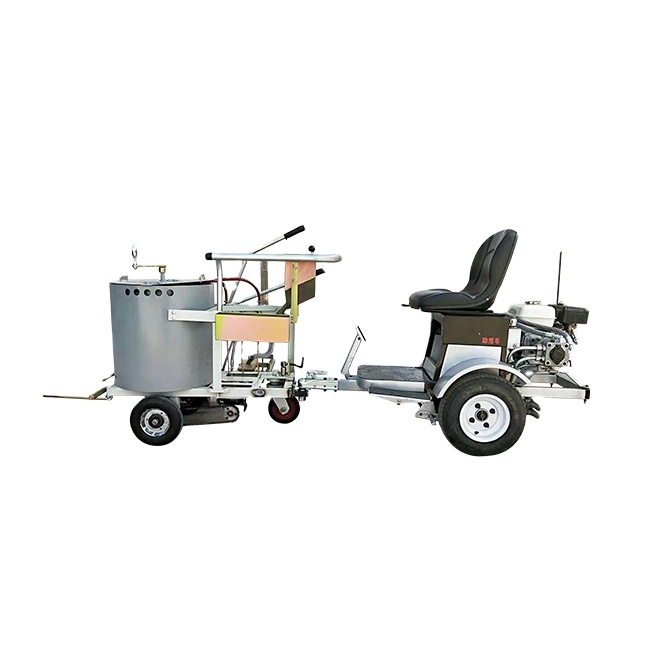

Self-Propelled Thermoplastic Road Marking Machine

Short Description:

  • Name : Self-Propelled thermoplastic road marking machine
  • Model : ZH-ZT150
  • Size : 1250×800×940mm
  • Weight : 100kg(without hopper)
  • Stirring way : Manual stirring
  • Speed of marking: 1~1.5Km/h
  • Bottom material : 3mm Boiler plate
  • Heating stove : Single-column fire head
  • Melt speed : Preheater boil
  • Tank capacity : 100kg
  • Glass bead box capacity : 20kg
  • Spreader : Roller spreader
  • Floor knife Floating : carbide floor knives
  • Heating method Petroleum : liquefied gas heating and insulation
  • Marking thickness : 1.2~2.5mm
  • Marking width : 50/80/100/1/125/150/0/250/300/350/400/450/500mm

  • Product Detail

    Product Tags

    Product Description

    The self-propelled thermoplastic road marking machine is one of the main equipments in the construction of thermoplastic or hot melt marking line. This product is simple in structure, flexible in operation and labor-saving in construction, especially for zebra crossing, which is also easy to be applied. It is obviously superior to similar products, and equipped with sub-benchmark to cope with the quick switch of the reference line of various complicated roads and irregular marking lines.
    111

    112

    photobank

    Features

    1.Marking Hoppers are made of Special Alloy

    2.Two Handles are designed for the Marking Hopper

    3.Adjustable Handle and Carbide Toll help to work on uneven road

    4.Special Rubber Wheels help to work more effectively and stably

    5.Paint Tank of Double Layer Temperature Reservation Structure

    6.Automatic / self-propelled Thermoplastic Road Marking

    Parameters

    Name Self-Propelled  thermoplastic road marking machine
    Model ZH-ZT150
    Size 1250×800×940mm
    Weight 100kg(without  hopper)
    Stirring  way Manual  stirring
    Speed  of marking 1~1.5Km/h
    Bottom  material 3mm  Boiler plate
    Heating  stove Single-column  fire head
    Melt  speed Preheater  boil
    Tank  capacity 100kg
    Glass  bead box capacity 20kg
    Spreader Roller  spreader
    Floor  knife Floating  carbide floor knives
    Heating  method Petroleum  liquefied gas heating and insulation
    Marking  thickness 1.2~2.5mm
    Marking  width 50/80/100/1/125/150/0/250/300/350/400/450/500mm
