Shredder and crusher

Short Description:


Product Detail

Product Tags

Pipe Crusher and Shredder Unit

shredder is able to shred the PE, PP, PVC pipe with dia.1200mm, the length of 3-6m pipe can be shredded directly without cutting, and the rotary speed is slow and stable. Variety of pipes is put into the flat feeding tank, and the tanks closed automatically, and push the pipe by hydraulic into the center axis for shredding. The material after crushing is transported by conveyor belt for secondary crushing in order to get the requested granule.

Shredder and crusher3

shredder has the main advantage of energy saving safe and efficient, and the system is controlled by PLC center control system.

Model

Rotor Dia.

Drive Power

Shreddable Pipe Dia. Max.

 Output

DYSSG-630

ø848

2×30

630

800-1000

DYSSG-800

ø1028

2×37

800

1000-1200

DYSSG-1000

ø1258

2×45

1000

1200-1500

DYSSG-1200

ø1478

2×55

1200

1500-2000

DYSSG-1000

ø1968

2×110

1600

1800-2500

Shredder

Shredder and crusher4

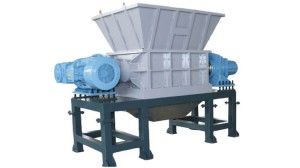

Two-shaft Shredder
This series of two-shaft shredder features low noise, low energy consumption and high output. It reflects the superiority of low speed and large torque cutting design. This series of shredders is particularly suitable for the crushing of large-sized plastic materials. After being shredded, the bulk density of the material can be increased, thereby reducing transportation costs. In addition, the material can be further processed after shredding, such as material separation, washing and pelletizing etc.

Model

Rotor Dia.

Drive Power

Rotor Blade

 Blade Thickness

Crushing Chamber Size Max.

DYTSS-32100

ø430

22×2

26

40

1000×800

DYTSS-40130

ø514

37×2

26

40

1300×950

DYTSS-50180

ø615

55×2

36

50

1800×1200

Single-shaft Shredder
DYSSJ shredder series from cooperation of sturdy pushing feeder and directional heavy bearing, which make the operation more safety.
Standard seratted pushing feeder is equiped to the DYSSJ shredder, which makes it easier to shred big blocks pallet and wood.
Different feeding hopper can be designed according to customer’s requirements. Standard feeding hopper is suitable to feed large quantities and big blocks of material. This kind of hopper can make optimal production. The mechanical pusher push material to rotor continuously, so the output is high. Automatic shredding process can not make it stuck.

Shredder and crusher5

Model

Rotor Dia.

Drive Power

Rotor Blade

Fixed Blade

Crushing Chamber Size Max.

DYSSJ-850

ø435

37

60

3×2

700×730

DYSSJ-1500

ø505

37

102

5×2

800×1290

Shredder and crusher6

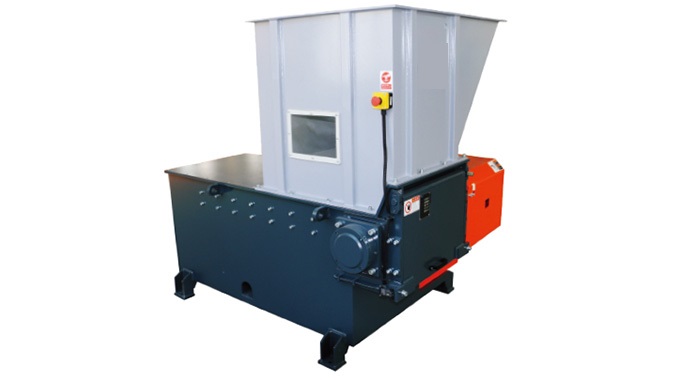

Small Single-shaft Shredder
DYSS single-shaft shredder is a shredding equipment with a wide range of applications. It is designed to meet the waste recycling requirements of various industries. It can be used in a wide variety of materials, including various plastic products such as blocks, pipes and woven bags, various used cables, wood, waste paper and electronic waste etc. The size of the shredded material is depend on the features of material and the next step, and the shredded material can be directly recycled or for further crushed.

Model

Rotor Dia.

Drive Power

Rotor Blade

Fixed Blade

Crushing Chamber Size Max.

DYSS-600

ø200

18.5

23

4

600×800

DYSS-800

ø400

37

39

6

800×800

Four-shaft Shredder
Four-shaft series shredders are of multifunction and versatility. With standardized and modular design, shredder of this series has an advantage of good interchangeability between spare parts. The auxiliary knife is refined by die forging, while the main knife, made of special alloy steel by a special process, is of good wearability and high intensity. The shredder is driven by intermediate gear transmission, forming differential relationship. Shredders of this series are applicable to shred plastic barrels, plastic frames, woven bags, circuit board and paper box etc., and have advantages of controllable discharging size, high-efficiency, low rotate speed and low noise.

Shredder and crusher7

Model

Motor Power

Blade Thickness

Main Blade Dia.

Main Blade

Crushing Chamber Size Max.

DYFSS-9080

2×18.5

290

ø25

32

900×800

DYFSS-100120

2×22

320

ø40

31

1000×1200

DYFSS-130140

2×15+2×30

430

ø50

28

1300×1400

Crusher

Shredder and crusher8

Light Crusher
DYPS series light crusher is of beautiful exterior design and high-quality steel structure welding. The rotor uses the latest V-shaped cutting technology to send the crushed material to the central, which not only avoids the material impacting on the sidewall, but also makes the sidepiece wearable, and reduces dust producing. The main shaft is made of high-quality material. It has advantage of assembly operation, static balance check, good toughness, hard to deformation, stable working, and small vibration.

Applicable to broken small pipes, profiles, plate sheets, injection molding glands, and all kinds of plastic packaging containers and thin film,etc. DYUN can also provide crushing auxiliary device according to customer’s requirements, such as suction unit collector,feeding conveyor belt and metal separator etc.

Model

Feed Mouth Size

Main Motx Power

Rotor Blade

Fixed Blade

Rotor Dia.

Output

DYPS-450

450X350

11

6

2

ø300

200

DYPS-560

560X400

15

6

2

ø400

300

DYPS-700

700X700

37

6

4

ø500

400

DYPS-800

800X800

45

6 4 ø600

500

Heavy Crusher
DYPS-Z series heavy crushers are designed specially for the recycling material which is not easy to be crushed and thickness 3~30mm.
Cabinet: The main box of DYPS-Z series crusher, processed by CNC Machine exactly with the steadfast welding structure. This kind of crusher features great thickness, high strength, good wear resistance, no pollution, long life. The upper box can be opened easily by hydraulic system and repaired conveniently.

Shredder and crusher9

Main shaft: The main shaft is processed with high quality steel after verifying the balance. Good toughness, stable working state, low shaking are the main features. The rotor with new “V” shape cutting technology is composed of 3,5 or 7 pieces of blades on the basis of different crushing material. This technology makes sure the blade can produce uniform granular with low energy and low noise.

Model

Feed Mouth Size

Main Motx Power

Rotor Blade

Fixed Blade

Rotor Dia.

Output

DYPS-Z 800

800X800

37-75

6/10

4

ø600

600

DYPS-Z 1000

1000X1000

55-110

10/14

4/6

ø700

800

DYPS-Z 1200

1200X1200

90-132

10/14/18

4/6

ø800

1000

DYPS-Z 1500

1500X1500

110-200

14/18 4/6 ø1000

1200

Shredder and crusher10

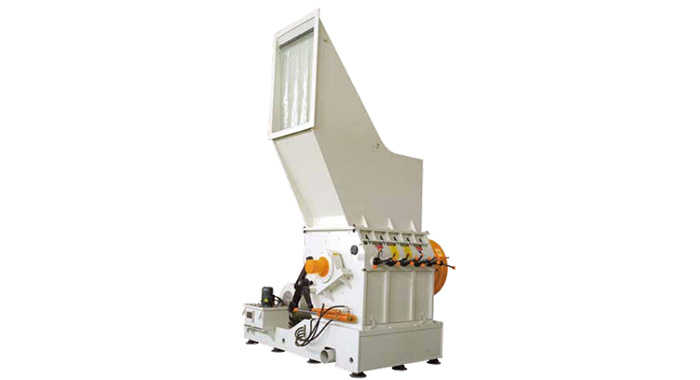

Pipe Crusher

DYPS-G series heavy pipe crusher can crush middle diameter pipe directly without shredding in advance.

This series crusher inlet is specially designed for plastic pipe, the pipe and the crusher rotor form a certain angle to reach the best crushing effect, crushed pipes and profiles up to 6 meters in length.

The crusher chamber has thee fixed knives for changing the first cutting point of the to-be-crushed material. This kind construction can reduce the impact force for high strength and large volume of material and avoid the possibility of material blockage. Special steel and a strong welding process make the high product quality. The special design of the tool holder and the main shaft can meet the requirements of shredding various types of plastic pipes, profiles, films, sheets and large solid materials. It is economical equipment wide versatility, practicality, easy operation and durability.

Model

Feed Mouth Size

Main Motx Power

Rotor Blade

Fixed Blade

Rotor Dia.

Output

DYPS-G 700

310X300

37

6

4

ø500

450

DYPS-G 800

360X350

55

6/10

6

ø600

650

DYPS-G 1000

510X500

75-110

10/14

6

ø700

850

DYPS-G 1200

650X650

110-160

14/18 6 ø800

1200

Profile/WPC Special Crusher
Conventional crushers have certain difficulties in crushing plastics, profiles and wood-plastic profiles. Usually, larger crushing chambers are required to crush and recycle larger quantities of materials. For this reason, Dyun specially designed the DYPS-X series. The feeding hopper, which is almost parallel to the ground, makes feeding of longer materials extremely simple and convenient. Because the rotor of the machine can automatically grasp the material to-be-broken, there is no material blockage.

Shredder and crusher11

Model

Feed Mouth Size

Rotor Effective Width

Motx Power

Rotor Blade

Output

DYPS-X 300

200X300

300

15

5

300

DYPS-X 600

300X600

600

35

15

600

DYPS-M 400

240X400

400

22

24

400

DYPS-M 600

300X600

600

55

36

600

Shredder and crusher12

Sheet Special Crusher
DYPS-P series crusher solves the problem of recycling and pulverizing sheet, sheet and foamed coil with a wide PP/ABS/PMMA thickness between 0.2 and 3mm. This crusher, different from other crusher, has one a set of traction devices, two sets of pressure rollers, air pressure for opening and closing, and its linear velocity can reach 30m/min, which improves the production efficiency. The main shaft is made of high-quality steel and checked by dynamic and static balance.

“V” shape cutting technology and water cooling system in the box avoids overheating and sticking of the material in the crusher chamber. According to the customer’s requirements, we provides a matching aggregate suction unit and dust separation device, which is more convenient to use.

Model

Feed Mouth Size

Rotor Effective Width

Main Motor Power

Haul-off Power

Output

DYPS-P 1000

960X300

1000

37-45

4

400

DYPS-P 1200

1160X350

1200

45-55

5.5

500

Tray/Pallet Special Crusher
Tray and plate special crusher, is mainly for crushing wide but thin plastic products. It has a dedicated main shaft and unique feeding hopper, which is easy to feed trays and wide plate products in. Wide products do not need to be cut, which spares the recycling process, saves energy, reduces labor intensity and costs and m improve the efficiency of pulverization and recycling.

Shredder and crusher13

Model

Feed Mouth Size

Main Motx Power

Rotor Blade

Fixed Blade

Rotor Dia.

Output

DYPS-T 1200

1200X1000

90-132

10/14/18

4/6

ø800

1000

DYPS-T 1500

1500X1000

110-200

14/18

4/6

ø1000

1200
