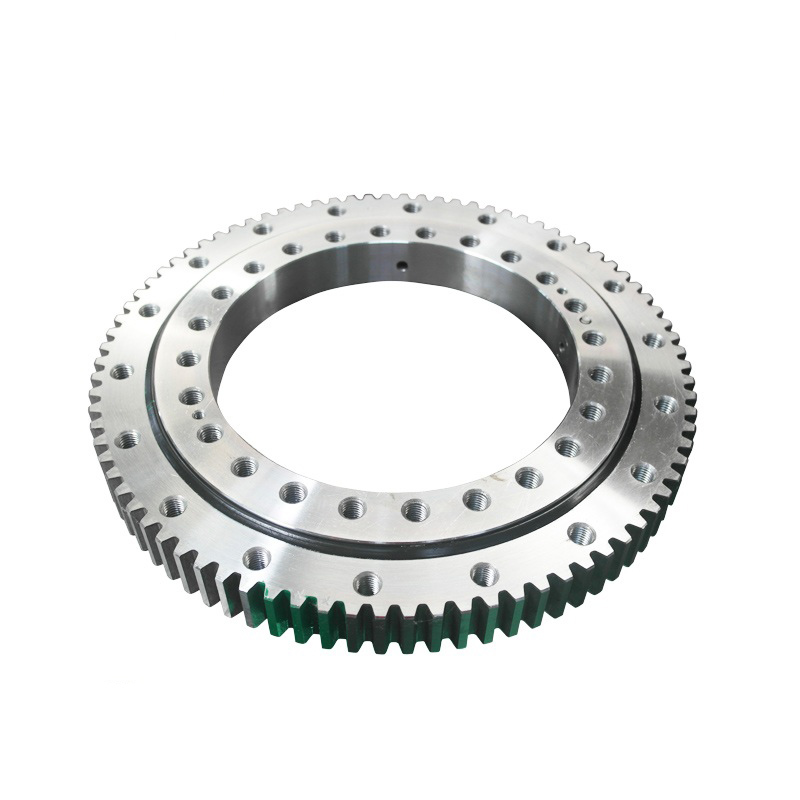

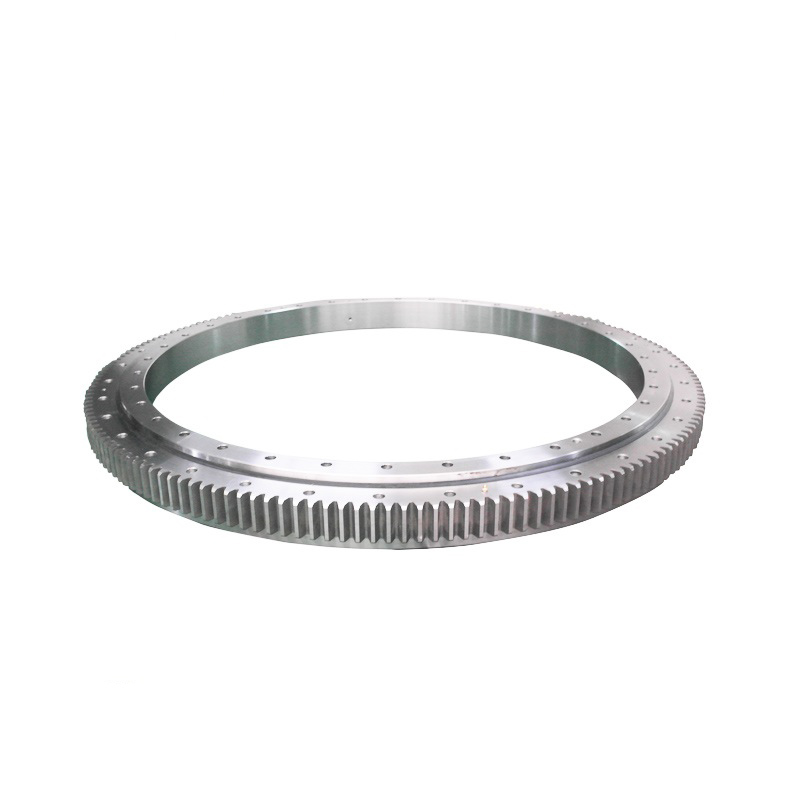

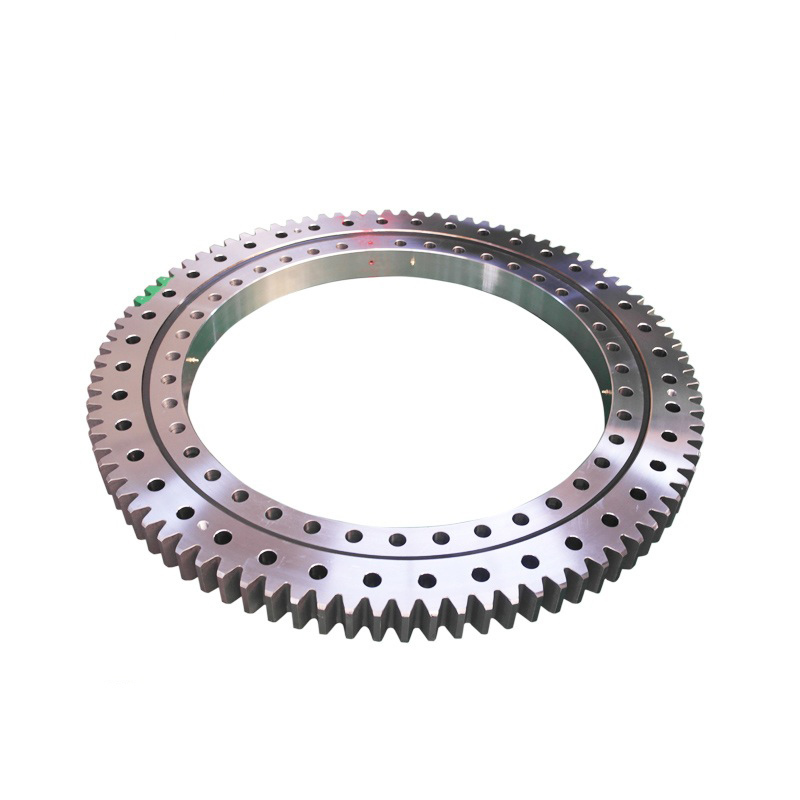

we are composed of 2 seat rings.It features compact in design,and light in weight.The balls contact with the circular race at four points,via which the axial force,radial force and resultant moment may be born simultaneously.
It may be used for slewing conveyer, welding arms and positioners,light,medium duty cranes,excavators and other engineering machines.
Product available including: Single and Double Row Ball, Three Row Roller, Cross Roller Sealed and Unsealed Internal Geared, External Geared and Non-Geared Clearance or Preloaded
We have strict production schedule to assure the delivery time, the production schedule as below:
A. Forging purchase period: 15-20 days
B. Production process:
1. Rough turning: 2-3 days
2. Raceway heat treatment: 2 days
3. Fine turning: 2 days
4. Gear cutting: 4-5 days
5. Drilling: 2-3 days
6. Final turning: 2 days
7. Assembling and Inspection: 2 days
C. Packing and delivery to Port: 3-5 days
Totally about 40-50days
The products are widely used in engineering machinery, building machinery, metallurgical and mining machinery,shipping port machinery, environmental protection machinery, light industry machinery, petroleum chemical machinery,engineering vehicle, war industry equipment and so on.
Turntable and Slewing Ring bearings utilize one to three rows of balls or rollers in order to provide smooth rotation even under extremely large loads. In addition to radial and axial loads, these bearings are able to support large moments in situations when loads are cantilevered away from the bearing’s central axis.
Turntables and Slewing Rings are offered in both metric and inch sizes with the ability to customize the mounting interfaces to suite your application. What differentiates Slewing Rings from Turntables is the inclusion of gear teeth on either the inner or outer rings.
We focus and control every production detail,Only for the delivery of good products to customers.
The material of the slewing bearing are generally high alloy-structural steels,such as 42CrMo,50Mn.
The material of rolling body is GCr15 and it is purchased from domestic suppliers with highest quality.
No | External gear | Dimensions (mm) | Mounting Dimensions (mm) | Structural Dimension (mm) | Gear data | Gear force10^4 KN | weight kg |
||||||||||||||||
D | d | H | D1 | D2 | n | Φ | dm | L | n1 | D3 | d1 | H1 | h | b | x | M | De | z | N | T | |||
1 | 011.20.200 | 280 | 120 | 60 | 248 | 152 | 12 | 16 | M14 | 28 | 2 | 201 | 199 | 50 | 10 | 40 | 0 | 3 | 300 | 98 | 1.5 | 2.1 | 24 |
2 | 011.20.224 | 304 | 144 | 60 | 272 | 176 | 12 | 16 | M14 | 28 | 2 | 225 | 223 | 50 | 10 | 40 | 0 | 3 | 321 | 105 | 1.5 | 2.1 | 25 |
3 | 011.20.250 | 330 | 170 | 60 | 298 | 202 | 18 | 16 | M14 | 28 | 2 | 251 | 249 | 50 | 10 | 40 | 0 | 4 | 352 | 86 | 2.1 | 2.8 | 30 |
4 | 011.20.280 | 360 | 200 | 60 | 328 | 232 | 18 | 16 | M14 | 28 | 2 | 281 | 279 | 50 | 10 | 40 | 0 | 4 | 384 | 94 | 1.5 | 2.8 | 34 |
5 | 011.25.315 | 408 | 222 | 70 | 372 | 258 | 20 | 18 | M16 | 32 | 2 | 316 | 314 | 60 | 10 | 50 | 0 | 5 | 435 | 85 | 2.9 | 4.4 | 52 |
6 | 011.25.355 | 448 | 262 | 70 | 412 | 298 | 20 | 18 | M16 | 32 | 2 | 356 | 354 | 60 | 10 | 50 | 0 | 5 | 475 | 93 | 2.9 | 4.4 | 59 |
7 | 011.25.400 | 493 | 307 | 70 | 457 | 343 | 20 | 18 | M16 | 32 | 2 | 401 | 399 | 60 | 10 | 50 | 0 | 6 | 528 | 86 | 3.5 | 5.3 | 69 |
8 | 011.25.450 | 543 | 357 | 70 | 507 | 393 | 20 | 18 | M16 | 32 | 2 | 451 | 449 | 60 | 10 | 50 | 0 | 6 | 576 | 94 | 3.5 | 5.3 | 76 |
9 | 011.30.500 | 602 | 398 | 80 | 566 | 434 | 20 | 18 | M16 | 32 | 4 | 501 | 499 498 | 70 | 10 | 60 | 0.5 | 5 | 629 | 123 | 3.7 | 5.2 | 85 |
012.30.500 | 6 | 628.8 | 102 | 4.5 | 6.2 | ||||||||||||||||||
10 | 011.30.560 | 662 | 458 | 80 | 626 | 494 | 20 | 18 | M16 | 32 | 4 | 561 | 559 558 | 70 | 10 | 60 | 0.5 | 5 | 689 | 135 | 3.7 | 5.2 | 95 |
012.25/30.560 | 6 | 688.8 | 112 | 4.5 | 6.2 | ||||||||||||||||||
11 | 011.30.630 | 732 | 528 | 80 | 696 | 564 | 24 | 18 | M16 | 32 | 4 | 631 | 629 628 | 70 | 10 | 60 | 0.5 | 6 | 772.8 | 126 | 4.5 | 6.2 | 110 |
012.25/30.630 | 8 | 774.4 | 94 | 6 | 8.3/8.2 | ||||||||||||||||||
12 | 011.30.710 | 812 | 608 | 80 | 776 | 644 | 24 | 18 | M16 | 32 | 4 | 711 | 709 708 | 70 | 10 | 60 | 0.5 | 6 | 850.8 | 139 | 4.5 | 6.2 | 120 |
012.30.710 | 8 | 854.4 | 104 | 6 | 8.9/8.3 | ||||||||||||||||||
13 | 011.40.800 | 922 | 678 | 100 | 878 | 722 | 30 | 22 | M20 | 40 | 6 | 801 | 798 | 90 | 10 | 80 | 0.5 | 8 | 966.4 | 118 | 8 | 11.1 | 220 |
012.40.800 | 10 | 968 | 94 | 10 | 14.1/14 | ||||||||||||||||||
14 | 011.40.900 | 1022 | 778 | 100 | 978 | 822 | 30 | 22 | M20 | 40 | 6 | 901 | 898 | 90 | 10 | 80 | 0.5 | 8 | 1062.4 | 130 | 8 | 11.1 | 240 |
012.40.900 | 10 | 1068 | 104 | 10 | 14 | ||||||||||||||||||
15 | 011.40.1000 | 1122 | 878 | 100 | 1078 | 922 | 36 | 22 | M20 | 40 | 6 | 1001 | 998 | 90 | 10 | 80 | 0.5 | 10 | 1188 | 116 | 10 | 14 | 270 |
012.30/40.1000 | 12 | 1185.6 | 96 | 12 | 16.7 | ||||||||||||||||||
16 | 011.40.1120 | 1242 | 998 | 100 | 1198 | 1042 | 36 | 22 | M20 | 40 | 6 | 1121 | 1118 | 90 | 10 | 80 | 0.5 | 10 | 1298 | 127 | 10 | 14 | 300 |
012.30/40.1120 | 12 | 1305.6 | 106 | 12 | 16.7 | ||||||||||||||||||
17 | 011.45.1250 | 1390 | 1110 | 110 | 1337 | 1163 | 40 | 26 | M24 | 48 | 5 | 1252 | 1248 | 100 | 10 | 90 | 0.5 | 12 | 1449.6 | 118 | 13.5 | 18.8 | 420 |
012.35/45.1250 | 14 | 1453.2 | 101 | 15.8 | 21.9 | ||||||||||||||||||
18 | 011.45.1400 | 1540 | 1260 | 110 | 1487 | 1313 | 40 | 26 | M24 | 48 | 5 | 1402 | 1398 | 100 | 10 | 90 | 0.5 | 12 | 1605.6 | 131 | 13.5 | 18.8 | 480 |
012.35/45.1400 | 14 | 1607.2 | 112 | 15.5 | 21.9 | ||||||||||||||||||
19 | 011.45.1600 | 1740 | 1460 | 110 | 1687 | 1513 | 45 | 26 | M24 | 48 | 5 | 1602 | 1598 | 100 | 10 | 90 | 0.5 | 14 | 1817.2 | 127 | 15.8 | 21.9 | 550 |
012.35/45.1600 | 16 | 1820.8 | 111 | 18.1 | 25 | ||||||||||||||||||
20 | 011.45.1800 | 1940 | 1660 | 110 | 1887 | 1713 | 45 | 26 | M24 | 48 | 5 | 1801 1802 |
1798 | 100 | 10 | 90 | 0.5 | 14 | 2013.2 | 141 | 15.8 | 21.9 | 610 |
012.35/45.1800 | 16 | 2012.8 | 123 | 18.1 | 25 | ||||||||||||||||||
21 | 011.40/60.2000 | 2178 | 1825 | 144 | 2110 | 1891 | 48 | 33 | M30 | 60 | 8 | 2001 2002 |
1998 | 132 | 12 | 120 | 0.5 | 16 | 2268.8 | 139 | 24.1 | 33.3 | 1100 |
012.40/60.2000 | 18 | 2264.4 | 123 | 27.1 | 37.5 | ||||||||||||||||||
22 | 011.40/60.2240 | 2418 | 2065 | 144 | 2350 | 2131 | 48 | 33 | M30 | 60 | 8 | 2241 2242 |
2238 | 132 | 12 | 120 | 0.5 | 16 | 2492.8 | 153 | 24.1 | 33.3 | 1250 |
012.40/60.2240 | 18 | 2498.4 | 136 | 27.1 | 37.5 | ||||||||||||||||||
23 | 011.40/60.2500 | 2678 | 2325 | 144 | 2610 | 2391 | 56 | 33 | M30 | 60 | 8 | 2501 2502 |
2498 | 132 | 12 | 120 | 0.5 | 18 | 2768.4 | 151 | 27.1 | 37.5 | 1400 |
012.40/60.2500 | 20 | 2776 | 136 | 30.1 | 41.8 | ||||||||||||||||||
24 | 011.40/60.2800 | 2978 | 2625 | 144 | 2910 | 2691 | 56 | 33 | M30 | 60 | 8 | 2802 | 2798 | 132 | 12 | 120 | 0.5 | 18 | 3074.4 | 168 | 27.1 | 37.5 | 1600 |
012.40/60.2800 | 20 | 3076 | 151 | 30.1 | 41.8 | ||||||||||||||||||
25 | 011.50/75.3150 | 3376 | 2922 | 174 | 3286 | 3014 | 56 | 45 | M42 | 84 | 8 | 3152 | 3147 | 162 | 12 | 150 | 0.5 | 20 | 3476 | 171 | 37.7 | 52.2 | 2800 |
012.50/75.3150 | 22 | 3471.6 | 155 | 41.5 | 57.4 |
Note:
1. n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
2. n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. “K” is addendum reduction coefficient.
is a slewing bearing manufacturer specializing in standard and non-standard slewing bearing.Over the years, we supplied high quality product & good service to every user and gain good credit.We have strict quality control system in our own factory,meanwhile, we have passed ISO9001-2008 Quality System Certification and JG/T66-1999, JG/T67-1999, JG/T68-1999, JB/T2300-1999 with our country’s engineering & machinery standards.
Since its establishment, our factory has been developing first world class products with adhering the principle
of quality first. Our products have gained excellent reputation in the industry and valuabletrusty among new and old customers..
