SLT-800

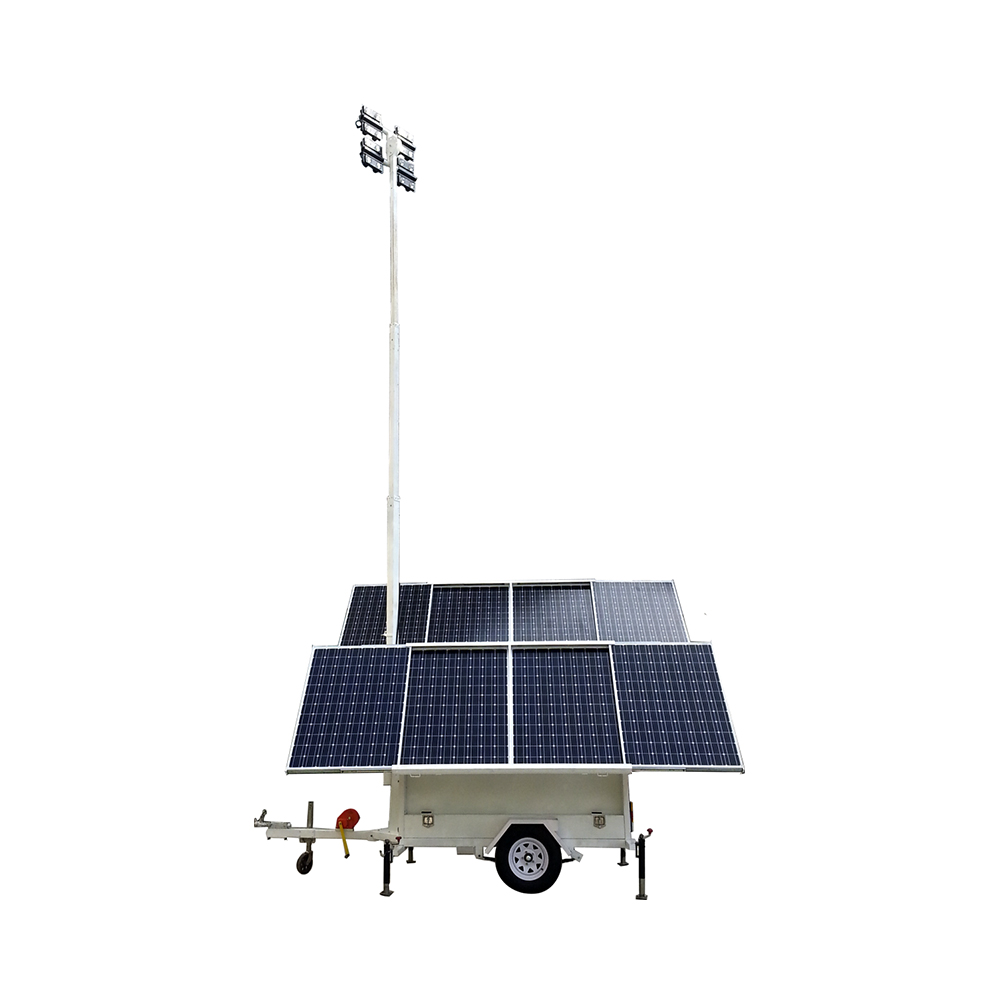

The Brighter electronics SLT-800 Solar powered LED Light Plant provides operators with a clean energy alternative to generator powered light towers. This solar generator is equipped with eight 200 watt LED light fixtures, a 30 pneumatic mast, automated actuators For raising and lowering the solar panels, and provides continual operation for up to 42 hours. The mobile solar LED light tower can be ran continuous, operated via a dust to dawn sensor, or built in timers for increased usage flexibility in the field.
Fully Solar, No Fuel Needed
1.6KW Solar Generator
Two 795W Solar Arrays- Single Trailer
Hydraulic Actuator for Raising/Lowering Panel
Automatic Timer and dusk-to-Dawn sensor
Maximum Power Point Tracking（MPPT） Charge Controller
AC Battery Bank Rapid Charger w/ 100 Cable& 20A Plug
Solar Compatible Electrical Switches& Breakers
1400 CFM Cooling Fan
12V DC Deep Cycle AGM Batteries-1000AH
Sealed Batteries -Maintenance Free
Lights Operational While Charging
Up to 42 Hours Operational Runtime on Single Charge
Battery State/ Charge Meter w/ Visual Display
Manual Light Tower Extends 30 Above Trailer Deck Height
360° Mast Rotation w/ Position Key-way Locks
200 Watt LED Lights-88， 000 Lumens
50,000+ Hour LED Lamp Life-CREE LEDS
70% Lumen Retention after 50.000 Hours
Durable neMa 3R Ventilated Housing to protect solar and Power generation Components
2“Ball Hitch or 3″Pintle Hitch w/ Height Adjustment
16′X 6′ Trailer bed -<13′ Towing Height
3,000 lbs Towing Weight
High Wind Locking Stabilization Arms for Solar Panels
4-Corner D-Rings for Transportation
Side Access forklift skid Pockets
|
Brighter |
|||
| Brighter |
Mobile Light Tower |
||
| Lumens | 88000 | Illuminating Field | 5 to 7 acres |
| Lamps | LED | Battery Capacity | 1600AH |
| Mast | Manual | Wattage | 4*200W |
| Battery Voltage | 24V or 48V | Rotation | 360 degrees |
| Lamp Cable Connection | IP 65 | Maximum Height | 30 FT/9M |
| Solar Panel Type | Monocryslline silicon tempered glass | Type of Lamp | LED lamp,110L/W |
| Solar Panel Total Watt | 8*200W | Dimensions | 2750*1750*2380MM(L*W*H) |
| Trailer | With 5 points manual outriggers extended and all jack down | Weight | 1400 KG |
