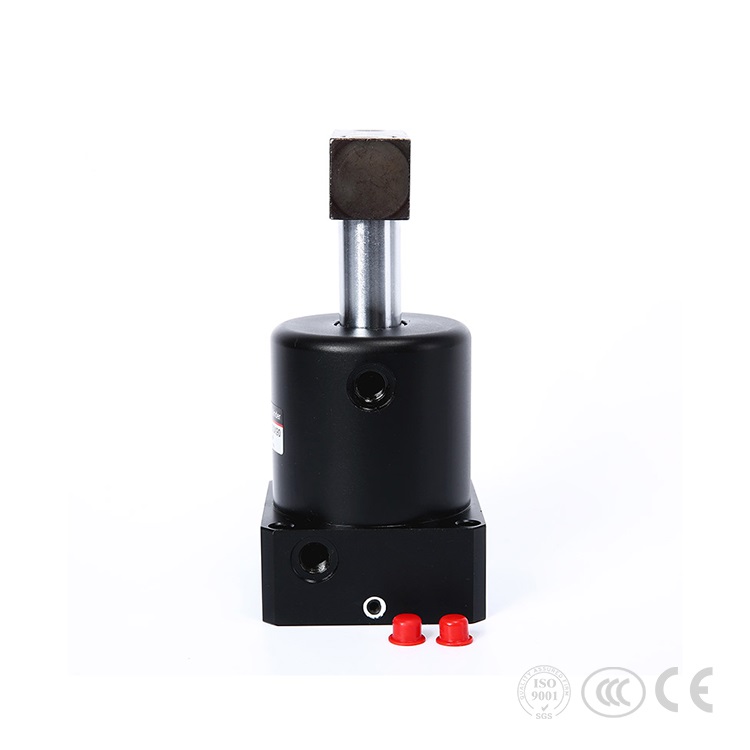

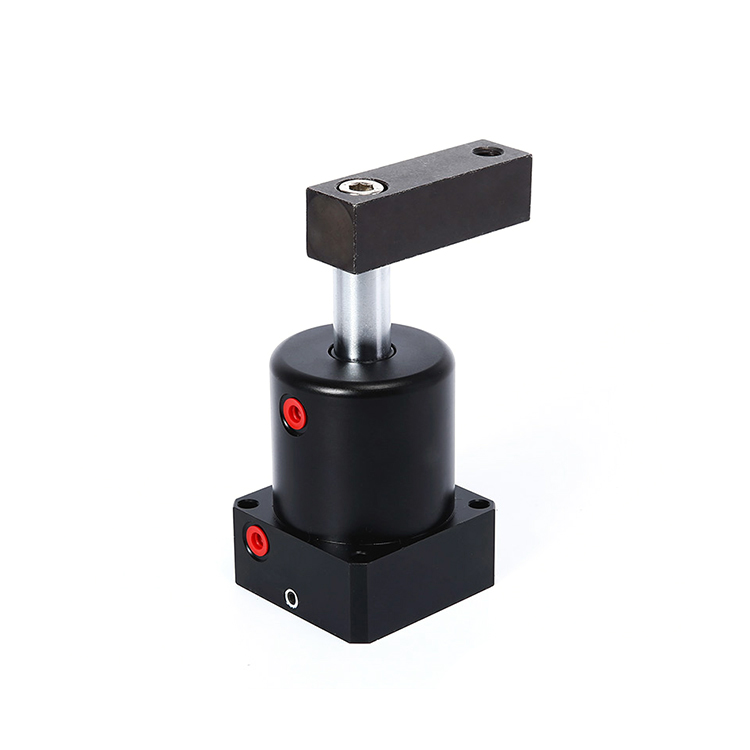

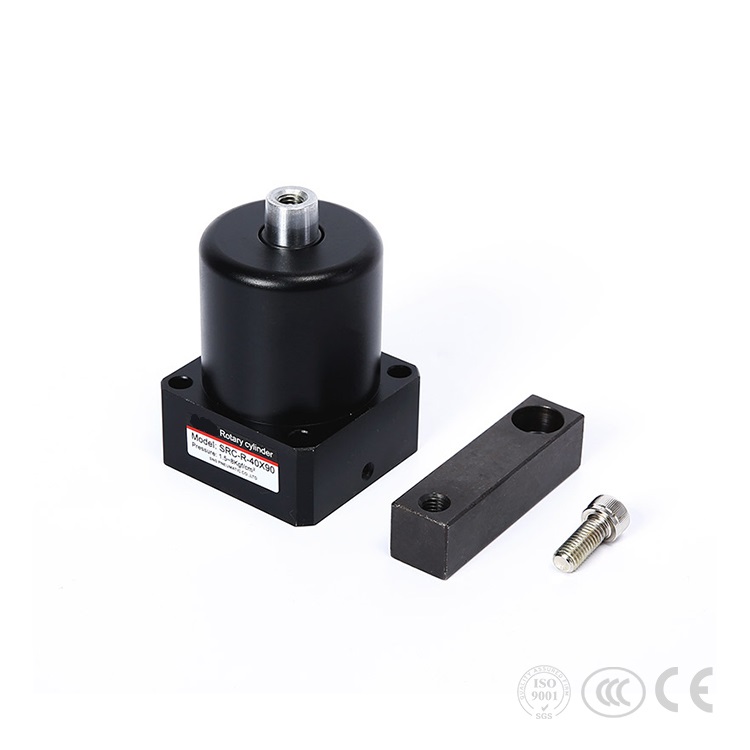

SRC Series Factory supply rotary hydraulic clamping pneumatic air cylinder

Short Description:

1.Engery saving and environmental protection with big low rate,safety and precision 2.Can work at the low pressure,smartness for on and off,good seal performance2.Single action and double action types for your selection4.Widely used in the food,machin,industry,abstersion,lanification,printing and other area


Product Detail

Product Tags

Product Description





 src=



Project Bpre Size(mm) 25 32 40 50 63
Working Type Double acting
Fluid Air
Pressure Range Kgf/cm^2(Kpa) 1.5~9.5(150~950
Temperature      °C 0~60
Working Speed  mm/sec 30~500
Rotatin Angle  mm 11 13 15
Down Stroke   mm 11 13 15
Rotation Angle 90 °can be customized(0°,45°,60°)
Direction Of Rotation Turn left (from right to left)-L; turn right (from left to right)-R
Buffering Rubber Cushion
Lubrication Freely Supply
Port size M5*0.8 M5*0.8
