China Steel Flange Adapter Flange Plate / Backing Ring Manufacturer and Supplier

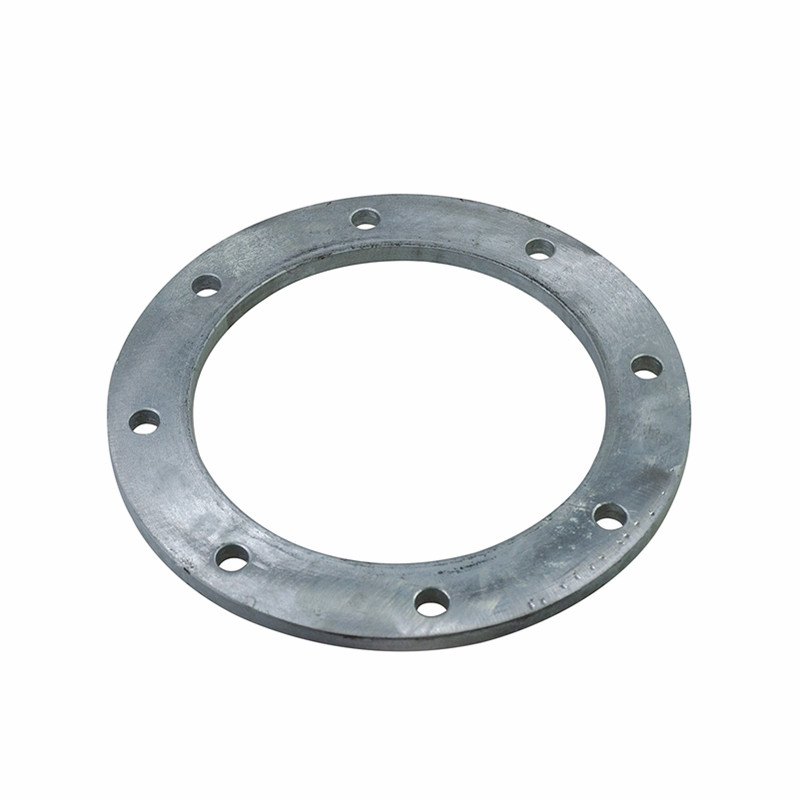

Steel Flange Adapter Flange Plate / Backing Ring

Short Description:

1. Name : Galvanised Steel Plate/ PP with Steel Core/Stainless Steel

2. Size : dn20-dn1200mm

3. PN16 or PN 10/ EN1092-1, ANSI150, AS2129/AS4087

Send email to us

Product Detail

Product Tags

Detail Information

Product Name:

Connection:

Standard:

Material:

Pressure:

Application:

Flange Plate OR Backing Ring For HDPE Fittings Flange Adapter For Gas And Water Supply PN16 SDR11 PE100	Flange Connection

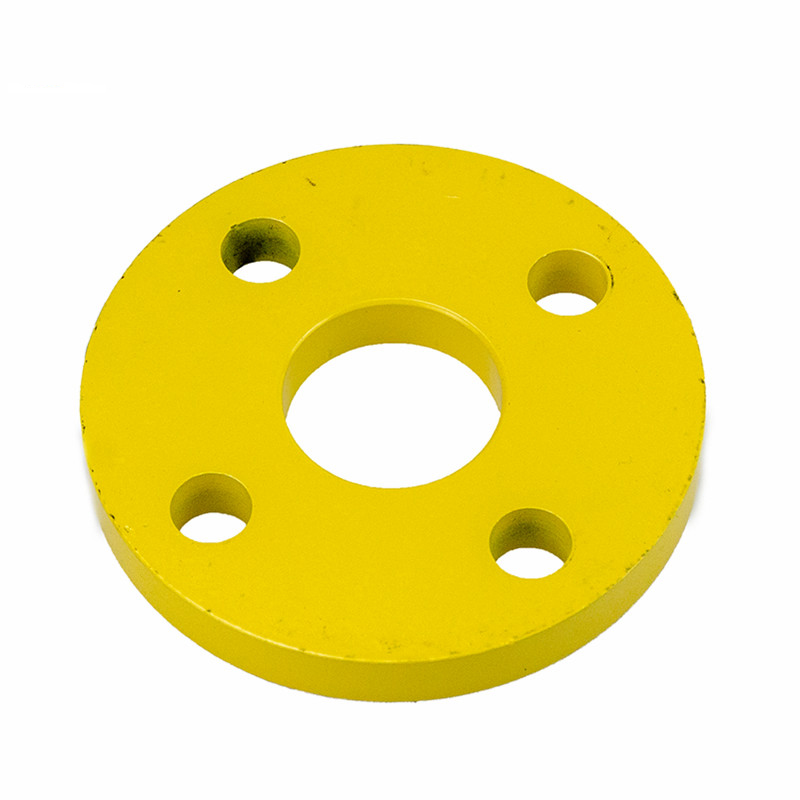

EN 12201-3:2011,EN 1555-3:2010	Nylon Coated Flange Plate(PN16)
PN16 PN10	Gas,Water,Oil Etc

Product Description

Model Number:Carbon Steel Flanges

Standard:ANSI, DIN, JIS

Product name:Carbon Steel Flanges

usage:pipe connection

Technology:forged

Pressure:150-1500Lbs

Type:WN THREAD BL SW LJ

Surface:Black Paint or Antidust Oil

water line:with or without

Application:Pipe Fitting;Industrial;Machinery;Construction

Packing:Plywoodwooden Pallets

Material:Carbon steel;stainless steel

Specification

Specification		ΦD	K	ΦE-n
PE	Steel	ΦD	K	diameter	No.
40	32	130	100	18	4
50	40	140	110	18	4
63	50	155	125	18	4
75	65	177	145	18	4
90	80	190	160	18	8
110	100	212	180	18	8
125	100	212	180	18	8
140	125	240	210	18	8
160	150	277	240	22	8
180	150	277	240	22	8
200	200	330	295	22	8
225	200	330	295	22	8
250	250	400	355	26	12
280	250	400	355	26	12
315	300	445	410	26	12
355	350	505	470	26	16
400	400	565	525	30	16
450	450	625	585	30	20
500	500	700	650	34	20
560	600	825	770	36	20
630	600	825	770	36	20

Details

SABS 1123 Flange Flanges Size Chart SABS 1123 Flange Flanges Standards SABS 1123 Flange Flanges Pressure Rating ANSI SABS 1123 Flange Flanges Pressure Calculation in DIN JIS UNI EN Coating Most common types of SABS 1123 Flange Test Certificates Production technique Connect Type/ Flange Face Type Special design Test Equipment Origin Manufacturer of SABS 1123 Flange Flanges Uses & application

1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64

5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K

6Bar 10Bar 16Bar 25Bar 40Bar

Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized

Forged / Threaded / Screwed / Plate

EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

Forged, Heat treated and machined

Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2″) to 200 NB (8″)
Equal and Reducing Configurations

Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector

Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc

China

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
SABS 1123 Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
