Steel Suspended Working Platform ZLP630
Products description:
We supply competitive advantage suspended platform:aluminium,steel painted and steel galvanized zinc
ZLP500,ZLP630,ZLP800 wide application for building maintenance,paining,cleaning
|
Suspended Working Platform
|
| Model Suspended Platform | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Rated load | 640kg | 630kg | 800kg | 1000kg |
| Lifting speed | 9-10m/min | 9-10m/min | 8-9m/min | 8m/min |
| Length of working platform | 5 meters | 6 meters | 7.5 meters | 7.5 meters |
| Hoist motor | LTD6.3 | LTD6.3 | LTD8.0 | LTD10 |
| Motor power | 2*1.5kw single phase 220v |
2*1.5kw single phase 220v |
2*1.8kw single phase 380v |
2*2.2KW single phase 380v |
| Steel wire rope | 8.3mm | 8.3mm | 8.6mm | 9.1mm |
| Cable | 100m | 100m | 100m | 100m |
| Lifting height | 100m | 100m | 100m | 100m |
| Electric Control Box | Schneider Brand | |||

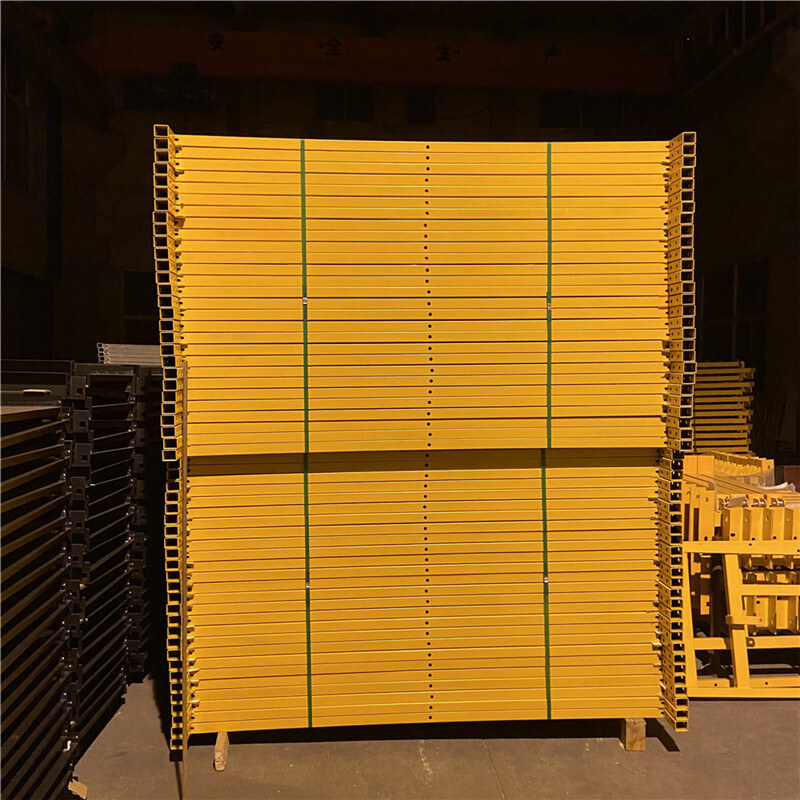

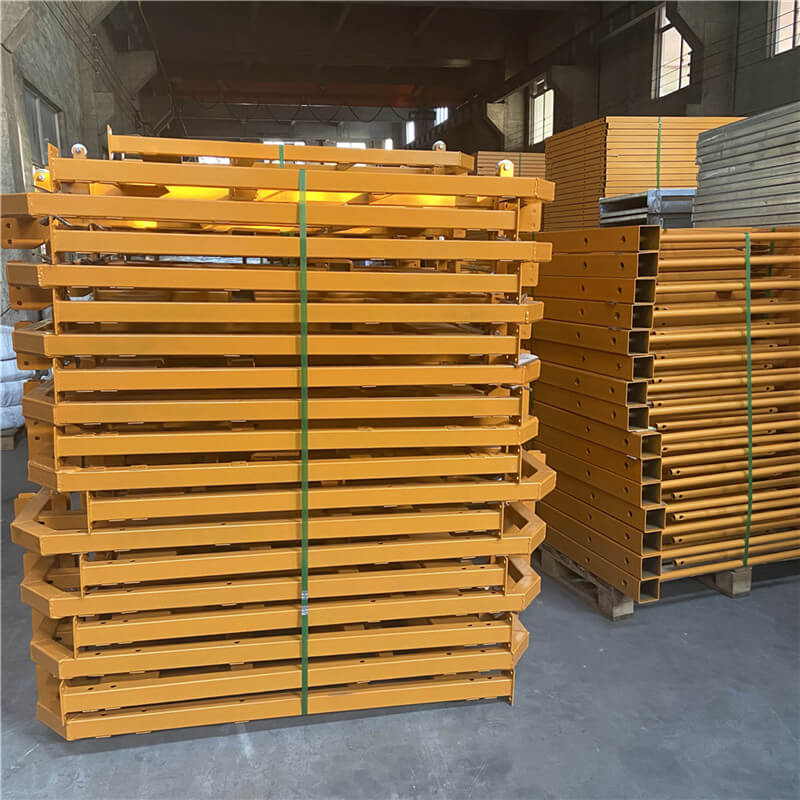

Suspended Platform pictures:

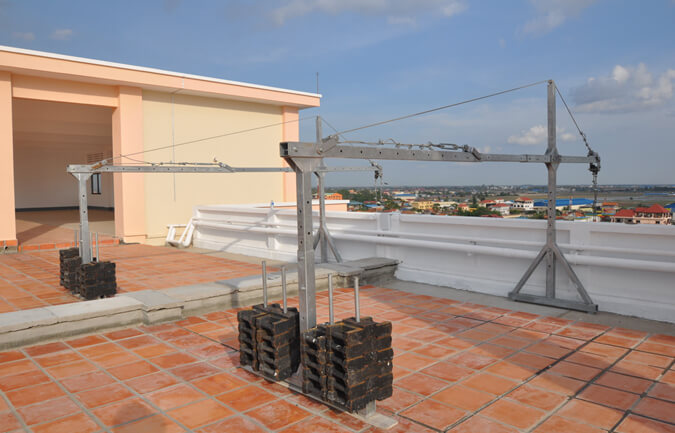

Suspension mechanism:

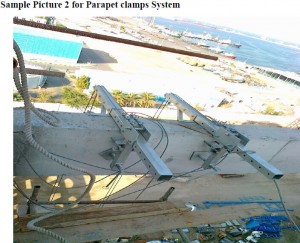

counter weight system and parapet cpamp system
WHY CHOOSE YASMIN?
You are working with a professional team,high quality can be depended.
There is ready stock for our regular hot selling models.
Any order quantity is welcome
We’ll treat every email within 24hours.
WHY CHOOSE US
Since its establishment, our factory has been developing first world class products with adhering the principle
of quality first. Our products have gained excellent reputation in the industry and valuabletrusty among new and old customers..
