Strong K1 K3 K5 Moving Bed Biofilm Reactor MBBR Media
Product Features

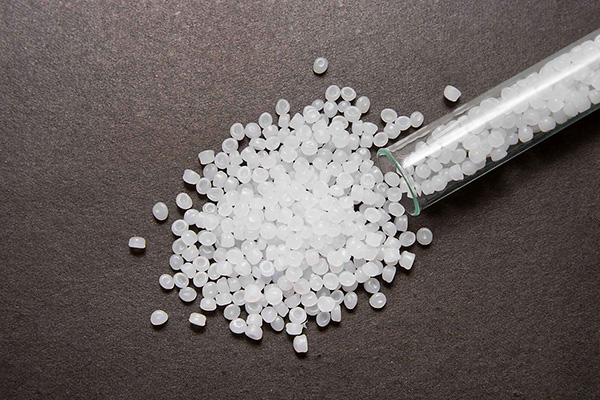

1.Use virgin HDPE (no recycle) as the raw material with additive of special formula including UV and hydrophilic genes, FDA food grade.Geometric configuration based on hydrodynamics to strengthen the surface adhesive ability. it is polymer material, having high shock resistance.

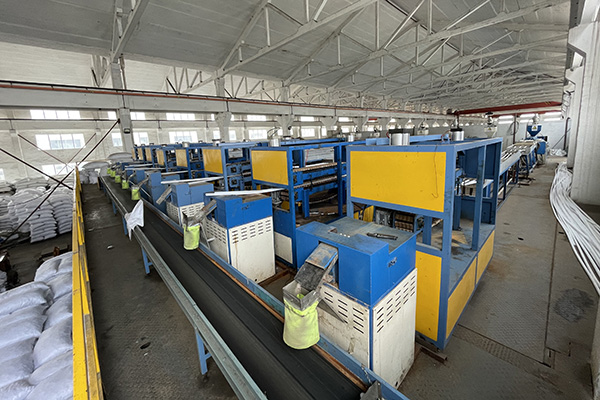

2.20 high-speed production lines,production speed is 1.5 times that of others.Large specific surface aera, many adhesive biologia.It not only provides the room for heterotrophic bacteria growing but also create the condition for autotrophic bacteria growing. Meanwhile, it is beneficial for the biologia to denitrification and dephosphorization.
3.anaerobic tank.No need of bracket, easy to fluidify, save energy consumption.The suitable specific weight makes the filler in suspended fluidization state, reducing the eneray consumption and increasing the shock and cutting of bubbles. In the same condition, the aeration amount can be lowered by above 10%.
Typical Applications

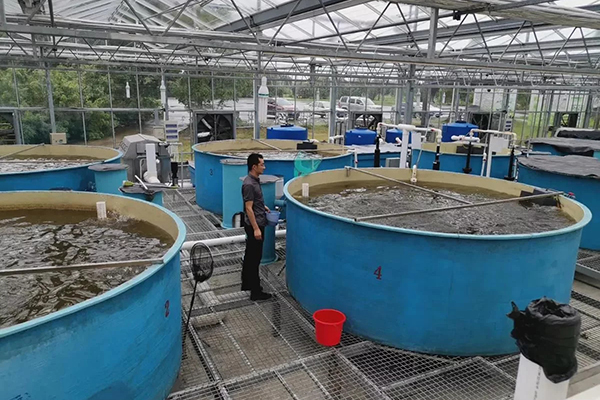

1.Aquaculture Sewage
2.Artificial Wetland
3.Artificial Wetland

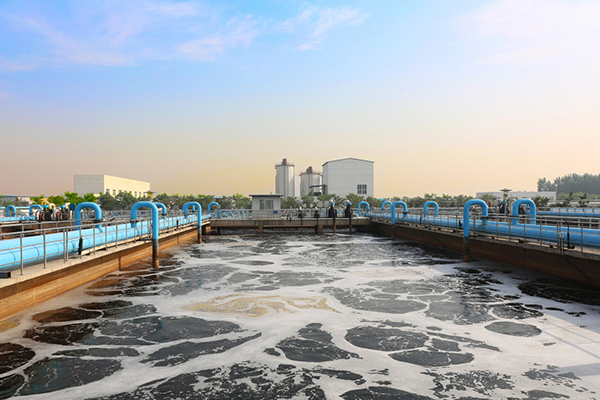

4.Industrial Sewage
Packing and Delivery
0.1cbm/bag
20GP=28-30cbm
40GP=60cbm
40HQ=68-70cbm
Technical Parameters

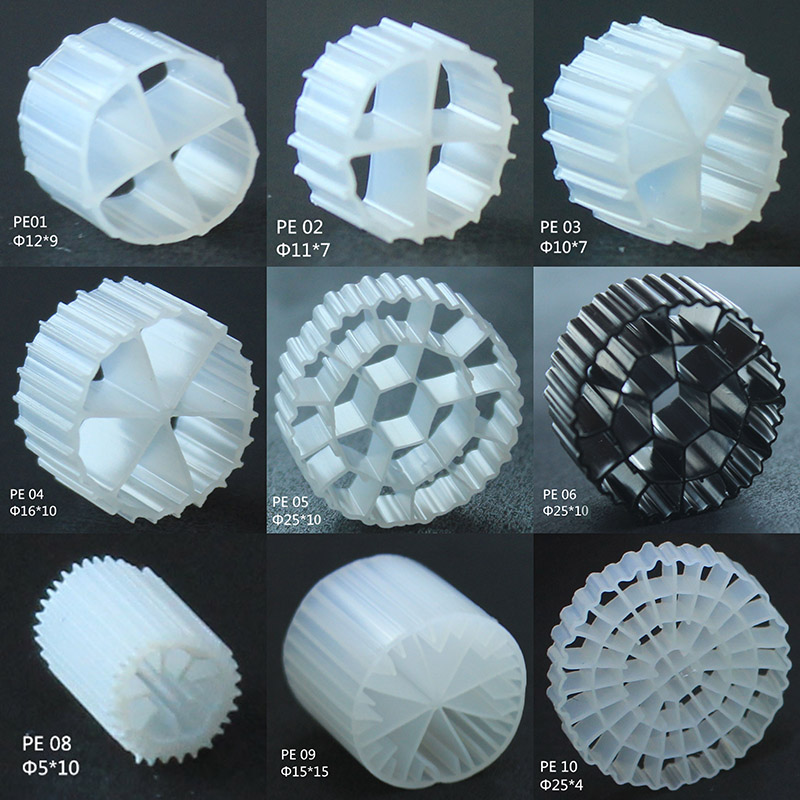

| PE01 | PE02 | PE03 | PE04 | PE05 | PE06 | PE08 | PE09 | PE10 | |
| mm | φ12*9 | φ11*7 | φ10*7 | φ16*10 | φ25*10 | φ25*10 | φ5*10 | φ15*15 | φ25*4 |
| nos. | 4 | 4 | 5 | 6 | 19 | 19 | 8 | 40 | 64 |
| m2/m3 | >800 | >900 | >1000 | >800 | >500 | >500 | >3500 | >900 | >1200 |
| g/cm3 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 1.02-1.05 | 1.02-1.05 | 0.96-0.98 | 0.96-0.98 |
| pcs/m3 | >630000 | >830000 | >850000 | >260000 | >97000 | >97000 | >2000000 | >230000 | >210000 |
| % | >85 | >85 | >85 | >85 | >90 | >90 | >80 | >85 | >85 |
| % | 15-67 | 15-68 | 15-70 | 15-67 | 15-65 | 15-65 | 15-70 | 15-65 | 15-65 |
| days | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 |
| gNH4-N/m3.d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 500-1400 | 500-1400 | 500-1400 |
| gBOD5/m3.d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2500-15000 | 2500-15000 | 2500-20000 |
| gCOD/m3.d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2500-20000 | 2500-20000 | 2500-20000 |
| ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
| year | >15 | >15 | >15 | >15 | >15 | >15 | >15 | >15 | >15 |
