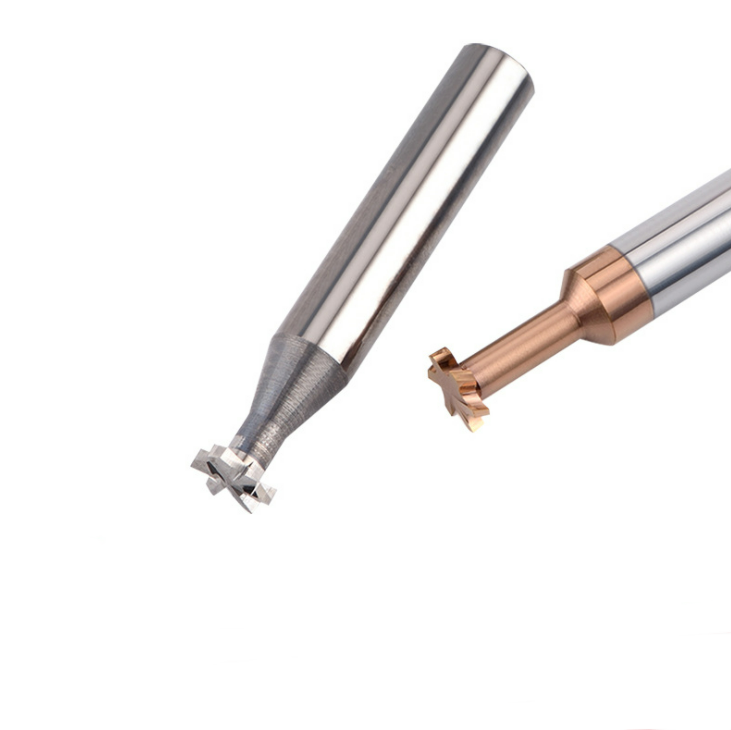

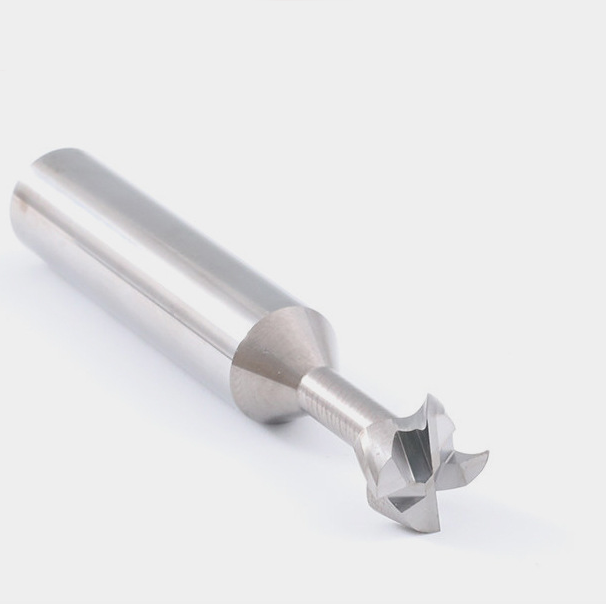

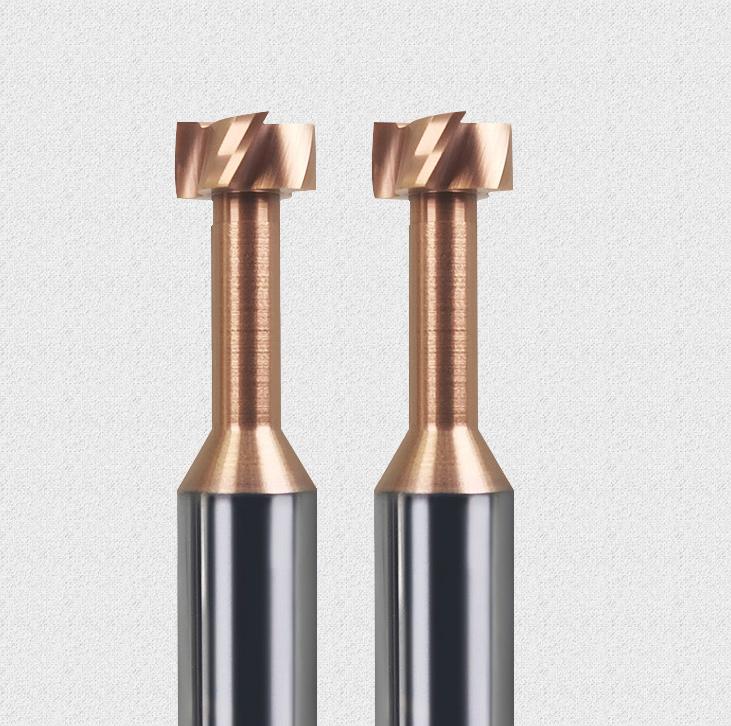

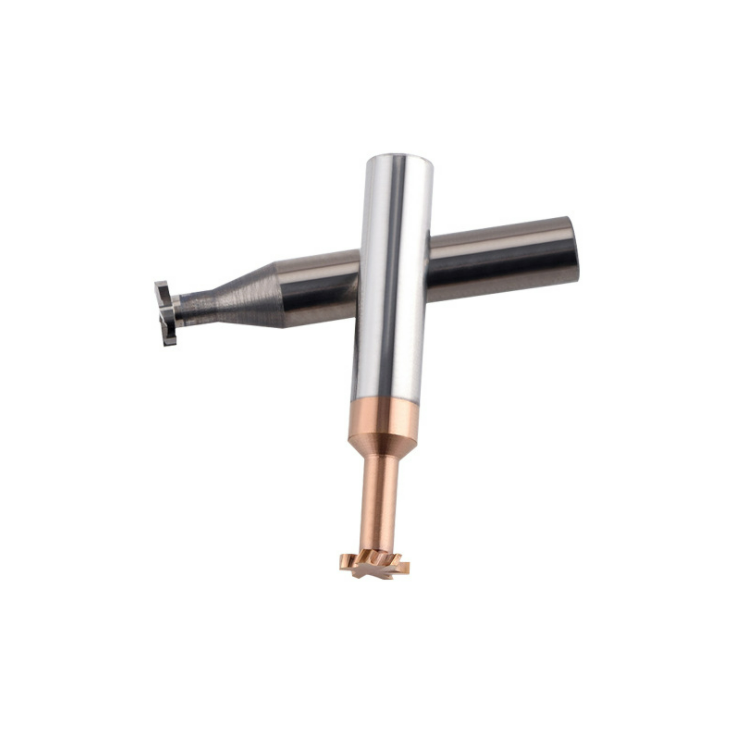

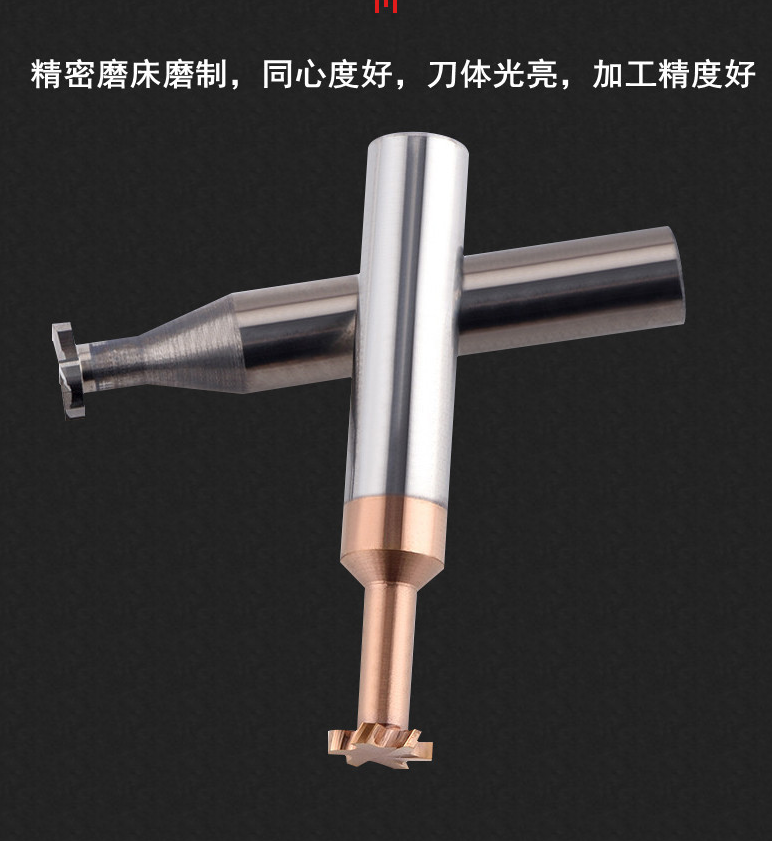

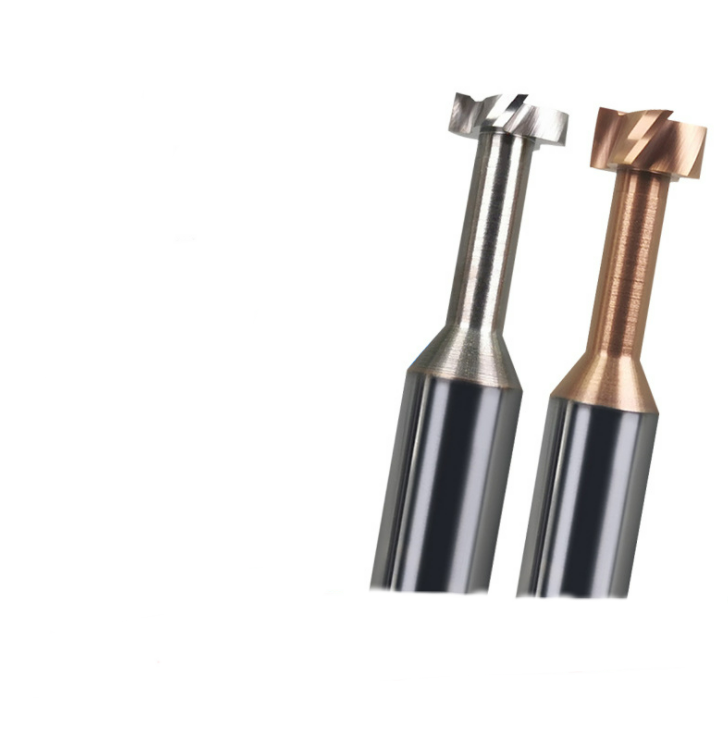

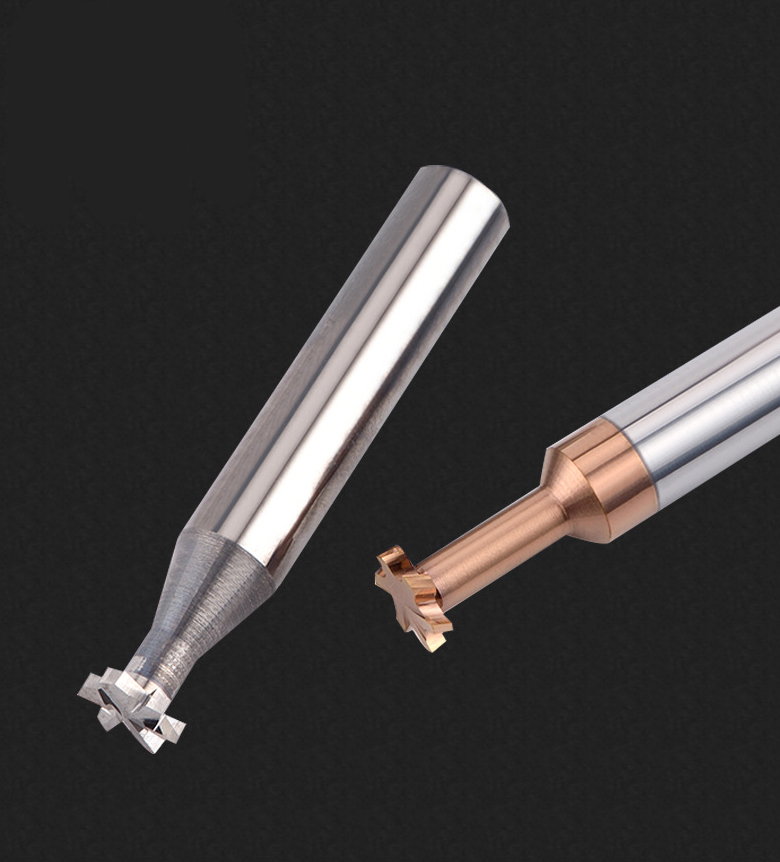

T-slot End Mill Cutter For Milling Machine
For high performance T-slot milling with high feed rates and depths of cut. Also suitable for groove bottom machining in circular milling applications. Tangentially installed indexable inserts warrant optimum chip removal paired with high performance at all times.
Technology:
Knife-edge mirror grinding process
Use good materials
Fast and durable
| Brand | MSK | Material | Die steel, cast iron, carbon steel, alloy steel, tool steel, general iron |
| Type | End Mill | Flute Diameter D(mm) |
|
| Certification |
|
Package | Box |
APPLICATIONS
For milling T-slots in the tables and beds of machine tools and similar applications.
A vertical slot must be cut first, so that the neck and shank can enter the cut.
Advantage:
1. Imported tungsten steel bars are selected, with high hardness and wear resistance, sharp and not easy to short knives, and long service life
2. Knife edge design, rounded craftsmanship, excellent material selection, and large cutting design greatly improve the smoothness.
3. Sharp blade. The cutting edge is sharp, making the cutting smooth, and the anti-vibration design of the cutting edge can effectively improve the processing stability and surface quality.
4. Chamfer design, standard chamfer size, 45 degree chamfer, round and smooth contour, making it easier to install.
| Flute Diameter(mm) | Thickness (mm) | Head Diameter(mm) | Head Length(mm) | Length(mm) | Flute |
| 3 | 1/1.5/2/2.5/3 | 1.5 | 6 | 50 | 4 |
| 4 | 1/1.5/2/2.5/3 | 2 | 6 | 50 | 4 |
| 5 | 1/1.5/2/2.5/3 | 2.5 | 10 | 50 | 4 |
| 6 | 1/1.5/2/2.5/3 | 3 | 10 | 50 | 4 |
| 7 | 1/1.5/2/2.5/3 | 3.5 | 12 | 60 | 4 |
| 8 | 1/1.5/2/2.5/3 | 4 | 12 | 60 | 4 |
| 9 | 1/1.5/2/2.5/3 | 4.5 | 15 | 60 | 4 |
| 0 | 1/1.5/2/2.5/3 | 5 | 15 | 60 | 6 |
| 11 | 1/1.5/2/2.5/3 | 5.5 | 15 | 60 | 6 |
| 2 | 1/1.5/2/2.5/3 | 6 | 15 | 60 | 6 |
| 4 | 1/1.5/2/2.5/3 | 7 | 20 | 65 | 6 |
| 6 | 1/1.5/2/2.5/3 | 8 | 20 | 65 | 6 |
| 20 | 1/1.5/2/2.5/3 | 10 | 25 | 75 | 6 |
Use:
Widely used in many fields
Aviation Manufacturing
Machine Production
Car manufacturer
Mold making
Electrical Manufacturing
Lathe processing
