Product Description

The temperature control panel refers to the thermostat. The thermostat is mainly composed of two parts, the circuit panel and the power module part. People usually refer to the temperature controller that controls and adjusts the temperature in the central air-conditioning system and the floor heating system as a temperature control panel.

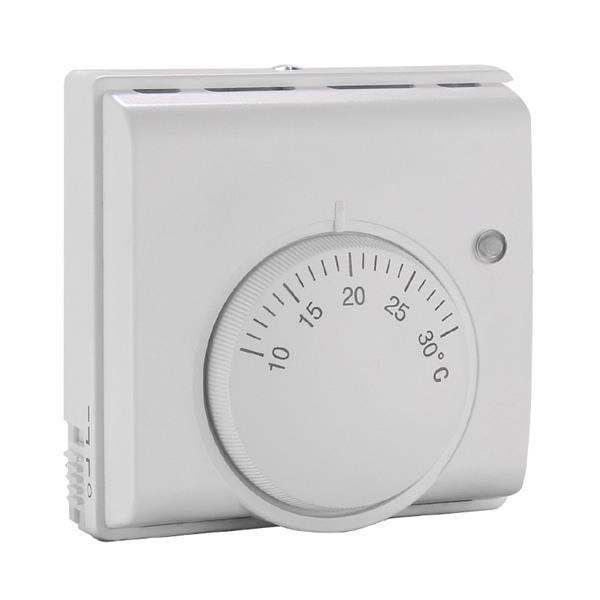

It can be divided into mechanical diaphragm temperature control panel, LCD temperature control panel, temperature control panel with remote control function, wireless temperature control panel, programmable temperature control panel, non-programmable temperature control panel, etc. Mainly used for wall-hung boiler plumbing control system, heating floor heating system control, water source heat pump temperature control panel.

Manual mode

Thermostat works according to the manual-set

temperature totally, not clock-controlled programmer.

Clock-controlled programmer mode

Programmed is circled weekly; for each week up to 6

heating events can be set separately. Heating events,

weekday and temperature can be individually tailored to

personal routines.

Temporarily set in programmer mode

Thermostat works according to the manual-set

temperature temporarily and then shifts back to clock-

controlled programmer until next event.

User operation

1)Press “M” shortly to change manual and clock- controlled

programmer mode.

Press “M” for 3 seconds to edit week programmer.

2)Press“” shortly to turn on/off the thermostat.

3)Press “” for 3 seconds to edit time and date.

4)Press “” or “” shortly to change setting temperature by 0.5°C.

5)Press  “” and “” at the same time over 3 seconds to activate child lock, “” appears.

To deactivate, press again. “” disappears.
