China Vibrating Road Marking Machine Manufacturer and Supplier

Vibrating Road Marking Machine

Short Description:

Model: ZH-ZD200

Dimension(L*W*H): 1350*930*1050mm

Weight: 228kg

Power: 5.5HPHonda engine

Paint Tank Capacity: 110kg

Glass bead box capacity: 20kg

Dispenser: Roller type dispenser

Landing knife: Cemented carbide

Travel drive: Inlet oil pressure stepless speed change traveling drive

Heating mode: LPG heating insulation

Work air pressure: 0.6Mpa

Thickness of foundation line: 1.8mm

Bulge height: 5-10mm

Bulge spacing: 0-999mm

Marking width: 150/200/300/400/450m

Send email to us

Product Detail

Product Tags

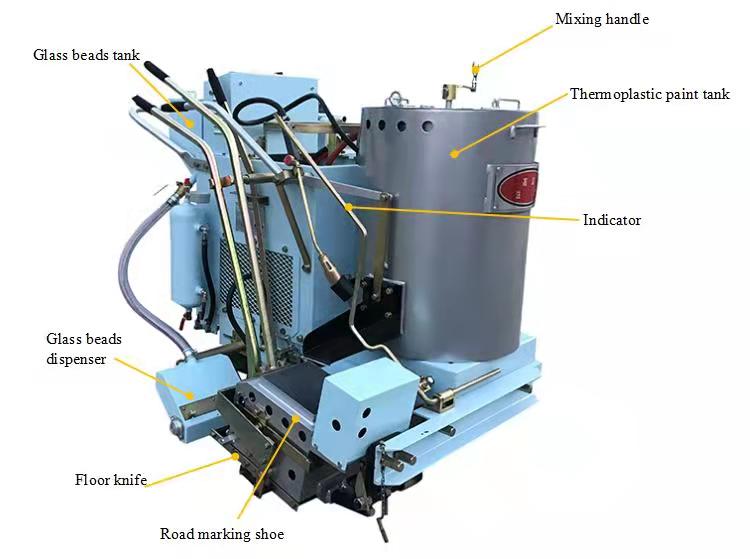

Product Description

1.Marking Hoppers are made of Special Alloy

2.Two Handles are designed for the Marking Hopper
3.Adjustable Handle and Carbide Toll help to work on uneven road
4.Special Rubber Wheels help to work more effectively and stably
5.Paint Tank of Double Layer Temperature Reservation Structure

Parameters

Name	Vibrating thermoplastic road marking machine
Model	ZH-ZD200
Size	1350×930×1050mm
Weight	228kg(without hopper）
Tank capacity	100kg
Glass beads box capacity	20kg
Marking thickness	1.2～2.5mm
Marking width	150/200/300/400/450mm
Arrow marking hopper	300mm
Zebra marking hopper	400/450mm
Speed of marking	1～1.5Km/h
Spreader	Roller spreader
Floor knife	Floating carbide floor knives
Heating method	Petroleum liquefied gas heating and insulation
