China VOCs treatment medium Polyhedral hollow ball Manufacturer and Supplier

VOCs treatment medium Polyhedral hollow ball

Short Description:

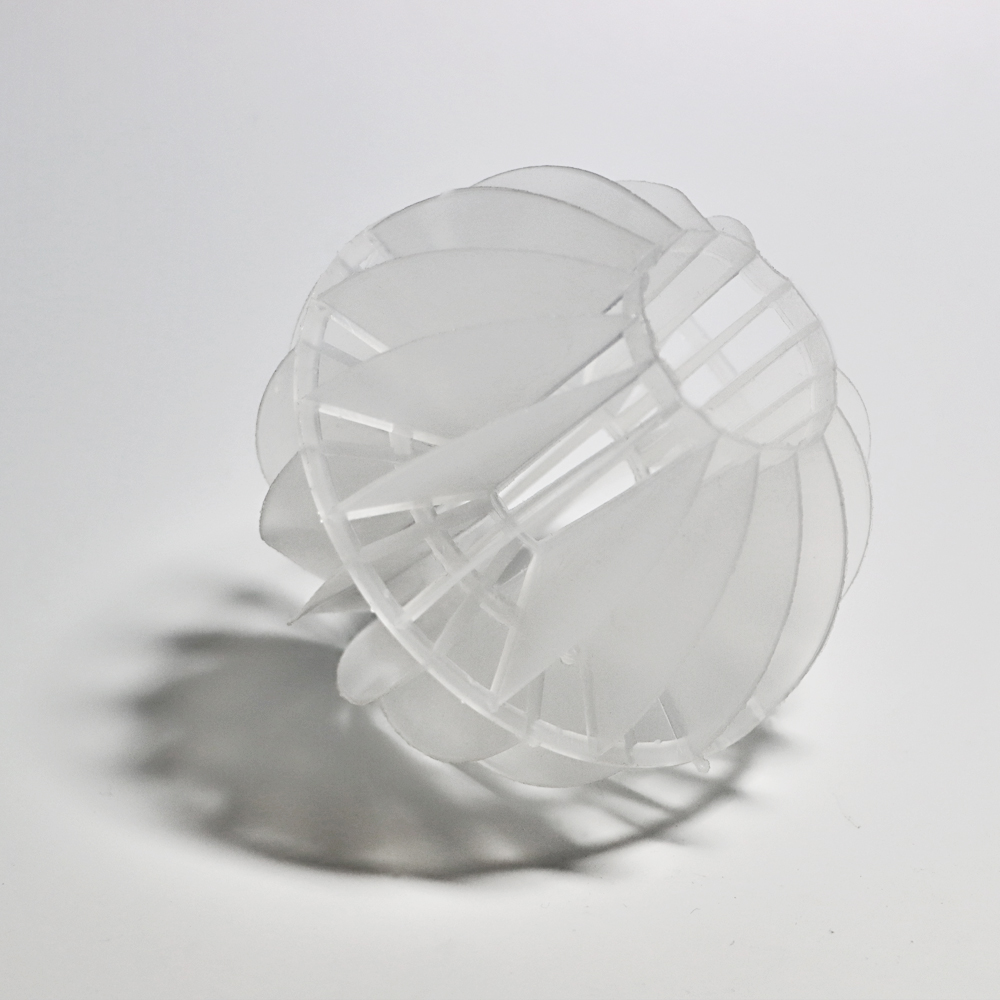

Plastic Polyhedral hollow ball is composed of two hemispheres which will form into a ball,and each hemisphere consists of a number of half fan-shaped leaves, the upper and lower leaves in a staggered arrangement. Each hemisphere’s fan-shaned leaves is like an air-liquid contacting area. However, when fan-shaped leaves stack each other, it is very easy to form partial occlusion so as to stop air movement. but never cause bridging & hole effect phenomenon. Therefore, it can be used in sewage treatment, desulfurization of CO2 in power plant, desulfuration and purified water tower packing.

Send email to us

Product Detail

Product Tags

Technical Parameter

Technical Parameter
Size mm	Specific area m²/m³	Void rate %	Bulk number Pieces/m³	Bulk Density Kg/m³
Φ25	460	90	64000	64
Φ38	325	91	25000	75
Φ50	237	91	11500	52
Φ76	214	92	3000	75
Φ100	330	92	1500	56

Trade Details

Related Trade Information
HS Code	3926909090
Package	1: Two Super sacks on Fumigation Pallet 2: 100L plastic woven bag on Fumigation Pallet 3: 500500500 mm carton on Fumigation Pallet 4: Upon your requirement
Process Method	Injection
Material	PP,PVC,PFA,PE,CPVC,PVDF,PPS.PES,E-CTFE,FRPP and so on
Typical Application	Widely used in chlorine gas, oxygen removal,in addition to carbon dioxide absorption tower, exhaust gas purification towers, acid mist purification tower, and other environmental protection equipment.
Production time	7 days against one 20GP container loading quantity
Executive standard	HG/T 3986-2016 or refer to your detailed requirement
Sample	Free samples within 500 Grams
Other	Accept EPC turnkey,OEM/OEM,Mold Customization,Installation&Guidance,Test, Entrusted design service etc.

Typical Application

Widely used in chlorine gas, oxygen removal,in addition to carbon dioxide absorption tower, exhaust gas purification towers, acid mist purification tower, and other environmental protection equipment.

Feature

1: High gas velocity, many blades and low resistance

2: Large specific surface area, which can fully solve the gas-liquid exchange

3: light weight, high strength, large free space, high temperature resistance, corrosion resistance, good surface hydrophilicity, low wind resistance, low power consumption, large specific surface area and suitable for a variety of solvent processing equipment.
