Water And Gas Supply HDPE Electrofusion Fittings , HDPE End Cap PN16 SDR11 PE100

Short Description:

1. Name : EF End Cap

2. Size : dn50-250mm

3. PE100 SDR11 Water PN16 or Gas 10 Bar

4. ISO4437/EN1555

Send email to us

Product Detail

Product Tags

Detail Information

Product Name:

Specification:

Standard:

Application:

Material:

Port:

Electrofusion HDPE Fittings End Cap For Water And Gas Supply PN16 SDR11 PE100	32mm~110*mm PE100 PN16 SDR11
EN 12201-3:2011,EN 1555-3:2010	Gas,Water,Oil Etc
PE100 Virgin Raw Material	China Main Port

Product Description

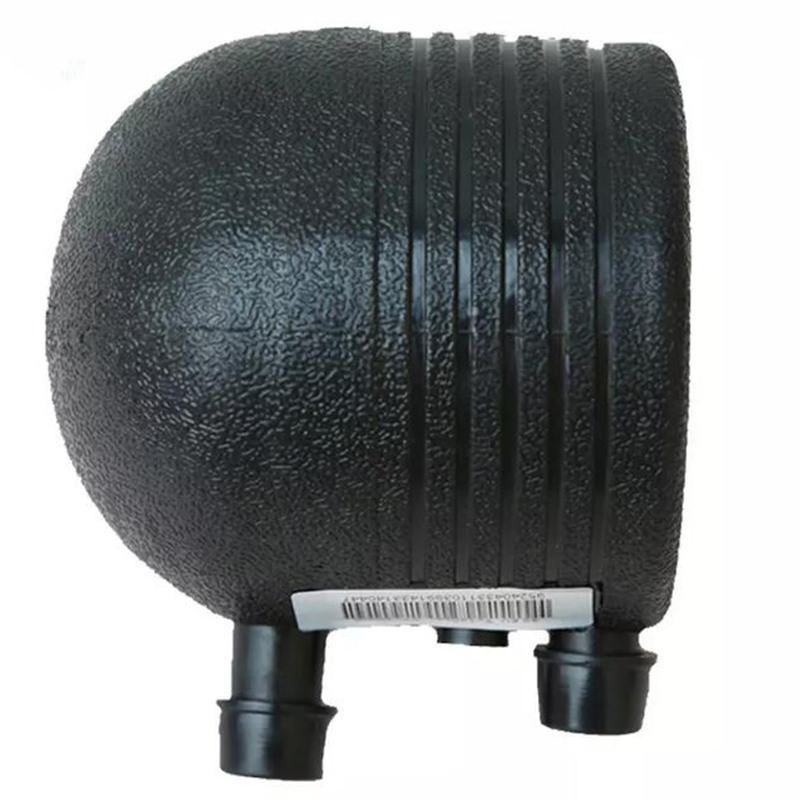

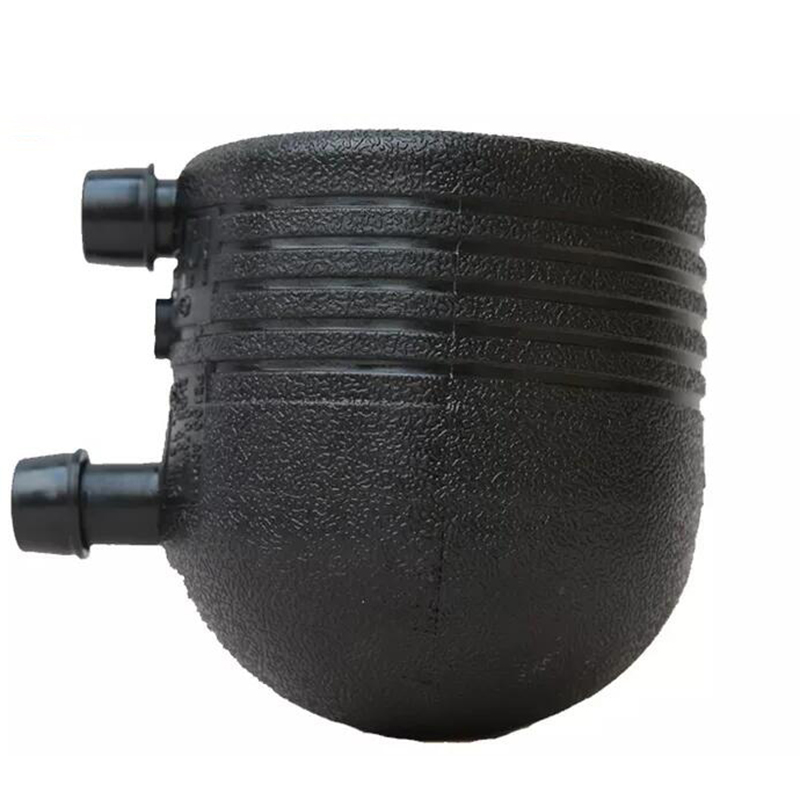

Electrofusion HDPE Fittings End Cap for Water and Gas supply PN16 SDR11 PE100

Production Description of Electrofusion HDPE End Cap

Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together:

After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Specification

Specification φD	L	A	φd
32	60	45	4.7
40	70	55	4.7
50	70	55	4.7
63	80	55	4.7
90	95	55	4.7
110	105	70	4.7

Details

Products name	Electrofusion HDPE End Cap
Sizes Available	As below specification sheet in detail
SDR	SDR11,SDR17
PN	PN16,PN10
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 12201-3:2011,EN 1555-3:2010
Colors Available	Black color , blue color, Orange or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity.Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Factory Test report

Test item	Standard	Conditions	Results	Unit
1.Melt Flow Index	ISO1133	190°C & 5.0Kg 0.2-0.7	0.49	g/10min
2.Density	ISO1183	@23°C ≥0.95	0.960	g/cm3
3.Oxidation Induction Time	ISO11357	210°C >20	39	Min
4. Hydrostatic Pressure Test	ISO1167	80°C 165h, 5.4Mpa	Passed
5 Size Check	ISO3126	23°C	Passed
6 Appearance	Clean& Smooth	23°C	Passed

The results according to test 1-3 are taken form the PE raw material supplier’s report.
The results according to test 4-6 are taken from the internal test results of fittings sampled from the
same batch as delivered fittings.
Marking according EN 12201 – 3 and EN 1555 – 3.
The pass/fail criteria are based on the requirements of the UNI EN 12201 and UNI EN 1555 standards.

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification.All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
