Welded Wire Mesh Fence by Hebei chiefence. Supplier from China

Short Description:

Welded mesh fence also called “3D FENCE” “medium-security fence”. It is an economical version of steel fence. The panel is welded with low carbon steel wire. Material Grade: Q195, Surface treatment by Electrostatic polyester powder stray coating(Powder-coated) over galvanized materials. And then connect the fence panels with post by suitable clamps(Clips). Due to its Simple structure, Easy installation and Beautiful appearance. More customers regard welded mesh fence as the preferred common protective fence.


Product Detail

Product Tags

FEATURES

●    Lower budget
●    See-through panel
●    Anti-rust, Long Service Life
●    Fast Installation
●    Customer specs available
●    Rigidity

COLORS AVAILABLE

Welded Mesh Fence popular colors

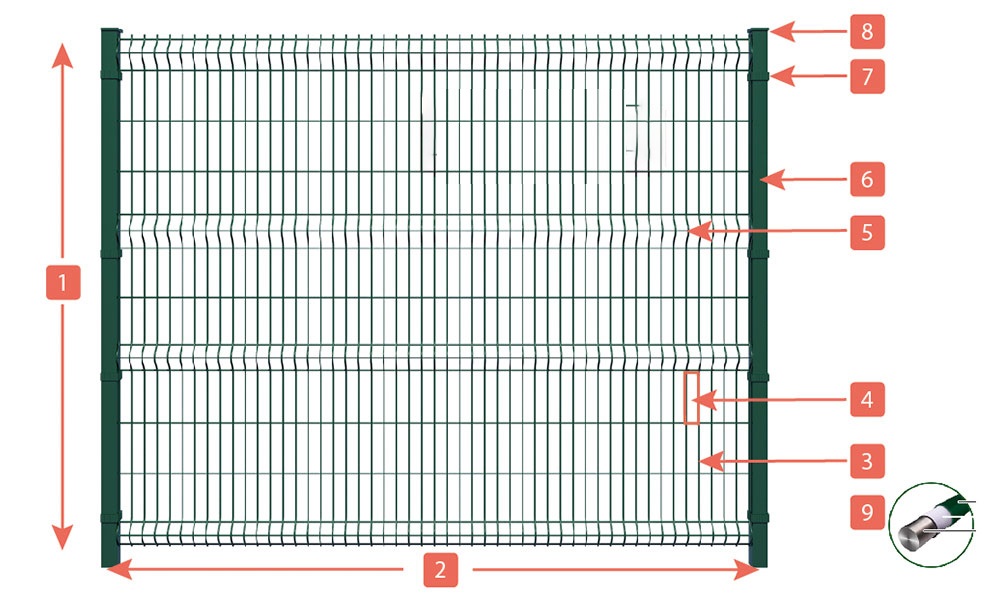

1

HEIGHT:1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm

The panels have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). The heavy wires guarantee strength and rigidity.

2

WIDTH: 2300mm / 2500mm / 2900mm

●  2900mm option can reduce installation & post cost by approx 20%,when compared with a 2.5m wide panel.
●  If the panel is higher than 2300mm, we will suggest 2300mm wide panel to suit for container size.

3

WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm

Thicker wire can offer stronger rigid

4

MESH SIZE: 50*200mm(center to center) / 50*200mm(edge to edge)

●  The 2 options are similar.

●  50*200mm(edge to edge) is lower budget

5

Popular bending method

A: 100mm

B: 200mm

C: 200mm without regid wire

D: 100mm with 2 regid wire

6

POST:

A: Rectangle post: 40*60mm

B: Square post: 60*60mm

C: Round post: φ60mm

D: “I ” post: 70*44mm (Double Quantity Clamps)

E: Peach post: 50*70mm & 70*100mm (Self-lock Type)

7

CONNECTIONS

S-1: PLASTIC CLAMP

S-2: PLASTIC CLAMP

A: Metal spider clamp

B: Metal Square clamp(2pc)

C: Metal square clamp(1pc)

D: Plastic square clamp

E: Plastic Round clamp

F: Metal Round clamp

8

SURFACE TREATMENT(ANTI-RUST TREATMENT):

A. Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

B. Electric Galvanized(8-12g/m²) + PVC Coated

C. Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

D. Hot Dipped galvanized(40-60g/m²) + PVC Coated

E. Hot Dipped Galvanized after welding (505g/m²)

F. Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

G. Galfan(200g/m²) + PVC Coated



Be manufactured using galvanized steel wire.

Be coated with exclusive Architectural Grade Powder Coat.

This coating is super-durable and environmentally sound. Our powder coating provides the industry’s Highest Weather ability and Gloss Retention in U.V. Exposure.

Up to 3 times longer than competitor’s powder coatings

9

OPTIONAL ACCESSORIES

A: V ARM

B: SINGLE ARM

C: BARBED WIRE

D: CONCERTINA RAZOR WIRE

E: FLAT WRAP RAZOR WIRE
