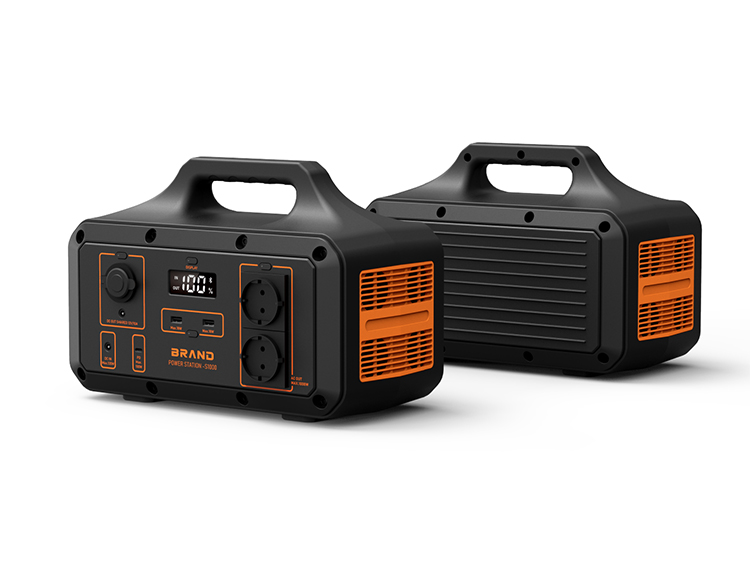

Wholesale customization OEM/ODM 1000Wh outdoor Portable Power Station

Short Description:

A portable energy storage device that provides high-power AC and DC power.

It is widely used in outdoor camping, self driving residence, outdoor camera, outdoor group construction, emergency disaster relief, medical first aid and other occasions etc.Provide you with more convenient power to meet the needs of outdoor power consumption


Product Detail

Product Tags

LiFePO4 cells, More Safe

Used Lithium iron phosphate (LiFePO4) cells, and the puncture test is not burning, Extrusion deformation without explosion, working temperature – 10 ~ 40℃

Lifecycle ≥ 4000 times Longer Service Life

Through the laboratory battery cycle life test, More than 4000 charges and discharges, The capacity of the cell can keep above 80% of original rated

Three Charging Modes

It can be charged through mains wall plug, solar panel and automobile cigarette lighter, and supports 600W charging at most

App Real-time Monitoring Equipment

The current multiple status indexes of the equipment can be viewed through app; The switch of each output interface can be controlled through app; App supports IOS and Android dual systems

Intelligent Battery Management System (BMS) Multiple Safety Protection

Real-time detection of voltage, current, temperature, etc.

Over Current Protection

Over Voltage Protection

Over Charge Protection

Over Discharge Protection

Over Temperature Protection

Short Circuit Protection

Rich Types of Interfaces More Convenient Charging and Discharging

Input interface: DC*1

Output interface: AC*2, USB-C*2, USB-A*2, DC*2, Cigarette Lighter*1

S500S

Capacity 1021Wh
DC Output 12V/10A (120W max)
Battey Chemistry Li – ion NCM
Storage Temp. -10—60℃
Lifecycle 1000+
Work Temp. 0~40℃
Indicator LCD/APP
DC Input 9-24V (120W max)
Spotlight 3W*3
Floodlight 0.3W*27
Protection OVP, OCP, ODP, SCP, etc.
AC Output 1200W max
Material ABS+PC
USB-C Output 100W max
Screen Size 80*45mm
USB-A Output 5-20V (18W max)
Dimensions 365*204*253mm
Car Port Output 12V/10A (120W max)
Weight 9.3±0.5kg
