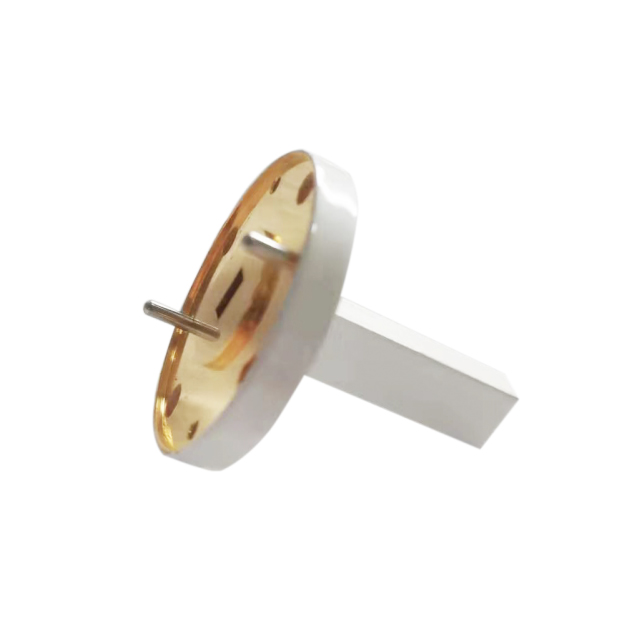

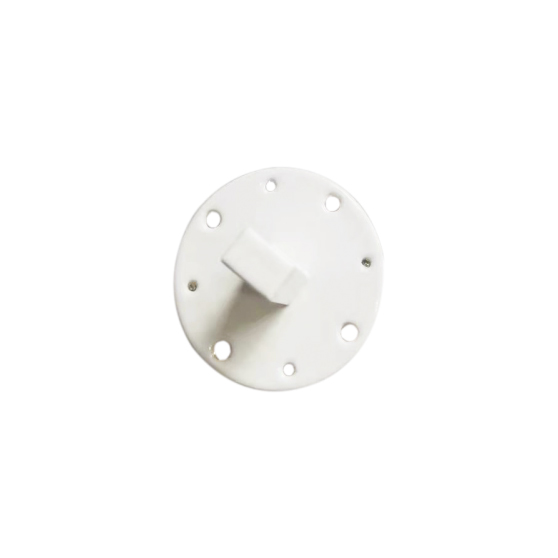

WR19 Rectangular Waveguide Terminal Matched Load 40-60GHz

Short Description:

WR19(BJ500) Waveguide low, frequency coverage 40-60GHz, low VSWR 1.05:1 (MAX) , cover all frequency bands of rectangular waveguide WR19(BJ500), and the output is APF19.It can withstand 0.3 W CW power and 0.3KW peak power. series is a low VSWR universal load typical applications include system or test platform settings and small and medium power loads.

Send email to us

Product Detail

Product Tags

Waveguide	WR15(BJ500)
Frequency Range（GHz）	40-60
VSWR	1.05Max
Average power(w)	0.3CW
Peak power (kw)	0.3CW
Flange	APF19
Material	Brass
Size(mm)	3028.628.6
Net Weight(Kg)	0.04Around

Product Description

The matching load of the waveguide is a wedge or plate made of lossy materials embedded in the waveguide, as shown in Fig. 1 (a) and (b), and the matching load of the circular waveguide is made of birch, as shown in Fig. 1 (c). Because the material is lossy, the incident wave power is absorbed by it. At the same time, because the electromagnetic field gradually enters the wedge made of lossy material, the reflection is avoided. This kind of terminator can be regarded as a lossy gradual transmission line. Usually, the matching load made of lossy gradient lines with one or more wavelengths is enough to make its input VSWR below 1.01.

Requirements for matching load:

(1) The VSWR is small.

(2) Wide operating frequency band.

(3) High power capacity (heat resistant)

(4) Not easy to puncture.

(5) It is not easy to leak high-frequency energy.

(6) Vibration resistance.

(7) The performance is stable and will not change due to temperature rise, humidity or aging.

Application of matching load:

In addition, the matching load is also commonly used as a false antenna to eliminate space radiation without interfering with other electronic equipment.

Modle	Frequency	VSWR	Average power	Waveguide	Length(Max)
	（GHz）	（Max）	（W ）		(mm)
-WL1150	1.45～2.20	1.05	2	WR1150	320
-WL430	1.72～2.61	1.05	2	WR430	300
-WL340	2.17～3.30	1.05	2	WR340	280
-WL284	2.60～3.95	1.05	2	WR284	260
-WL229	3.22～4.90	1.05	2	WR229	220
-WL187	3.94～5.99	1.05	2	WR187	200
-WL159	4.64～7.05	1.05	2	WR159	180
-WL137	5.38～8.17	1.05	2	WR137	150
-WL112	6.59～9.99	1.05	2	WR112	150
-WL90	8.2～12.50	1.05	2	WR90	120
-WL75	9.84～15.0	1.05	2	WR75	100
-WL62	11.9～18.0	1.05	2	WR62	100
-WL51	14.5～22.0	1.05	2	WR51	80
-WL42	17.6～26.7	1.05	2	WR42	60
-WL34	21.7～33.0	1.05	1	WR34	60
-WL28	26.3～40.0	1.05	1	WR28	50
-WL22	32.9～50.1	1.1	1	WR22	50
-WL19	39.2～59.6	1.1	1	WR19	30
-WL15	49.8～75.8	1.15	1	WR15	30
-WL12	60.5～91.9	1.15	1	WR12	30
-WL10	73.8～112	1.25	1	WR10	30
-WL8	92.2～140	1.25	1	WR8	30
