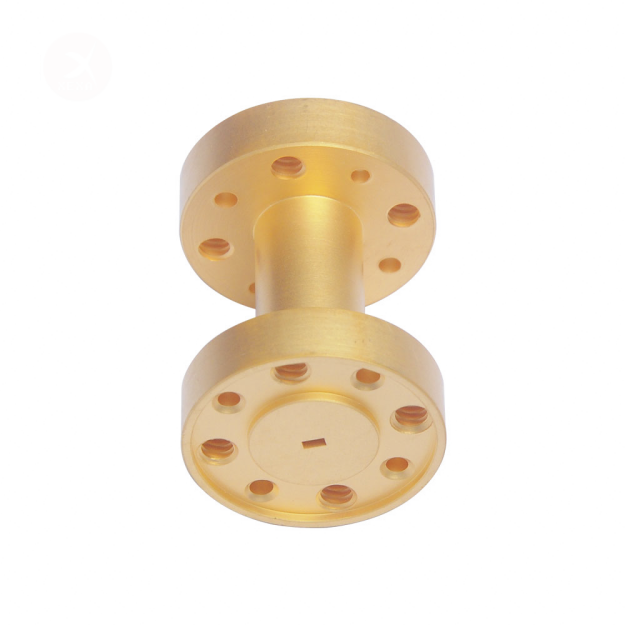

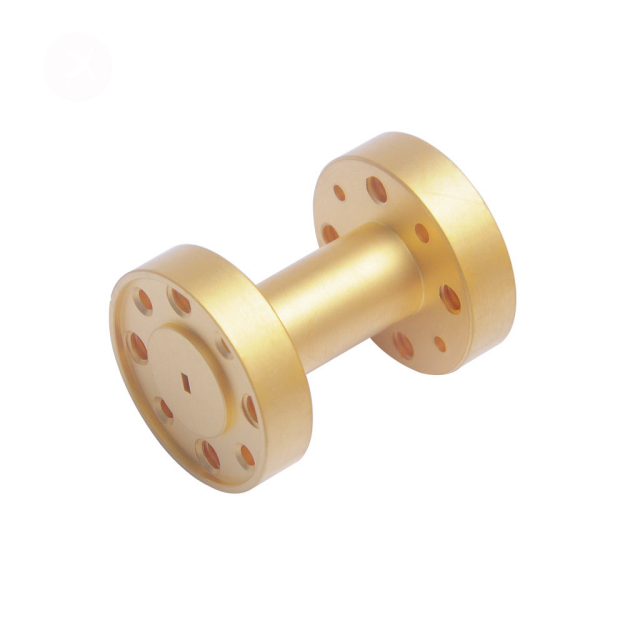

WR8 Straight Waveguide 90-140GHz 25.4mm

Short Description:

-WS8 rectangular straight waveguide, with frequency coverage of 90-140GHz, insertion loss of 0.2 dB (Typ) and VSWR wave of 1.08:1 (Typ). WR-8 rectangular straight waveguide can cover all frequency bands of rectangular waveguide BJ1200 (WR-8), and its output is two APF8 flanges. It can withstand 13W continuous wave power and 4kw peak power. Flange,surface treatment and material and length can be be manufactured per customer request.


Product Detail

Product Tags

Product description

Straight waveguide is the basic component of the waveguide feeder system.  The main materials of the product are copper and aluminum, and the surface has various treatment methods such as silver plating, gold plating, nickel plating, passivation and conductive oxidation. The length, flange form, material, surface treatment method and electrical parameters of the product can be customized. The integrated solutions can be provided according to user requirements. The outline size can reach the national standard IT7-IT4, and the product flange: the accuracy of position and flatness can reach within 0.005mm. If you need more technical specifications of the product, please contact us directly.

Features

Low VSWR Low loss,High power, Serialization

Application

Tech rectangular straight waveguide is manufactured by precision machining process, it is  perfect for radar antenna system, laboratory test device, microwave radio, satellite communication and other applications requiring low insertion loss and low return loss.

The main technical indicators

Waveguide model WR-8 (BJ1200)
Frequency(GHz) 90-140
length (mm) 25.4
Insertion loss(dB) 0.3Max
VSWR 1.1Max
Flange FUGP1200(UG-387/U-M)
Material Brass
Power peak (KW) 4
Size(mm) 19.1*19.1*25.4
Weight(Kg) 0.02
Working temperature(°C) -55-85

Model

Waveguide

Frequency

VSWR

Length

Flange

Material

Surface treatment

-WS430

WR-430

1.72-2.61

≤1.05

25.4-500

FDP/FDM

Aluminium

Anodization

-WS340

WR-340

2.17-3.30

≤1.05

25.4-500

FDP/FDM

Aluminium

Anodization

-WS284

WR-284

2.60-3.95

≤1.05

25.4-500

FDP/FDM

Aluminium

Anodization

-WS229

WR-229

3.22-4.90

≤1.05

25.4-500

FDP/FDM

Aluminium

Anodization

-WS187

WR-187

3.94-5.99

≤1.05

25.4-500

FDP/FDM

Aluminium

Anodization

-WS159

WR-159

4.64-7.05

≤1.05

25.4-500

FDP/FDM

Aluminium

Anodization

-WS137

WR-137

5.38-8.17

≤1.1

25.4-500

FDP/FDM

Brass

silver plating

-WS112

WR-112

6.57-9.99

≤1.1

25.4-500

FBP/FBM

Brass

silver plating

-WS90

WR-90

8.20-12.40

≤1.1

25.4-500

FBP/FBM

Brass

silver plating

-WS75

WR-75

9.84-15.0

≤1.1

25.4-500

FBP/FBM

Brass

silver plating

-WS62

WR-62

11.9-18.0

≤1.1

25.4-500

FBP/FBM

Brass

silver plating

-WS51

WR-51

14.5-22.0

≤1.1

25.4-500

FBP/FBM

Brass

silver plating

-WS42

WR-42

17.6-26.7

≤1.1

25.4-500

FBP/FBM

Brass

silver plating

-WS34

WR-34

21.7-33.0

≤1.1

25.4-500

FBP/FBM

Brass

silver plating

-WS28

WR-28

26.5-40.0

≤1.1

25.4-500

FBP/FBM

Brass

silver plating

-WS22

WR-22

32.9-50.1

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS19

WR-19

39.2-59.6

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS15

WR-15

49.8-75.8

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS12

WR-12

60.5-91.9

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS10

WR-10

73.8-112

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS8

WR-8

92.2-140

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS7

WR-7

113-173

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS5

WR-5

145-220

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS4

WR-4

172-261

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS3

WR-3

217-330

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS2.8

WR-2.8

260-400

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS2.2

WR-2.2

330-500

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS1.9

WR-1.9

400-600

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS1.5

WR-1.5

500-750

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS1.2

WR-1.2

600-900

≤1.15

25.4-500

FUGP

Brass

gold plating

-WS1.0

WR-1.0

750-1100

≤1.15

25.4-500

FUGP

Brass

gold plating
