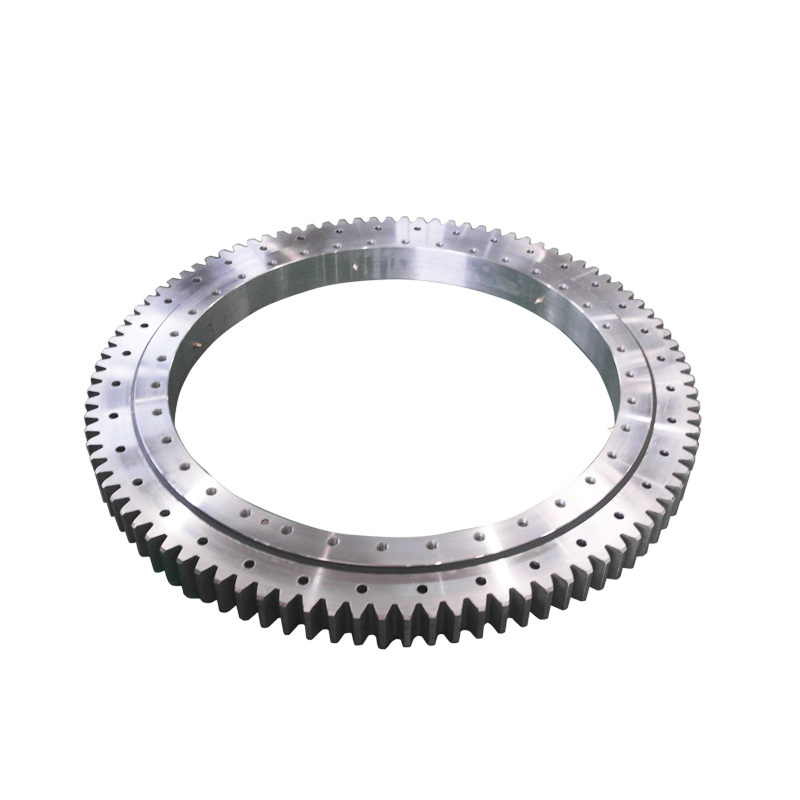

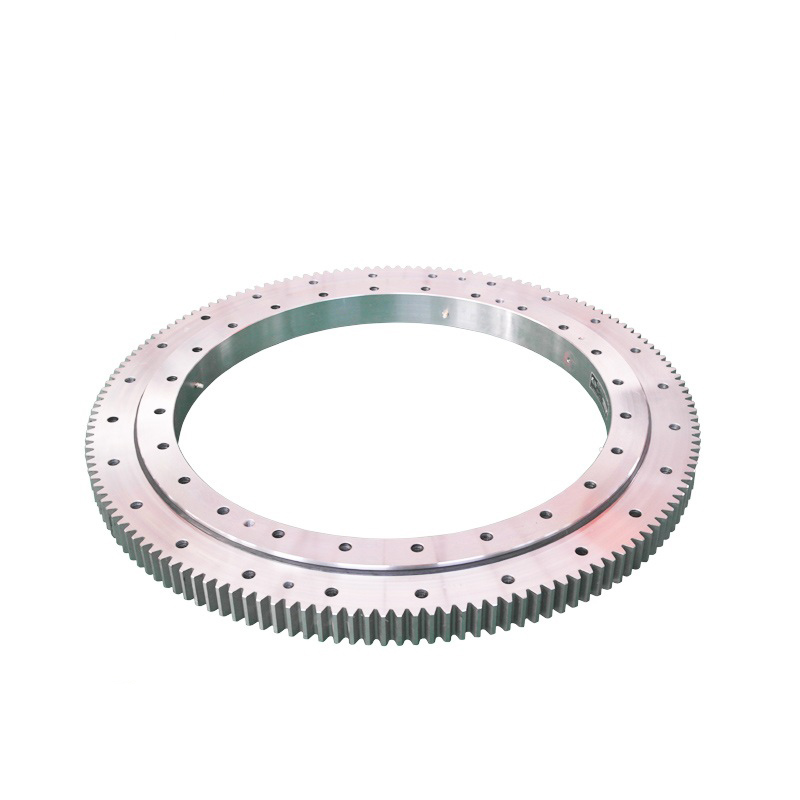

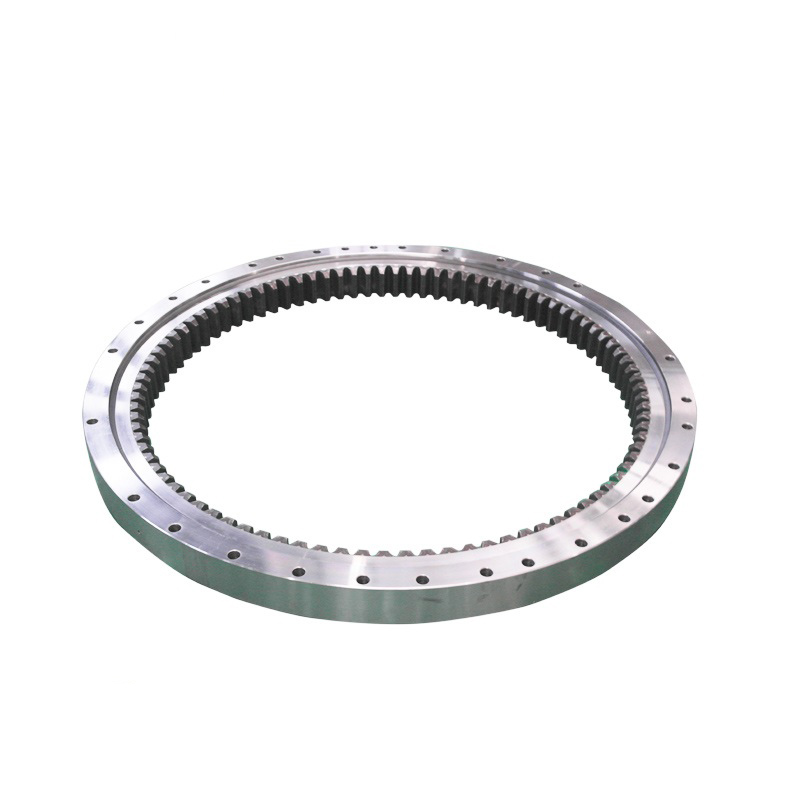

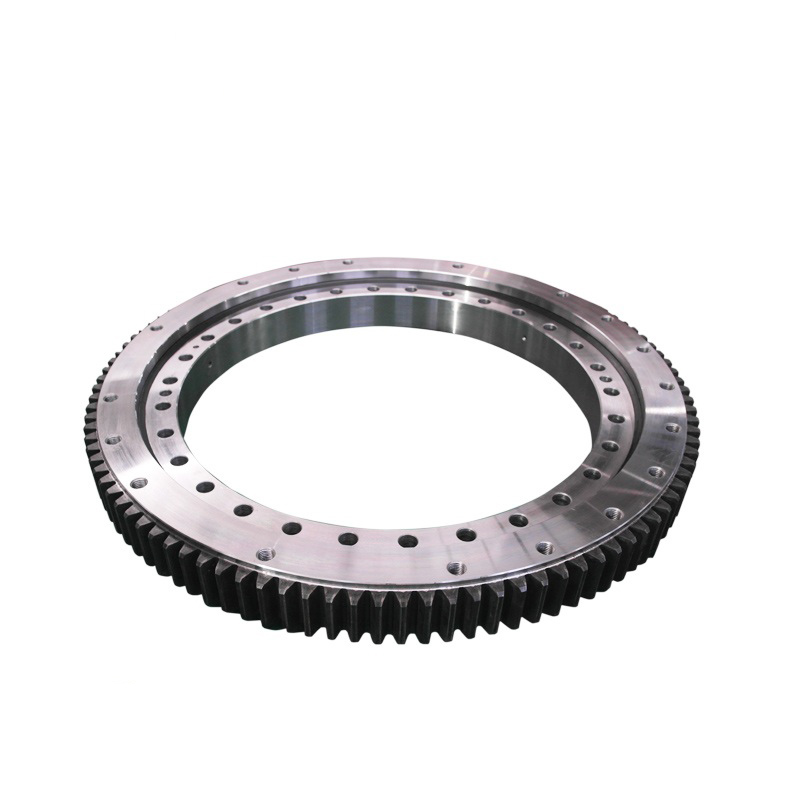

XZWD 4 point angular contact ball turntable slewing bearing

Short Description:

Chengdu Gudao Technology Co., Ltd. High-tech Branch. is a slewing bearing manufacturer specializing in standard and non-standard slewing bearing.Over the years, we supplied high quality product & good service to every user and gain good credit.We have strict quality control system in our own factory,meanwhile, we have passed ISO9001-2008 Quality System Certification and JG/T66-1999, JG/T67-1999, JG/T68-1999, JB/T2300-1999 with our country’s engineering & machinery standards…


Product Detail

Product Tags

Chengdu Gudao Technology Co., Ltd. High-tech Branch. is a slewing bearing manufacturer specializing in standard and non-standard slewing bearing.Over the years, we supplied high quality product & good service to every user and gain good credit.We have strict quality control system in our own factory,meanwhile, we have passed ISO9001-2008 Quality System Certification and JG/T66-1999, JG/T67-1999, JG/T68-1999, JB/T2300-1999 with our country’s engineering & machinery standards.

Slewing ring can bear axial, radial load and tilting moment load simultaneously. It can be combined with pinion, planetary gearbox and motors…

We have strict production schedule to assure the delivery time, the production schedule as below:
A. Forging purchase period: 15-20 days

B. Production process:
1. Rough turning: 2-3 days
2. Raceway heat treatment: 2 days
3. Fine turning: 2 days
4. Gear cutting: 4-5 days
5. Drilling: 2-3 days
6. Final turning: 2 days
7. Assembling and Inspection: 2 days

C. Packing and delivery to Port: 3-5 days

Totally about 40-50days

The products are widely used in engineering machinery, building machinery, metallurgical and mining machinery, shipping port machinery, environmental protection machinery, light industry machinery, petroleum chemical machinery, engineering vehicle, war industry equipment and so on.

Slewing ring Co.,Ltd. is a professional manufacturer and exporter of slewing bearing,slewing drives.

Turntable and Slewing Ring bearings utilize one to three rows of balls or rollers in order to provide smooth rotation even under extremely large loads. In addition to radial and axial loads, these bearings are able to support large moments in situations when loads are cantilevered away from the bearing’s central axis.

Turntables and Slewing Rings are offered in both metric and inch sizes with the ability to customize the mounting interfaces to suite your application. What differentiates Slewing Rings from Turntables is the inclusion of gear teeth on either the inner or outer rings.

We focus and control every production detail,Only for the delivery of good products to customers.

The material of the slewing bearing are generally high alloy-structural steels,such as 42CrMo,50Mn.

No External gear Dimensions (mm) Mounting Dimensions (mm) Structural Dimension (mm) Gear data Gear force10^4 KN weight
kg
D d H D1 D2 n Φ dm L n1 D3 d1 H1 h b x M De z N T
1 011.20.200 280 120 60 248 152 12 16 M14 28 2 201 199 50 10 40 0 3 300 98 1.5 2.1 24
2 011.20.224 304 144 60 272 176 12 16 M14 28 2 225 223 50 10 40 0 3 321 105 1.5 2.1 25
3 011.20.250 330 170 60 298 202 18 16 M14 28 2 251 249 50 10 40 0 4 352 86 2.1 2.8 30
4 011.20.280 360 200 60 328 232 18 16 M14 28 2 281 279 50 10 40 0 4 384 94 1.5 2.8 34
5 011.25.315 408 222 70 372 258 20 18 M16 32 2 316 314 60 10 50 0 5 435 85 2.9 4.4 52
6 011.25.355 448 262 70 412 298 20 18 M16 32 2 356 354 60 10 50 0 5 475 93 2.9 4.4 59
7 011.25.400 493 307 70 457 343 20 18 M16 32 2 401 399 60 10 50 0 6 528 86 3.5 5.3 69
8 011.25.450 543 357 70 507 393 20 18 M16 32 2 451 449 60 10 50 0 6 576 94 3.5 5.3 76
9 011.30.500 602 398 80 566 434 20 18 M16 32 4 501 499 498 70 10 60 0.5 5 629 123 3.7 5.2 85
012.30.500 6 628.8 102 4.5 6.2
10 011.30.560 662 458 80 626 494 20 18 M16 32 4 561 559 558 70 10 60 0.5 5 689 135 3.7 5.2 95
012.25/30.560 6 688.8 112 4.5 6.2
11 011.30.630 732 528 80 696 564 24 18 M16 32 4 631 629 628 70 10 60 0.5 6 772.8 126 4.5 6.2 110
012.25/30.630 8 774.4 94 6 8.3/8.2
12 011.30.710 812 608 80 776 644 24 18 M16 32 4 711 709 708 70 10 60 0.5 6 850.8 139 4.5 6.2 120
012.30.710 8 854.4 104 6 8.9/8.3
13 011.40.800 922 678 100 878 722 30 22 M20 40 6 801 798 90 10 80 0.5 8 966.4 118 8 11.1 220
012.40.800 10 968 94 10 14.1/14
14 011.40.900 1022 778 100 978 822 30 22 M20 40 6 901 898 90 10 80 0.5 8 1062.4 130 8 11.1 240
012.40.900 10 1068 104 10 14
15 011.40.1000 1122 878 100 1078 922 36 22 M20 40 6 1001 998 90 10 80 0.5 10 1188 116 10 14 270
012.30/40.1000 12 1185.6 96 12 16.7
16 011.40.1120 1242 998 100 1198 1042 36 22 M20 40 6 1121 1118 90 10 80 0.5 10 1298 127 10 14 300
012.30/40.1120 12 1305.6 106 12 16.7
17 011.45.1250 1390 1110 110 1337 1163 40 26 M24 48 5 1252 1248 100 10 90 0.5 12 1449.6 118 13.5 18.8 420
012.35/45.1250 14 1453.2 101 15.8 21.9
18 011.45.1400 1540 1260 110 1487 1313 40 26 M24 48 5 1402 1398 100 10 90 0.5 12 1605.6 131 13.5 18.8 480
012.35/45.1400 14 1607.2 112 15.5 21.9
19 011.45.1600 1740 1460 110 1687 1513 45 26 M24 48 5 1602 1598 100 10 90 0.5 14 1817.2 127 15.8 21.9 550
012.35/45.1600 16 1820.8 111 18.1 25
20 011.45.1800 1940 1660 110 1887 1713 45 26 M24 48 5 1801
1802		 1798 100 10 90 0.5 14 2013.2 141 15.8 21.9 610
012.35/45.1800 16 2012.8 123 18.1 25
21 011.40/60.2000 2178 1825 144 2110 1891 48 33 M30 60 8 2001
2002		 1998 132 12 120 0.5 16 2268.8 139 24.1 33.3 1100
012.40/60.2000 18 2264.4 123 27.1 37.5
22 011.40/60.2240 2418 2065 144 2350 2131 48 33 M30 60 8 2241
2242		 2238 132 12 120 0.5 16 2492.8 153 24.1 33.3 1250
012.40/60.2240 18 2498.4 136 27.1 37.5
23 011.40/60.2500 2678 2325 144 2610 2391 56 33 M30 60 8 2501
2502		 2498 132 12 120 0.5 18 2768.4 151 27.1 37.5 1400
012.40/60.2500 20 2776 136 30.1 41.8
24 011.40/60.2800 2978 2625 144 2910 2691 56 33 M30 60 8 2802 2798 132 12 120 0.5 18 3074.4 168 27.1 37.5 1600
012.40/60.2800 20 3076 151 30.1 41.8
25 011.50/75.3150 3376 2922 174 3286 3014 56 45 M42 84 8 3152 3147 162 12 150 0.5 20 3476 171 37.7 52.2 2800
012.50/75.3150 22 3471.6 155 41.5 57.4

Note:

1. n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
2. n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. “K” is addendum reduction coefficient.
