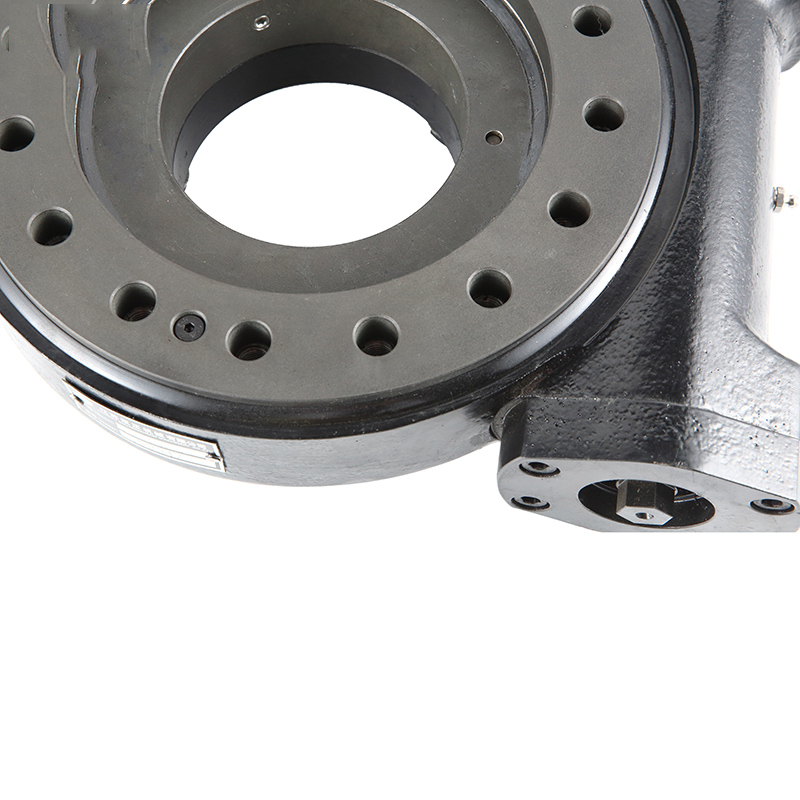

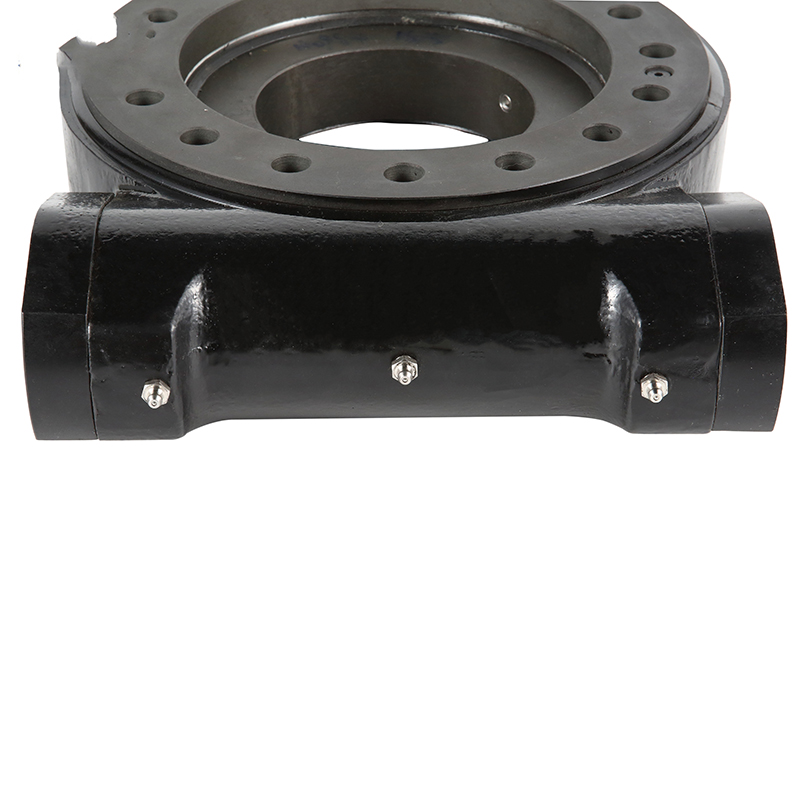

XZWD SE9 Slewing drive for solar tracking system
Chengdu Gudao Technology Co., Ltd. High-tech Branch is a professional manufacturer and exporter of slewing drives, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles,
modular vehicles, single and dual axis solar tracking system, and small wind power system etc.
There are mainly SE series and WEA series to meet both regular and precision tracking requirement in PV, CPV and solar thermal power tracking fields, please find detailed specifications in the form.
| DIMENSIONS PARAMETER | |||||||||||||||||
| Model | External Dimensions | Installation Dimensions | Mounting Hole Date | ||||||||||||||
| L1 | L2 | L3 | H2 | D0 | D2 | D3 | D4 | D5 | n1 | M1 | T1 | T2 | n2 | M2 | T3 | T4 | |
| mm | Inner Ring | Outer Ring | |||||||||||||||
| SE3 | 190 | 160.5 | 80 | 109 | 152 | 100 | no | no | 100 | 6 | M10 | 17 | 32 | 6 | M10 | 22 | no |
| SE5 | 219.2 | 170.5 | 93.7 | 80 | 183 | 70 | 50 | 103.5 | 135 | (8-1) | M10 | 20 | 42 | 6 | M10 | 20 | 39 |
| SE7 | 295.7 | 186 | 132.7 | 83.8 | 258 | 120.6 | 98 | 163 | 203.2 | 10 | M12 | 25 | 47 | 8 | M12 | 25 | 43.4 |
| SE9 | 410.5 | 321.7 | 174.2 | 107.9 | 345 | 175 | 146 | 222.5 | 270 | (16-1) | M16 | 30 | 65.9 | 16 | M16 | 30 | 52 |
| SE12 | 499.5 | 339.5 | 220 | 110.4 | 431 | 259 | 229 | 314.3 | 358 | (20-1) | M16 | 30 | 69.4 | 18 | M16 | 30 | 51 |
| SE14 | 529.9 | 337.5 | 237.6 | 111 | 456.5 | 295 | 265 | 342.5 | 390 | (24-1) | M16 | 30 | 69 | 18 | M16 | 30 | 52 |
| SE17 | 621.8 | 385.2 | 282.6 | 126 | 550.5 | 365.1 | 324 | 422.1 | 479.4 | 20 | M16 | 32 | 79 | 20 | M16 | 32 | 55 |
| SE21 | 750.4 | 475 | 345 | 140 | 667.7 | 466.7 | 431.8 | 525.5 | 584.2 | (36-1) | M20 | 40 | 85 | 36 | M20 | 40 | no |
| SE25 | 862.8 | 469 | 401.8 | 130 | 792 | 565 | 512 | 620 | 675 | (36-1) | M20 | 40 | 87 | 36 | M20 | 40 | no |
| PERFORMANCE PARAMETERS | |||||||||||||||||
| Model | (MAX)kN.m Output Torque |
(MAX)kN.m Tilting Moment Torque |
KN Static Axial Load |
kN Static Radial Load |
(MAX)kN.m Dynamic Axial Load |
(MAX)kN.m Dynamic Radial Load |
(MAX)kN.m Holding Torque |
Gear Radio | Tracking Precision | Self-locking Gears | kg Weight |
||||||
| SE3 | 0.4 | 1.1 | 30 | 16.6 | 9.6 | 8.4 | 2 | 62:1 | ≤0.20° | Yes | 14 kg | ||||||
| SE5 | 0.6 | 3 | 45 | 22 | 14.4 | 11.1 | 5.5 | 62:1 | ≤0.20° | Yes | 13 kg | ||||||
| SE7 | 1.5 | 13.5 | 133 | 53 | 32 | 28 | 10.4 | 73:1 | ≤0.20° | Yes | 23 kg | ||||||
| SE9 | 6.5 | 33.9 | 338 | 135 | 81 | 71 | 38.7 | 61:1 | ≤0.20° | Yes | 50 kg | ||||||
| SE12 | 7.5 | 54.3 | 475 | 190 | 114 | 100 | 43 | 78:1 | ≤0.20° | Yes | 65 kg | ||||||
| SE14 | 8 | 67.8 | 555 | 222 | 133 | 117 | 48 | 85:1 | ≤0.20° | Yes | 70 kg | ||||||
| SE17 | 10 | 135.6 | 970 | 390 | 235 | 205 | 72.3 | 102:1 | ≤0.15° | Yes | 105 kg | ||||||
| SE21 | 15 | 203 | 1598 | 640 | 385 | 335 | 105.8 | 125:1 | ≤0.15° | Yes | 180 kg | ||||||
| SE25 | 18 | 271 | 2360 | 945 | 590 | 470 | 158.3 | 150:1 | ≤0.15° | Yes | 218 kg | ||||||
