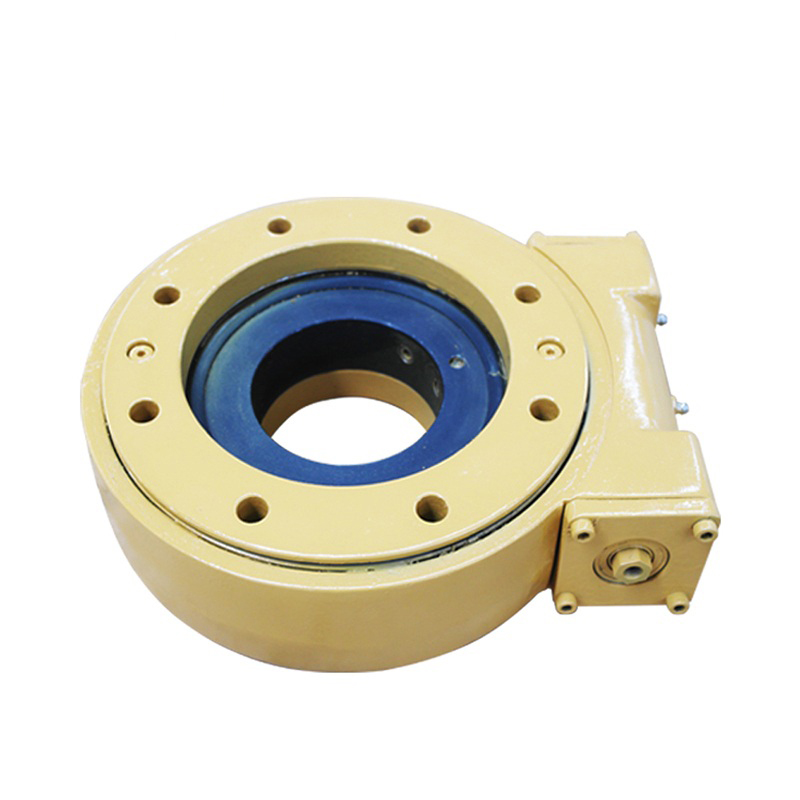

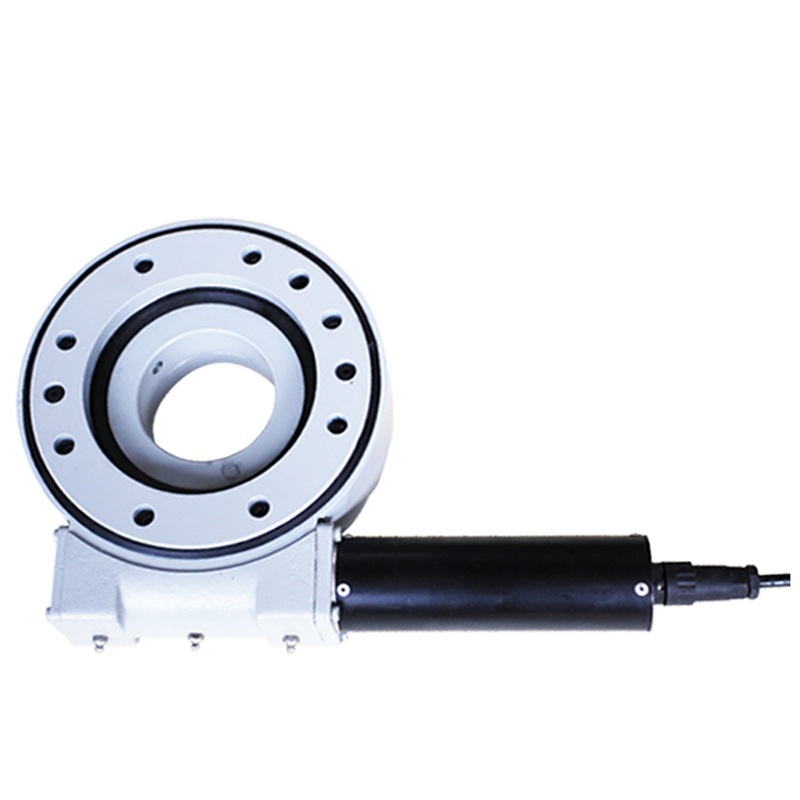

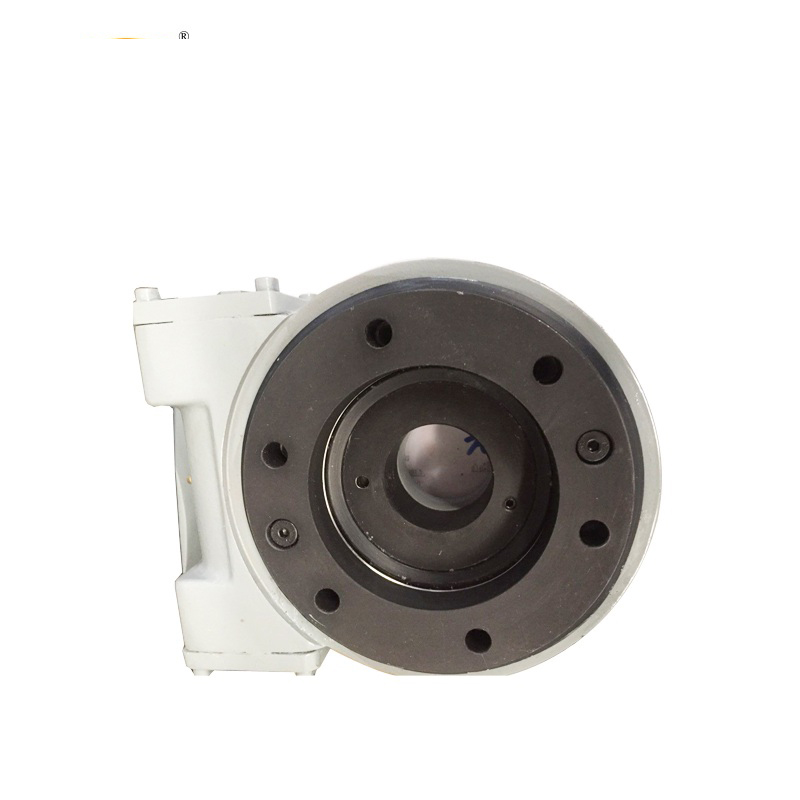

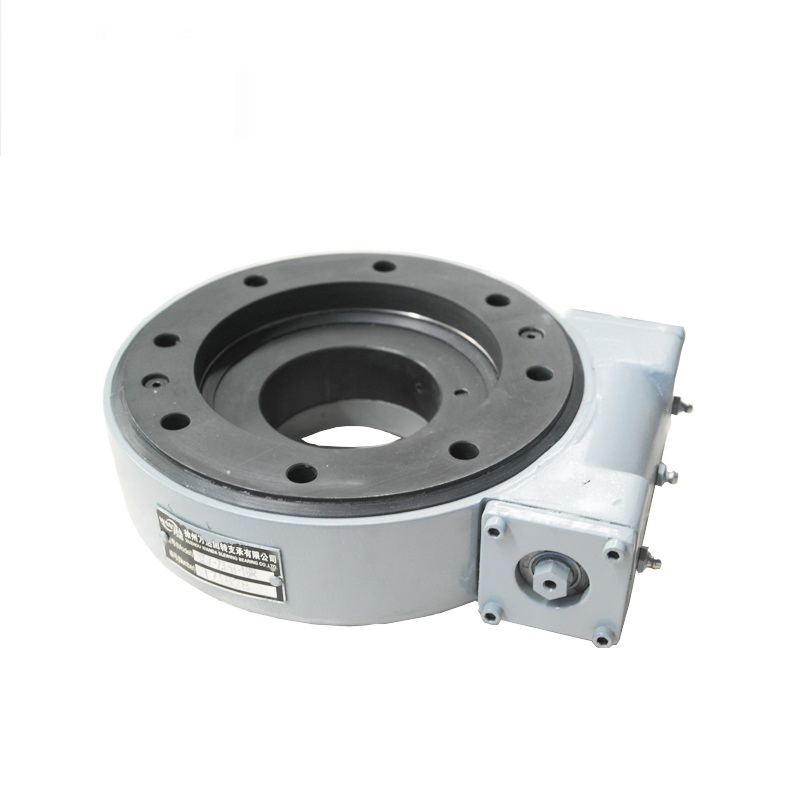

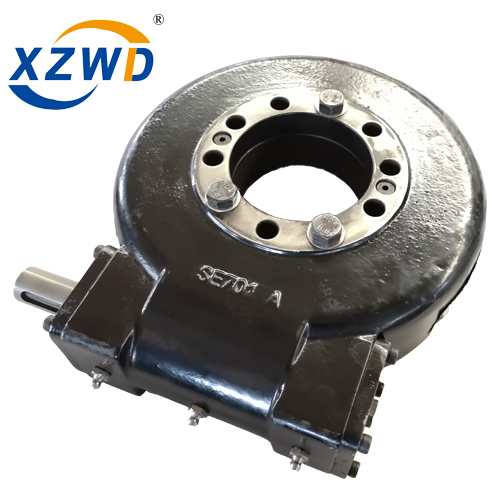

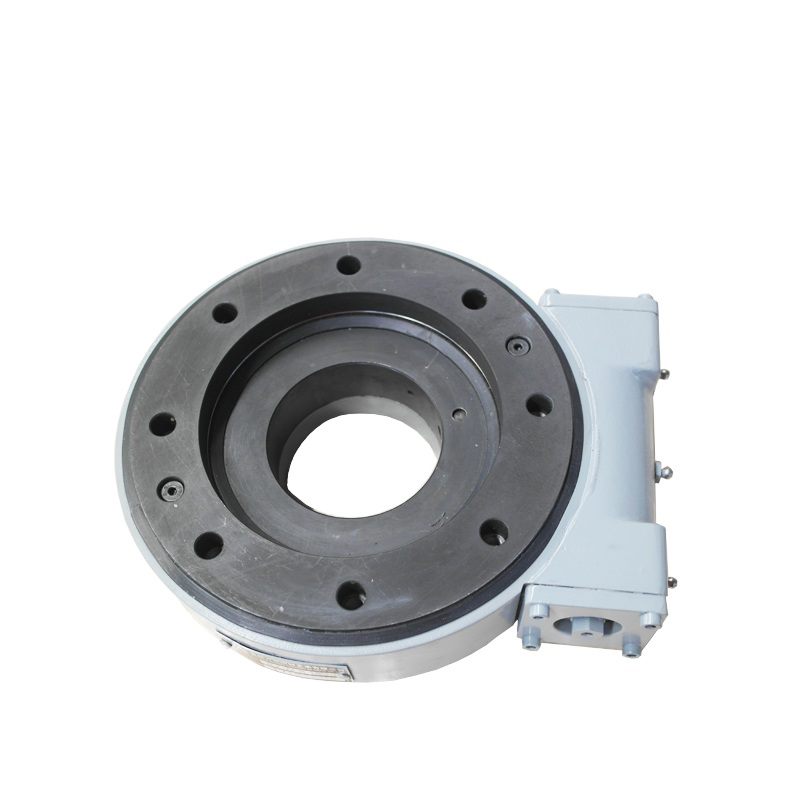

XZWD Solar Tracking Enclosed Housing SE7 Slewing Drive

Short Description:

Slewing Bearing Co., Ltd. is a professional manufacturer and exporter of slewing drives. There are mainly SE series and WEA series to meet both regular and precise tracking requirement in PV, CPV and solar thermal power tracking fields, please find detailed specification in the form.The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis, or in multiple axes together. Slewing ring drives are m…

Send email to us

Product Detail

Product Tags

The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis, or in multiple axes together. Slewing ring drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.

The slewing drive uses precision kinematics to provide a large proportion of single-stage gearing. Bearings and gears are assembled into a small, self-contained, and ready-to- install case to optimize weight and performance. These highly adaptable products also feature robust shock resistance, long life performance, smooth rotation, bearing protection and sealed drive options. As an experienced slew drive manufacturer, we have the capability to provide high quality slew drives.

DIMENSIONS PARAMETER
Model	External Dimensions					Installation Dimensions				Mounting Hole Date
	L1	L2	L3	H2	D0	D2	D3	D4	D5	n1	M1	T1	T2	n2	M2	T3	T4
	mm									Inner Ring				Outer Ring
SE3	190	160.5	80	109	152	100	no	no	100	6	M10	17	32	6	M10	22	no
SE5	219.2	170.5	93.7	80	183	70	50	103.5	135	(8-1)	M10	20	42	6	M10	20	39
SE7	295.7	186	132.7	83.8	258	120.6	98	163	203.2	10	M12	25	47	8	M12	25	43.4
SE9	410.5	321.7	174.2	107.9	345	175	146	222.5	270	(16-1)	M16	30	65.9	16	M16	30	52
SE12	499.5	339.5	220	110.4	431	259	229	314.3	358	(20-1)	M16	30	69.4	18	M16	30	51
SE14	529.9	337.5	237.6	111	456.5	295	265	342.5	390	(24-1)	M16	30	69	18	M16	30	52
SE17	621.8	385.2	282.6	126	550.5	365.1	324	422.1	479.4	20	M16	32	79	20	M16	32	55
SE21	750.4	475	345	140	667.7	466.7	431.8	525.5	584.2	(36-1)	M20	40	85	36	M20	40	no
SE25	862.8	469	401.8	130	792	565	512	620	675	(36-1)	M20	40	87	36	M20	40	no
DIMENSIONS PARAMETER
Model	External Dimensions					Installation Dimensions				Mounting Hole Date
	L1	L2	L3	H2	D0	D2	D3	D4	D5	n1	M1	T1	T2	n2	M2	T3
	mm									Inner Ring				Outer Ring
WEA9	424	330	180	108	360	175	146	222.5	270	15	M16	30	62	16	M16	30
WEA12	509	370	222.5	108	445	259	229	310	358	19	M16	30	62	18	M16	30
WEA14	544	380	240	108	480	295	265	342	390	23	M16	30	56	18	M16	30
WEA17	634	405	285	108	570	365.1	332	430	479.4	20	M16	32	62	20	M16	32
WEA21	762	483	350	130	693	466.7	4265	540	584.2	35	M20	40	70	36	M20	40
WEA25	861	513	399	130	793	565	525	630	675	35	M20	40	70	36	M20	40
