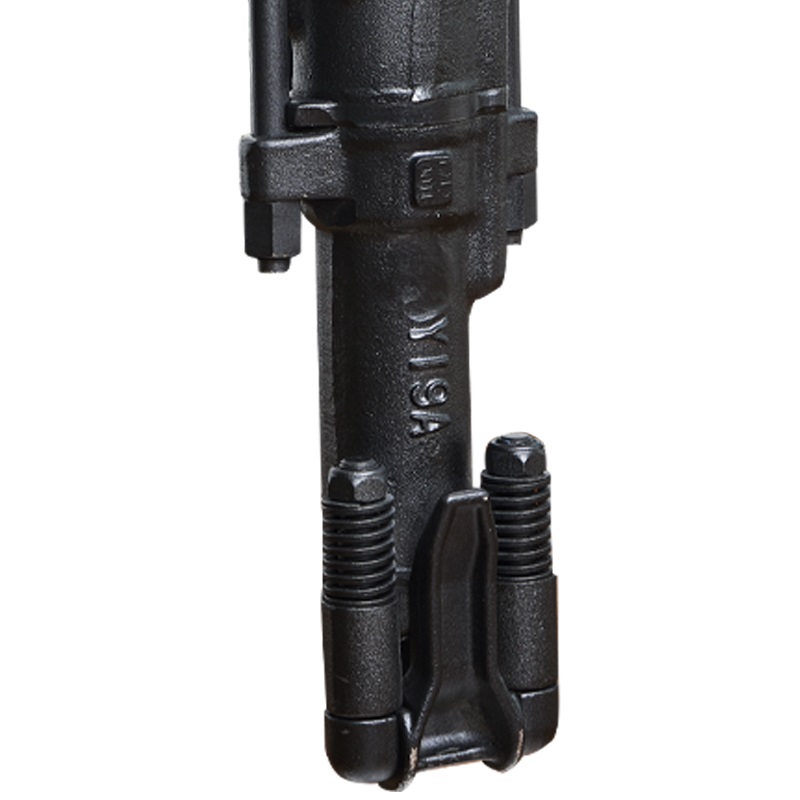

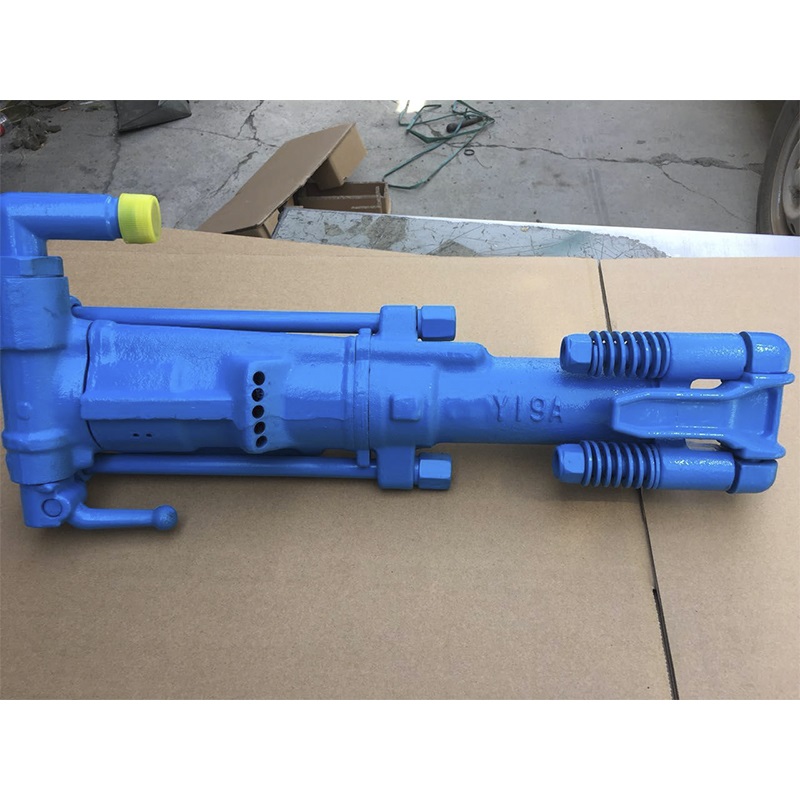

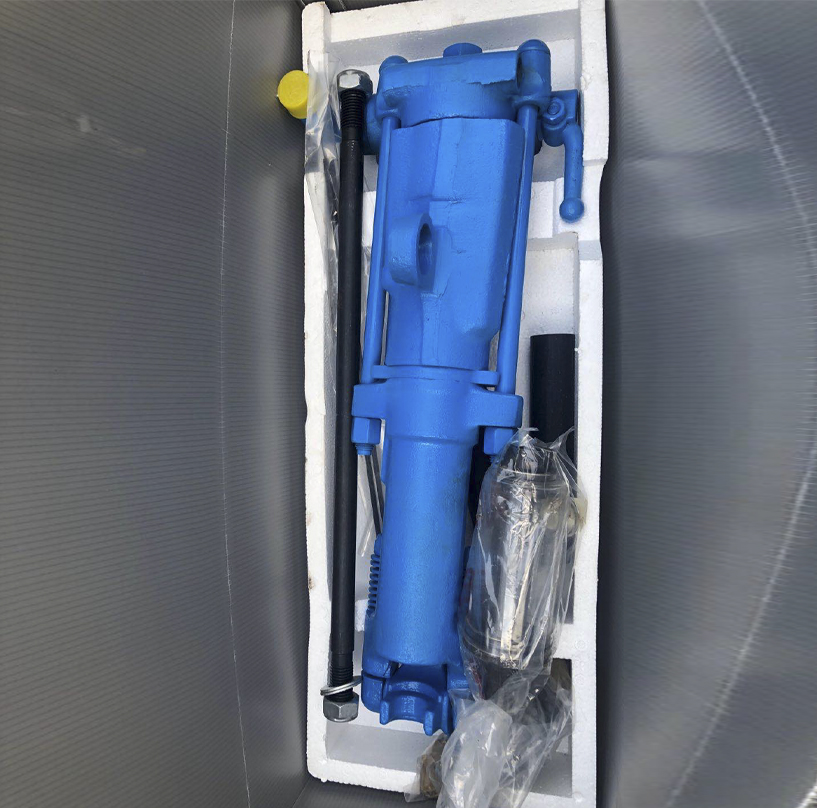

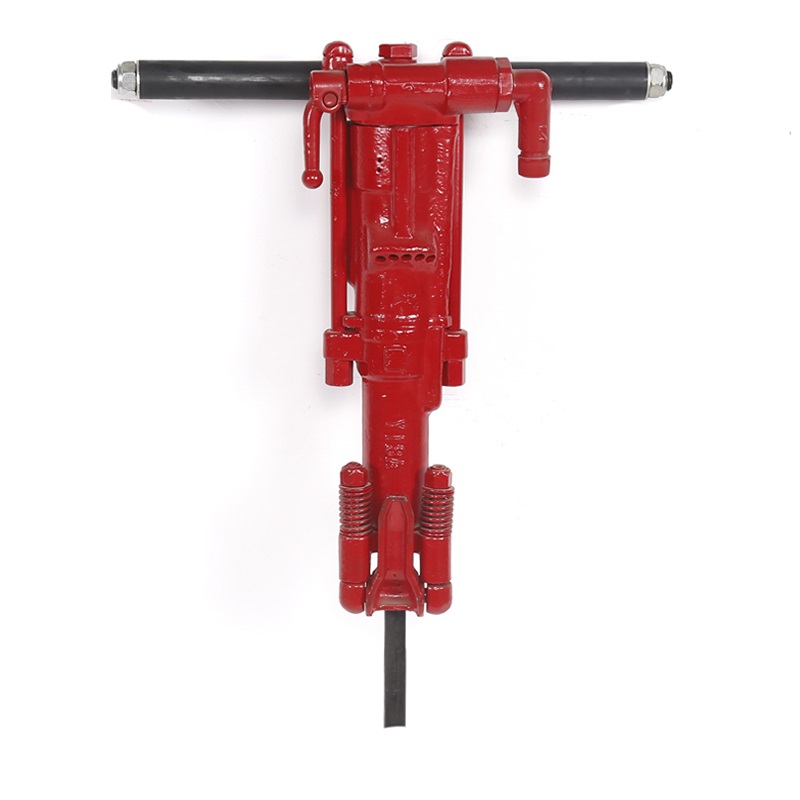

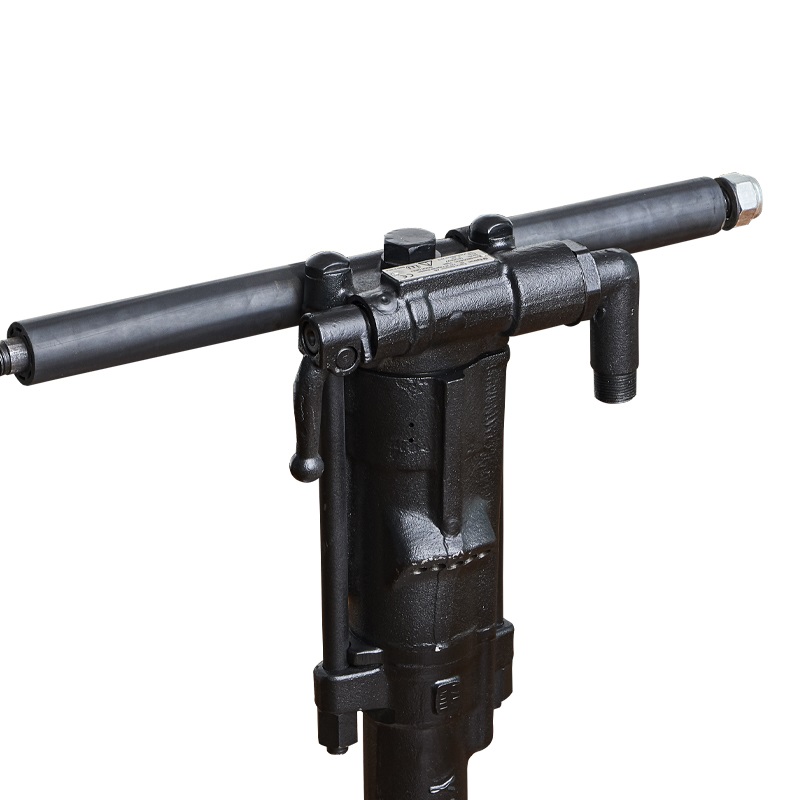

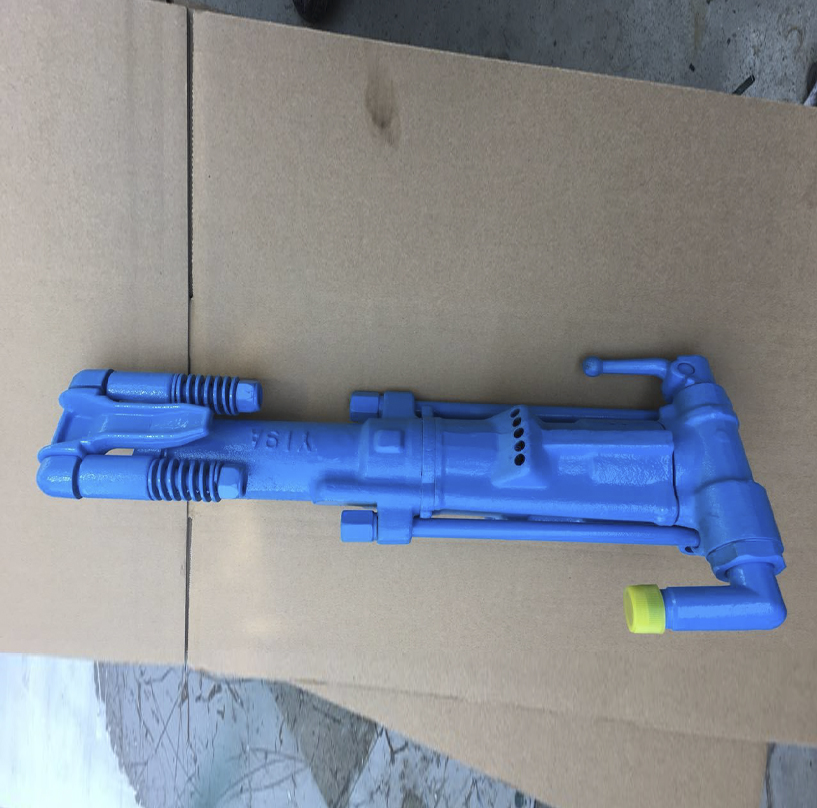

Y19 hand held pneumatic jack hammer

Short Description:

Y19A hand-held gas-leg rock drill is mainly used in the development of small quarries, mining operations in coal mines, limestone mines and other small mines, rock drilling and blasting in road construction in mountainous areas, and irrigation and water conservancy construction. The machine is also suitable for drilling in secondary blasting and other engineering construction of large mines. Y19A type of hand air leg type dual purpose drill is matched with FT100 type air leg, which can be used for dry and wet drilling on medium hard or hard rock. This machine can be used together with a small air compressor of 1.5-2.5 cubic meters/min. Its performance is better than similar products.

  • Model: Y19A
  • N.W.: 19kg
  • Length: 600mm
  • Bit Head Size: R22×108mm
  • Air Consumption: ≤43 L/S
  • Percussive Frequency: ≥35 Hz
  • Boreholes Diameter: 34-40mm
  • Piston Diameter: 65mm
  • Piston Stroke: 54mm
  • Revolution Number: 200 R/min
  • Air Inlet Size: 19mm




Product Detail

Product Tags

Hand held rock drill

rock drill bit China supplier

Y19A Hand held rock drill

Hand rock drill Y20LY/Y24/Y26/TY24C/Y19A/YO18,Pneumatic hand-held rock drillSuitable for either drilling downward or incline of blast holes in medium-hard rock(f=8-18), or for second blasting operation.Centrally grouped control, nimble starting, stable running and easy maintenance.

Quality

100%
.HAND HELD ROCK DRILL Y26 Y19A TY24C Y24 Y018 Y20LY
Model Y19A
Air consumption ≤43 L/S
Drilling diameter 34-40 mm
Impact frequency ≥35 Hz
Piston diameter 65 mm
Piston stroke 54 mm
Number of revolutions 200 R/min
Total length 600 mm
N.W. 19 Kg
Bit Head Size R22*108
Product Keywords drill bits for ore mining handheld,mining drill bit handheld,integral chisel type drill rods
未标题-2 拷贝

Detailed introduction

.HAND HELD ROCK DRILL Y26 Y19A TY24C Y24 Y018 Y20LY Y018

Y19A Hand held rock drill

Reasonable design Convinient operation  Fast drilling velocity  Engery-saving  Efficient   Long service life of parts  Parts highly interchangeable and reliable performance etc

Y19A
HAND HELD ROCK DRILL Y26 Y19 TY24C Y24 Y20LY Y018

Y19A Hand held rock drill Tapered drill rod

Tapered drill rod,another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths available from 0.6 mto 3.6 m in length—are measured from the collar to the bit end

Tapered drill rod

DETAIL VIEW

HAND HELD ROCK DRILL Y26 Y19A TY24C Y24 Y018 Y20LY..
.HAND HELD ROCK DRILL Y26 Y19A TY24C Y24 Y018 Y20LY Y018...
.HAND HELD ROCK DRILL Y26 Y19A TY24C Y24 Y018 Y018 Y20LY
rock drill yt29a yt28 yt27 s250 y26 y19a ty24c Air-leg Oil feeder Drill stem Aiguille Bit head
