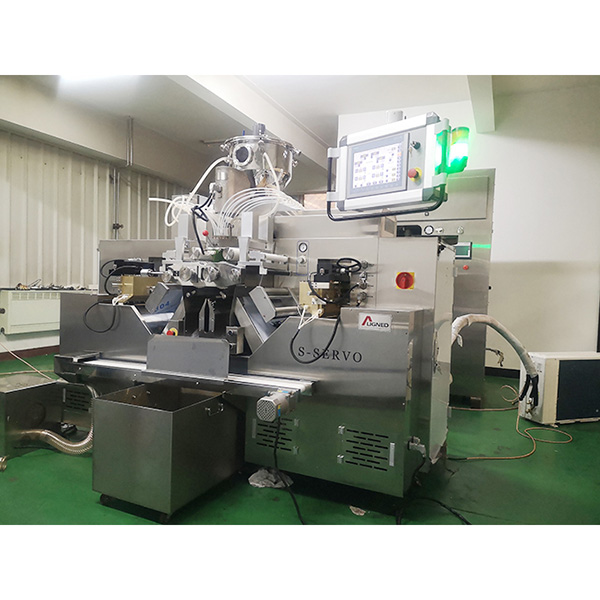

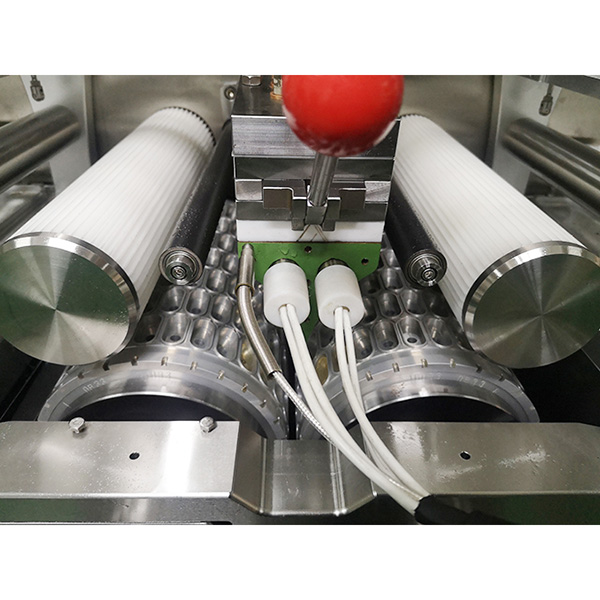

YWJ Series Soft Gelatin Encapsulation Machine

Short Description:

Integrated the latest global encapsulation technology with our gelatin encapsulation experience, YWJ fully automatic soft gelatin encapsulation machine is a new generation of soft gelatin encapsulation machine that has extremely large productivity (the largest in the world).


Product Detail

Product Tags

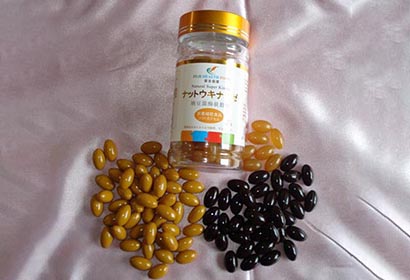

YWJ Series Soft Gelatin Encapsulation Machine8

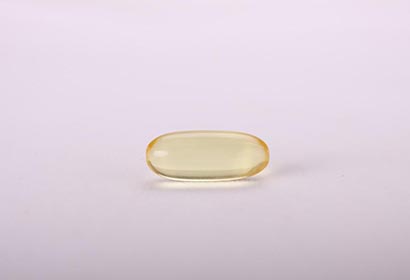

YWJ Series Soft Gelatin Encapsulation Machine6

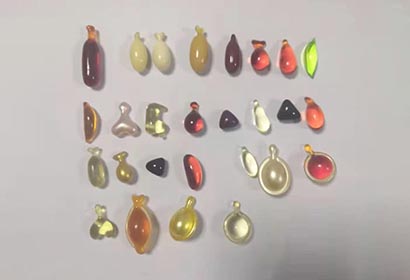

YWJ Series Soft Gelatin Encapsulation Machine57

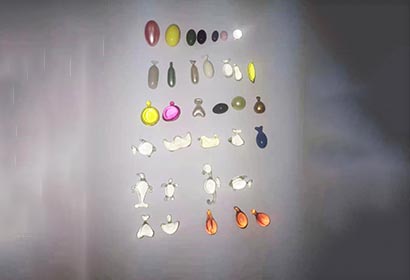

YWJ Series Soft Gelatin Encapsulation Machin7

Product Description

Integrated the latest global encapsulation technology with our gelatin encapsulation experience, YWJ fully automatic soft gelatin encapsulation machine is a new generation of soft gelatin encapsulation machine that has extremely large productivity (the largest in the world).The new soft gelatin encapsulation manufacturing facility features leading technoligy, simple but beautiful appearance, and it is another excellent product by our company for soft gelatin capsule clients around the globe.

Technical Parameters

Model YWJ100 YWJ200 YWJ250-lll YWJ315
Dimensions Of Rolling Mound Φ80x100mm Φ113x200mm Φ150x250mm Φ157x100mm
Mould Cavity(8#OV) 90pill 260pill 504pill 629pill
Rotating Speed Of Rolling Mould 0-5rpm 0-5rpm 0-8rpm 0-5rpm
Single Plunger Feeding Volume 0-1.5ml 0-2ml 0-2ml 0-2ml
Plunger Number 6 14 20 24
Loading Accuracy ± 1.5% ± 1.5% ± 1.5% ± 1.5%
Capacity 21800 62400 205800 150960
Whole Machine Powder 5kw 12kw 12kw 12kw
Weight 400kg 1300kg 1500kg 1500kg
Overall Dimension 1400x620x1350mm 200x910x1900mm 2200x1000x1900mm 2100x1130x1900mm
