ZD-2200 Full Automatic Toilet Tissue And Kitchen Towel Rewinding Machine

Short Description:

This is the Complete production line for toilet paper and kitchen towel. From the rewinding machine, cutting machine to packing machine.This equipment is adjustable to meet the requested finished product of toilet paper and kitchen towel. This model is the ideal equipment for paper making factory and paper converting factory.This equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 200-250M/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.We have 1400mm,1500mm,1800mm,2000mm,2200mm,2800mm,3000mm and so on , we have different machines to meet different budget, not only for big companies but also for small business. FOB Price: US $34000-45000 / Piece


Product Detail

Product Tags

This is the Complete production line for toilet paper and kitchen towel. From the rewinding machine, cutting machine to packing machine.

This equipment is adjustable to meet the requested finished product of toilet paper and kitchen towel. This model is the ideal equipment for paper making factory and paper converting factory.

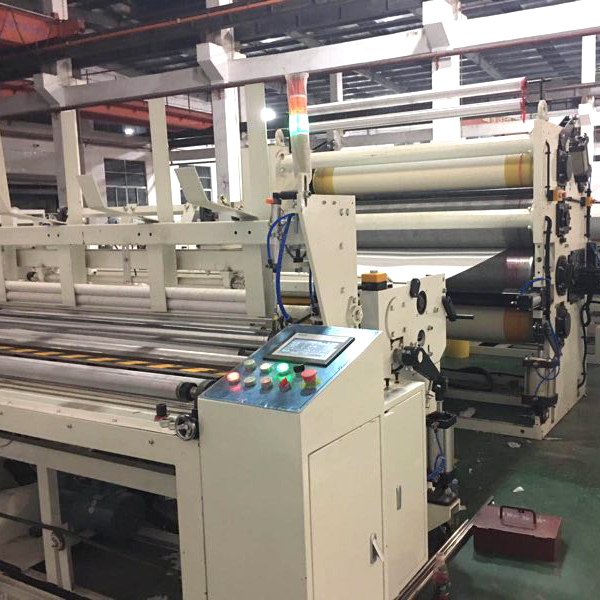

It has HMI, Chinese-English switch; synchronous frequency conversion drive;electrics and photo. It is equipped with whole trouble information.

1.Adopt PLC control system, it’s easy to operate.

2.When the core unit can not detect core or core will use up, the machine will alarm to tell operator or workers to put some cores on the core bracket.3.Degree of tightness can be adjusted while a log is rewinding.It can produce different degree of tightness in one log.

4.When a log is rewinding,the next core is ready.

5.When the finished log come to tail sealer, trimming, glue spraying and sealing can be finished at the same time.

6.Embossing unit and glue lamination,edge embossing unit,printing system is order by customer.

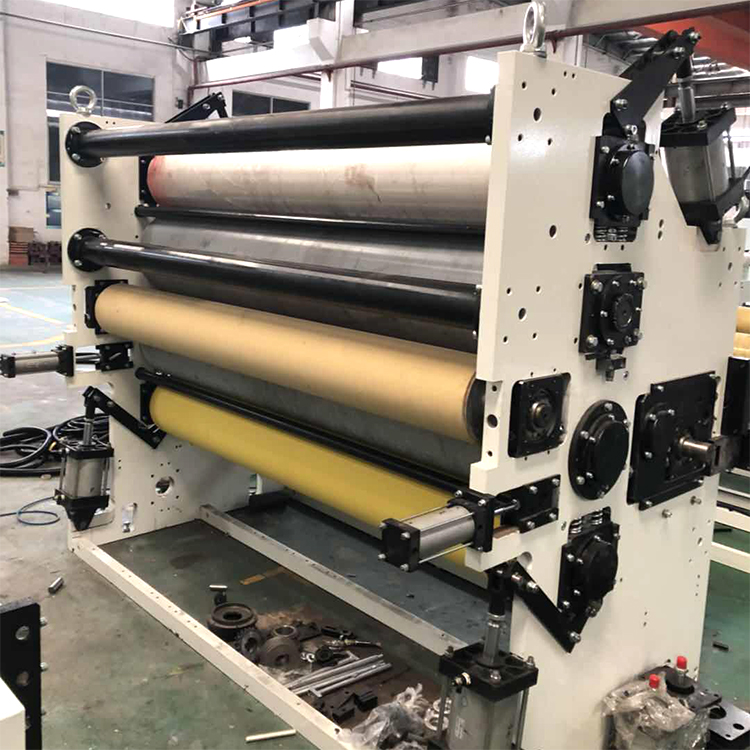

7.Independent wall-type backstand, stucture is simpler and stronger, easy to clean.

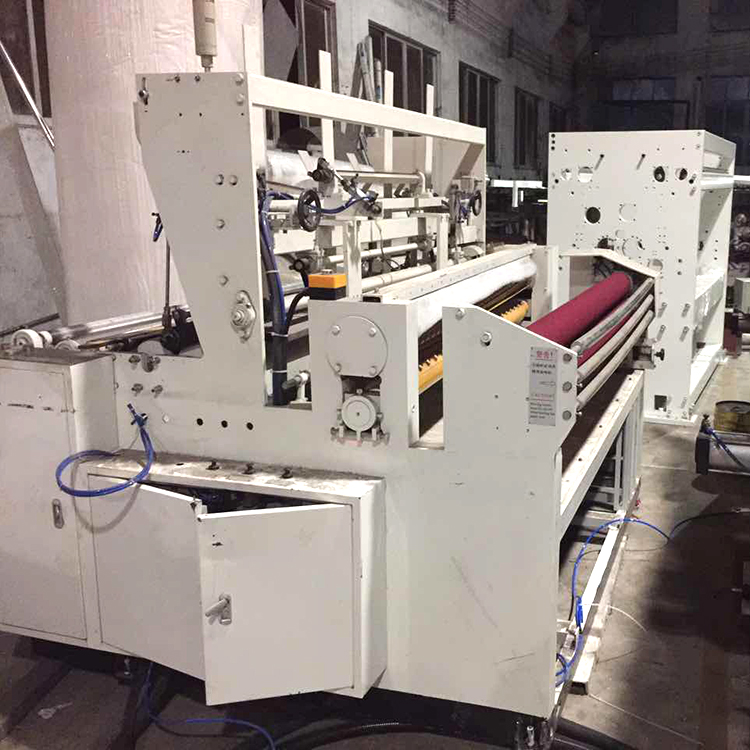

Automatic Rewinding machine

1. When the core unit can not detect core or core will use up, the machine will alarm to tell operator or workers to put some cores on the core bracket.
2. Degree of tightness can be adjusted while a log is rewinding.It can produce different degree of tightness in one log.
3. When a log is rewinding,the next core is ready.
4. When the finished log come to tail sealer, trimming, glue spraying and sealing can be finished at the same time.
5. Embossing unit and glue lamination,edge embossing unit,printing system is order by customer.

2

Rewinding Machine
Model 1400/1500/1800/2000/2800/2900/3000mm
Jumbo roll width 1350/1450/1750/1930/2150/2750/2850/2950mm
Jumbo roll diameter ≤ 1200mm (other size to be specified)
Jumbo roll core size Dia:76mm (other size to be specified)
Finished roll diameter Dia:60-130mm(Tightness is adjustable)
Finished roll core diameter Dia:32-50mm
Perforation width Standard size:110mm(Adjustable)

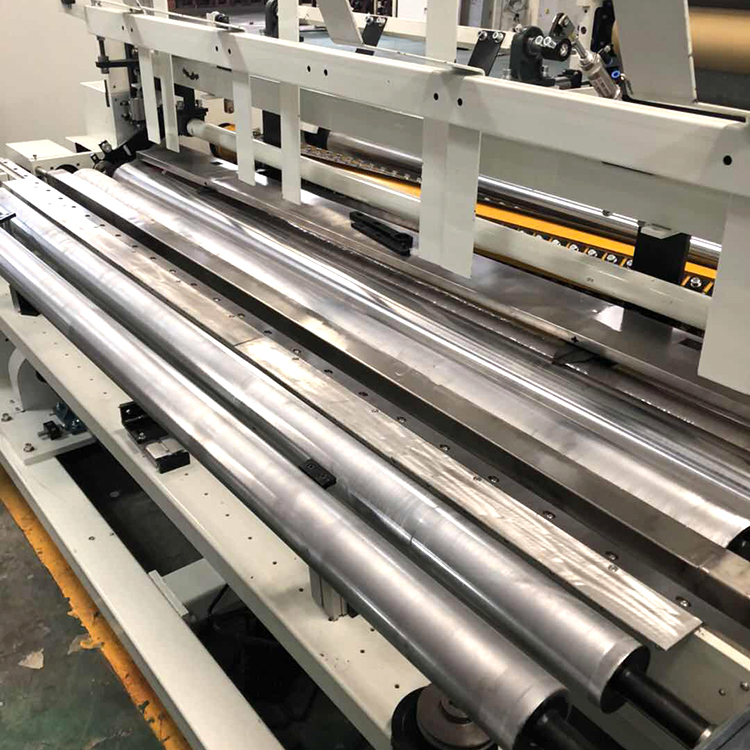

Perforation 4 PCS sprial upper perforation knives,improve the durability
Rewind type Automatic rewinding machine

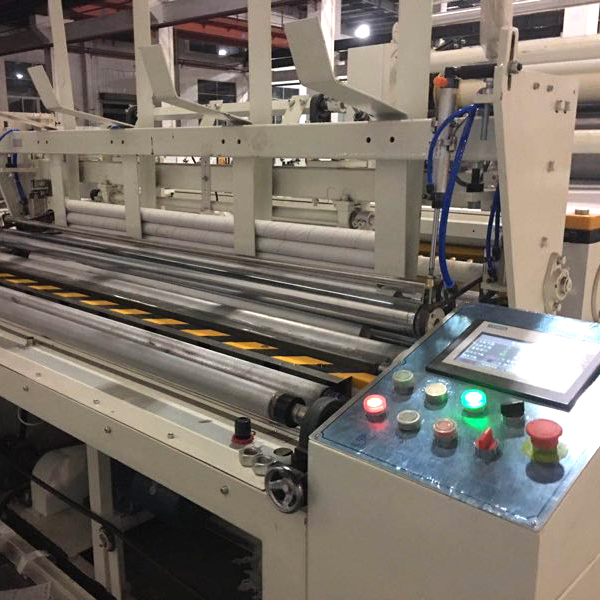

Parameter set Touch Screen HMI
Rewind system With core and coreless integrated
Control system Siemens PLC,inverter,etc.
Machine speed 200-250m/min

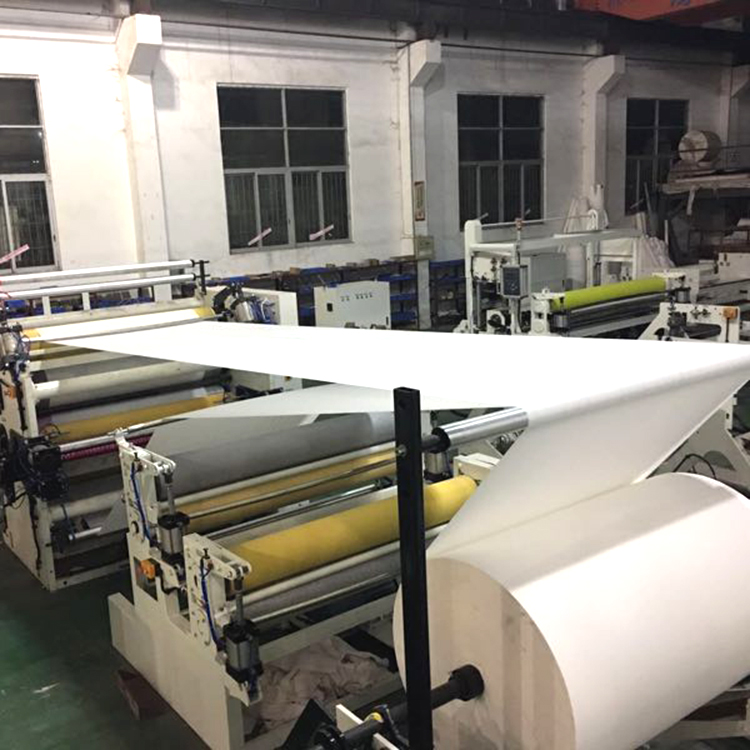

Backstand 1-4 ply (to be confirm by client), independent drive
Edge embossing unit Steel to steel

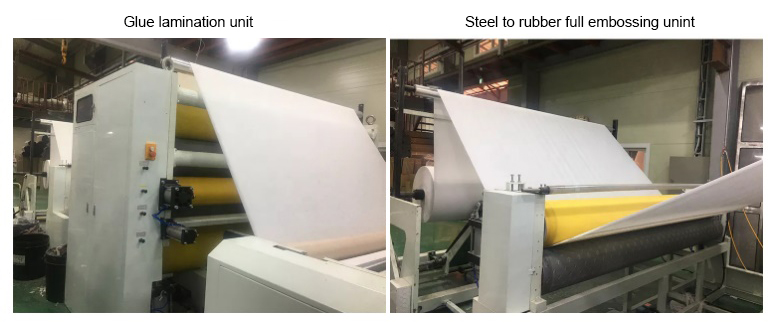

Glue Lamination unit Available (to be confirm by client)

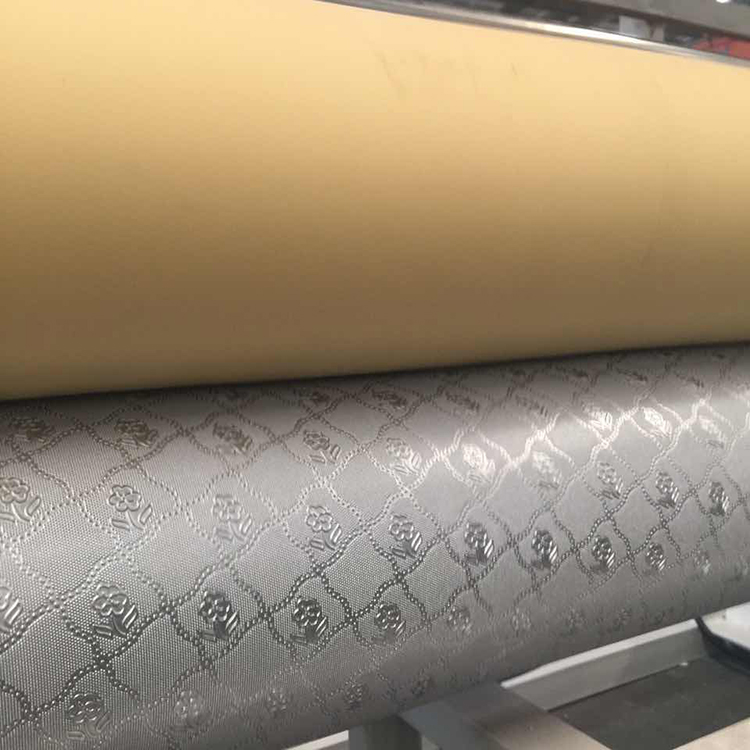

Embossing unit Steel to steel, steel to rubber (to be confirm by client)

1647063589(1)

Company Information

LIUZHOU FEXIK INTELLIGENT EQUIPMENT CO.,LTD is a professional manufacturer and exporter of tissue paper machinery in China, dedicating to whole complete automatic household tissue production line equipment from raw paper to finished package. Our products include toilet rolls,packing machine,kitchen towel packaging machine,facial tissue packing machine,toilet paper and kitchen towel production line,facial tissue and hand towel production line,which are exported to middle east Asian countries,Americas,Europe and Africa.

FEXIK company covers an area of 20,000 square meters, which is divided into official area, parts processing centre, spare parts assembly line, whole machine assembly center and finished machine testing center.

We have been committing to research and innovation for many years.We have a team of professional designers, so that all the machines of FEXIK are independently researched and designed. Our company has a number of national invention patents,and have passed the international certification CE, ISO9001. These innovations are dedicated predominantly to the tissue paper converting and packaging machinery. We can design a whole line solution for clients from rewinding, cutting, packaging, conveying and stacking–CAD.Product design is able to adapt to the global market packaging. Packaging design can be customized according to clients’ requirement.Improve product technical performance to promote production stability, thereby our machines can reduce product loss and energy consumption. Efficient and orderly production process and numerous high-precision processing equipment can ensure that products are delivered on time with quality and quantity.

We uphold the principle of quality first, customer supreme, scientifically management, striving for famous brand. We export tissue paper machinery around the world, not only can provide high quality products for customers, but also can provide customized products. FEXIK company will continue to enhance its core competitiveness, optimize product structure, improve management mechanisms and actively introduce technical personnel. With strong technical strength. We continually commit to design, develop, and promote our products, which not only can provide customers with high-quality products, but also provide with customized products.

A_9

Certifications

We focus on research and innovation for many years. With full independent intellectual property rights, FEXIK Machinery has passed international certification I S O 9 0 0 1 and many national invention patents. We have full independent intellectual property rights.

1646290321(1)

Exhibition

As an exhibitor, we are so glad to have the opportunities to showcase our toilet tissue paper roll and kitchen towel roll packaging machine and other household paper production line machines and technology to a broad audience of tissue industry professionals from all over the world.



Our Services

1. One year maintenance service. Damage spare part can be exchanged from our company directly(excluding the easy damaged goods).

2. After one year, we will continue to assist you both on technical problem and the quality level for long-term.

3. We offer the DVD for machine operation and install, the DVD and all manual shipped  together with the machines.

4. We welcome you to offer us the paper sample, we can design the machine in OEM.



Packing And Shipping

0979

FAQ:

1. Are you trading company or manufacturer?

We are a factory, welcome to our factory.



2. Do you provide design?

We can design a whole line solution for clients from rewinding, cutting, packaging, conveying and stacking–CAD, provide the best solutions.



3. How much area the whole production line needs?
The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.



4. Do you offer guarantee for the machine?

Yes, we offer 12 months guarantee for the machine and training how to install and use the machine, If the customer needs, we can also provide overseas after-sales service.



5. Can we use the bags we provide for the machine?

We support sample testing.
