Zirconia Ceramic Foam Filters for Casting Filtration
Technical parameters:
|
Material |
Zirconia |
|
Color |
Yellow |
|
Pore Density |
8-60ppi |
|
Porosity |
80-90% |
|
Refractoriness |
≤1700°C |
|
Bending Strength |
>1.0Mpa |
|
Compression Strength |
>1.2Mpa |
|
Volume-weight |
0.9-1.5 g/cm3 |
|
Thermal shock resistance |
6times/1100°C |
|
Application |
High melting point metal alloys like Steel,Alloy Steel,Stainless Steel etc |
Specification for Steel Casting:
|
Dimensions (mm) |
Zirconia Foam Filter |
|
|
Pouring Rate(kg) |
Filtration Capacity(kg) |
|
|
50×50×22 |
3~5 |
30 |
|
50×75×22 |
4~6 |
40 |
|
75×75×22 |
7~12 |
60 |
|
75×100×22 |
8~15 |
80 |
|
100×100×22 |
14~20 |
100 |
|
Dia 50×22 |
2~6 |
18 |
|
Dia 80×22 |
6~10 |
50 |
|
Dia 90×22 |
8~16 |
70 |

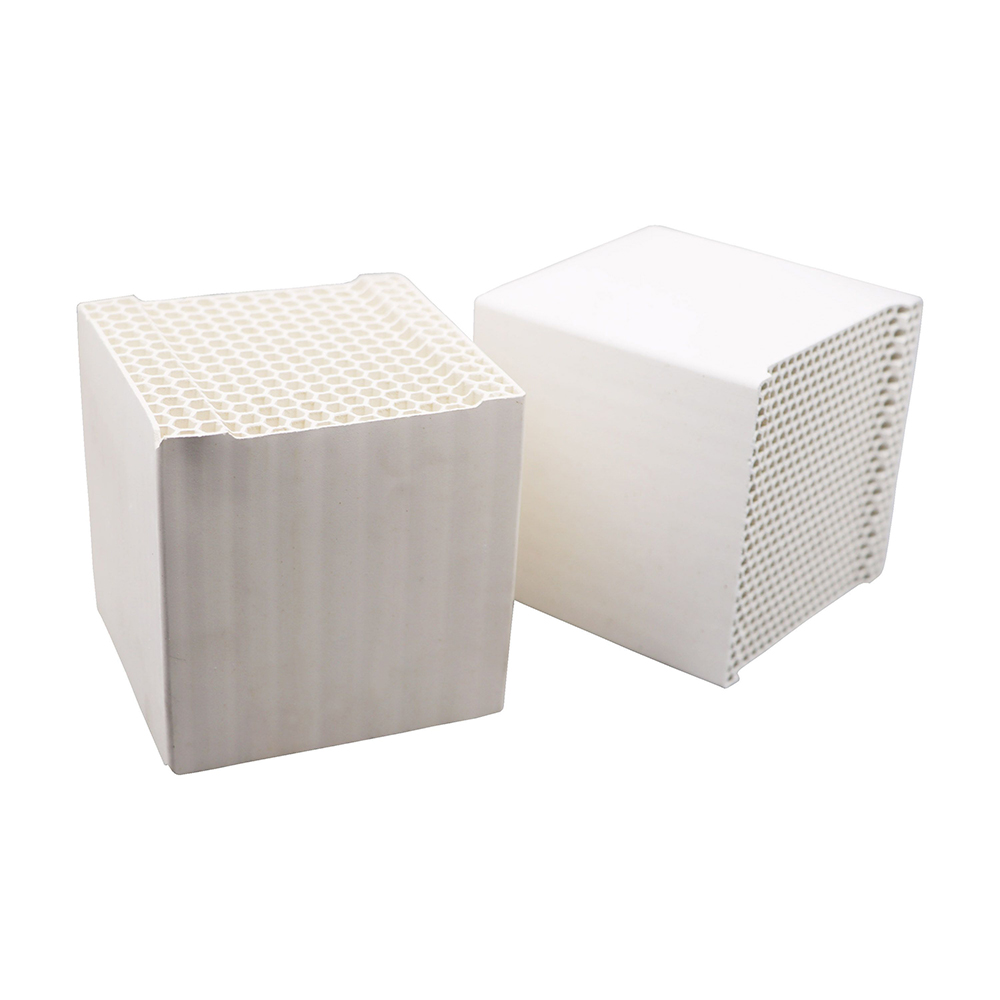

Colorful ceramic foam filter Bacteria culture brick
Physical &chemical properties
| Type | Bacteria culture cube |
| Material | Alumina |
| Applied temperature | ≤1200celsius degree |
| Color | White, yellow , grey, red, etc |
| Bulk Density | 0.35~0.55g/cm3 |
| Bore Density | 10~60PPI |
| Porosity | 80~90% |
| Bending Strength | 0.6Mpa |
| Compression Strength | ≥0.8Mpa |
| Thermal Shock Resistance | Not break after 6 times thermal shock testing |
Common size in round
40*13mm,40*15mm,50*15mm,50*20mm,60*22mm,77*22mm,80*22mm,90*22mm,100*22mm,305*25mm
Common size in square
40*40*13mm,40*40*15mm,50*50*15mm,50*50*22mm,75*75*22mm,50*75*22mm,100*75*22mm,100*100*22mm,55*55*15mm, 150*150*22mm
WHY CHOOSE US
Since its establishment, our factory has been developing first world class products with adhering the principle
of quality first. Our products have gained excellent reputation in the industry and valuabletrusty among new and old customers..
